Ergonomic Clamping Handle - HW171

Product code: HW171
View All Specifications

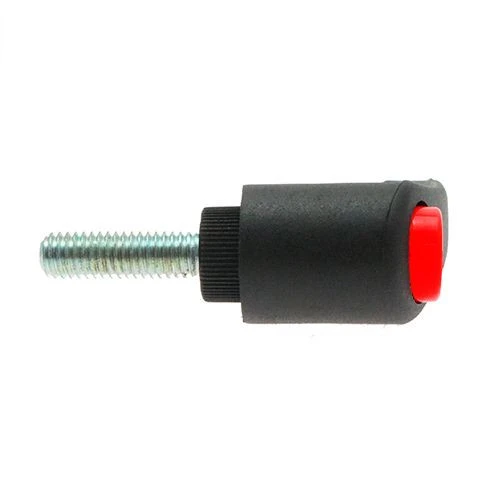

Black M12 x 35mm Ergonomic Clamping Handles

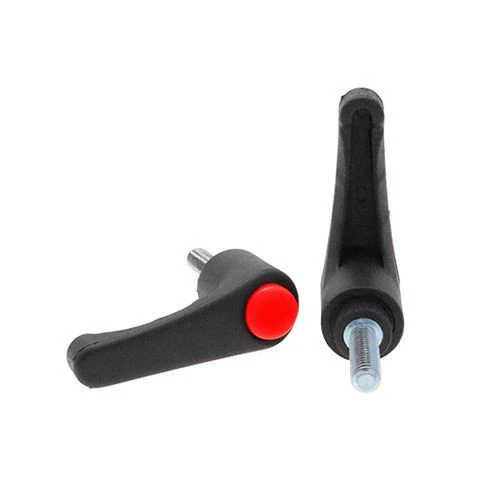

Black M12 x 35mm Ergonomic Clamping Handles

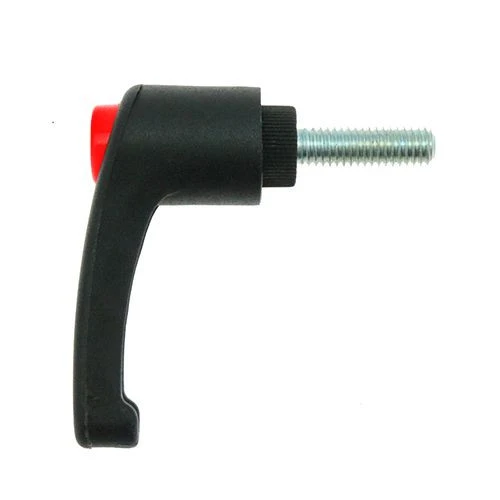

Black M12 x 35mm Ergonomic Clamping Handles

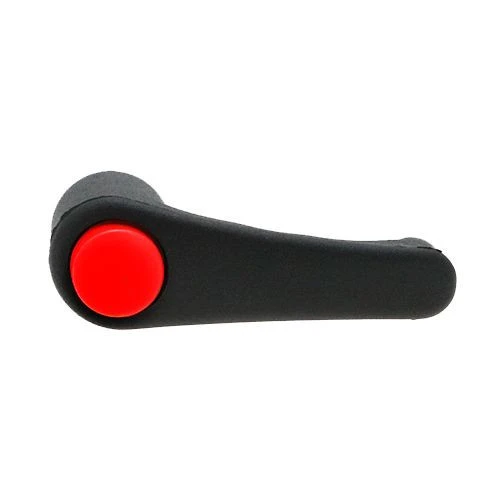

Black M12 x 35mm Ergonomic Clamping Handles

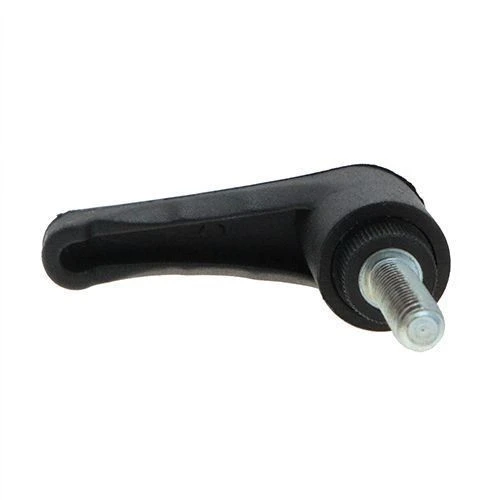

Black M12 x 35mm Ergonomic Clamping Handles
Black M12 x 35mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £4.86 £5.83
10 - 24 £3.95 £4.74
25 - 49 £3.64 £4.37
50 - 99 £3.16 £3.79
100 - 499 £2.55 £3.06
500 + £2.18 £2.62

£5.83 / each


Up to 1 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
1 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M12 x 35mm
Thread Type Male
Handle Length 104mm
Height 56mm
Shank Diameter 24mm
Handle Material Nylon
Thread Material Steel
Handle Colour Black
Button Colour Red

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M12 x 35mm Male Ergonomic Clamping Handle | 104mm Handle | Black/Red Nylon | Steel Thread

Designed for machine building, jigs and fixtures, this M12 x 35mm male ratchet clamping handle uses a male threaded stud to clamp or secure a compatible component. The ergonomic Nylon handle can be repositioned through the indexed mechanism when surrounding equipment limits continuous rotation. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Ergonomic Clamping Handles are hand-operated indexed levers used to clamp, hold or adjust machine components. Their ergonomic profile improves grip during repeated use while the ratchet mechanism lets the handle be repositioned without changing the threaded clamping point.

Different applications may suit other indexed clamping handles, including alternative handle shapes, materials and male or female thread options.

Common Applications

  • Packaging Machinery: Allows guides, stops and adjustable components to be tightened and repositioned by hand.
  • Inspection Fixtures: Provides repeatable clamping for gauges, test rigs and adjustable checking equipment.
  • Workshop Machinery: Secures suitable guards, brackets and accessories where regular hand adjustment is required.
  • Assembly Equipment: Supports quick manual clamping on suitable fixtures, locators and production aids.

M12 x 35mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M12 x 35mm
  • Thread Type: Male
  • Handle Length: 104mm
  • Height: 56mm
  • Shank Diameter: 24mm
  • Handle Colour: Black
  • Button Colour: Red
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • 56mm overall height defines the installed handle profile.
  • Black Nylon handle with Red button gives the specified colour combination.
  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • M12 x 35mm male thread provides the specified connection for the clamping assembly.

Browse more male ergonomic clamping handles to compare male and female threads, handle lengths, colours and thread materials. If you need help selecting the correct handle, call us on 01233 713581.
