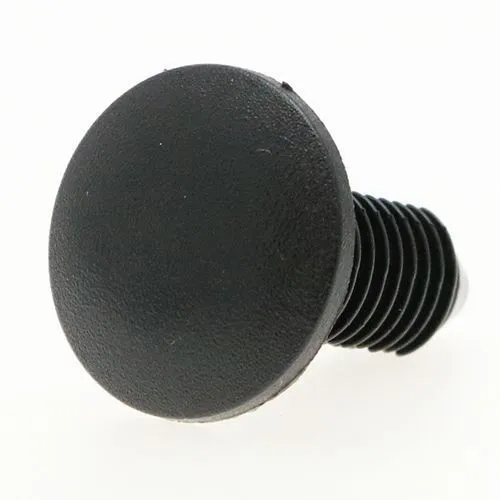

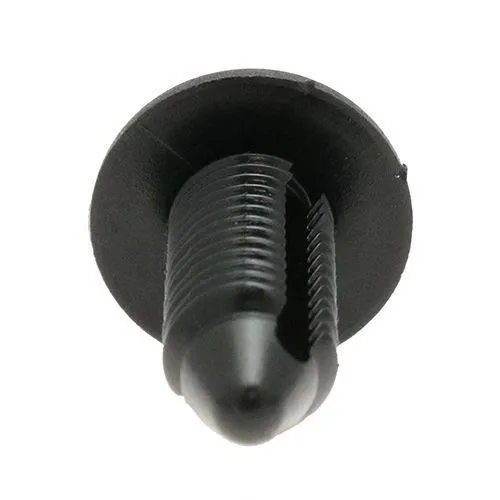

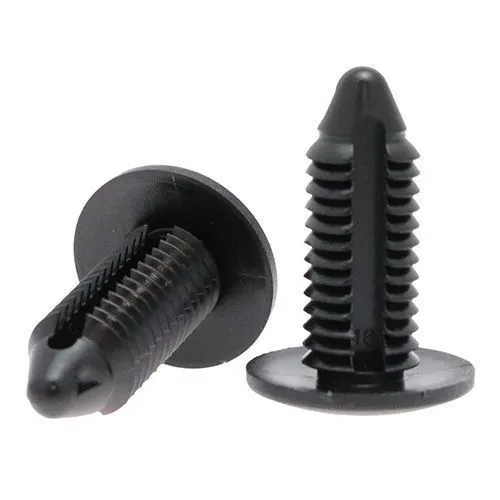

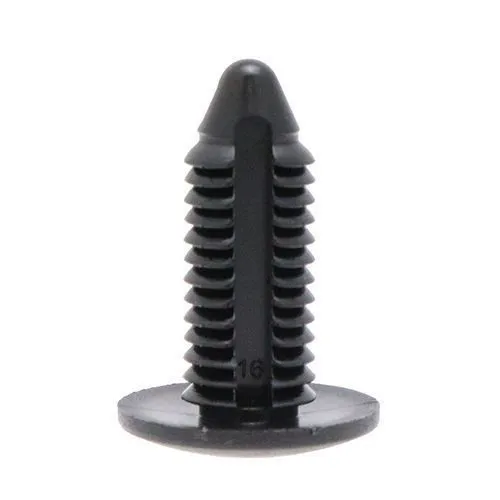

6.35mm x 8.6mm Fir Tree Clip (2.1mm-4.3mm Panel Thickness) Black | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.23 | £0.27 |
| 100 - 499 | £0.17 | £0.20 |
| 500 - 999 | £0.14 | £0.17 |
| 1000 - 4999 | £0.07 | £0.09 |
| 5000 + | £0.07 | £0.08 |
Product Specification
| Hole Diameter | 6.35mm |
| Min Panel Thickness | 2.1mm |
| Max Panel Thickness | 4.3mm |
| Length | 8.60mm |
| Head Diameter | 8.0mm |
| Head Height | 1.0mm |
| Material | Nylon |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
6.35mm x 8.6mm Fir Tree Plug (2.1mm-4.3mm Panel Thickness) | Black Nylon
Suitable for quick panel assembly, this black fir tree fastener is designed for signage frame assembly with a 6.35mm hole diameter and 8.6mm length, with a 8mm head diameter. The ribbed profile helps the plug bite into the hole as it is pressed into position.
The barbed fir tree profile the low profile domed head helps cover the hole neatly while spreading pressure across the visible face, while the domed head helps cover the drilled hole on the front face. It is best used where a permanent or difficult-to-remove fixing is preferred over a loose push cap.
Common Applications
- Replacing worn plastic rivets during maintenance work
- Panel retention on agricultural and grounds maintenance equipment
- Fastening inspection covers on commercial equipment
- Fixing automotive interior panels and vehicle body trim

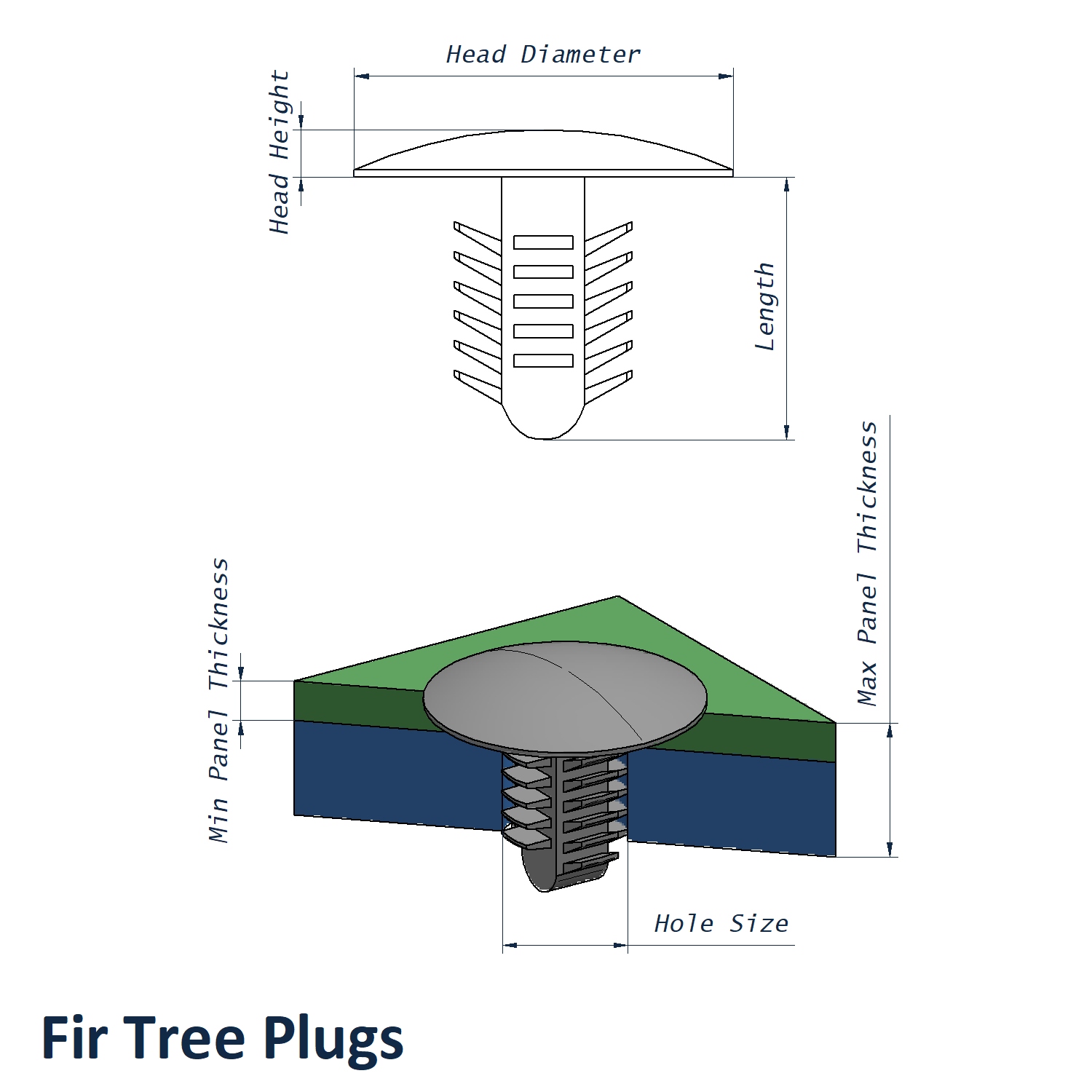

6.35mm x 8.6mm Black Fir Tree Plug Dimensions
- Hole Diameter: 6.35mm
- Min Panel Thickness: 2.1mm
- Max Panel Thickness: 4.3mm
- Length: 8.60mm
- Head Diameter: 8.0mm
- Head Height: 1.0mm
- Colour: Black
- Material: Nylon
Fir Tree Plug Selection Guidance
When selecting a fir tree plug, check the hole diameter, panel thickness range and head diameter against your panel design. These barbed plugs are intended for push-fit installation into prepared holes and are commonly chosen where a secure, low-cost panel fixing is needed.
View our full Fir Tree Plugs range.
Product Support and Trade Orders
For support with blind-hole fixing, panel thickness checks or larger project quantities, call the Vital Parts team on 01233 713581. We can help confirm the most suitable plug for your application before ordering.
