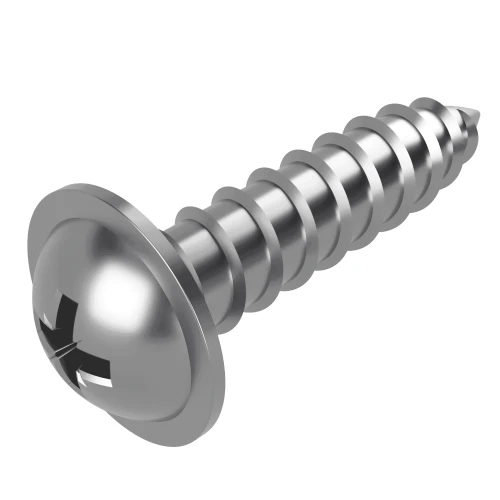

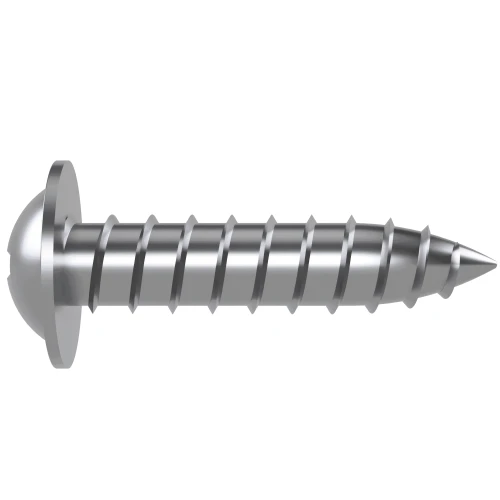

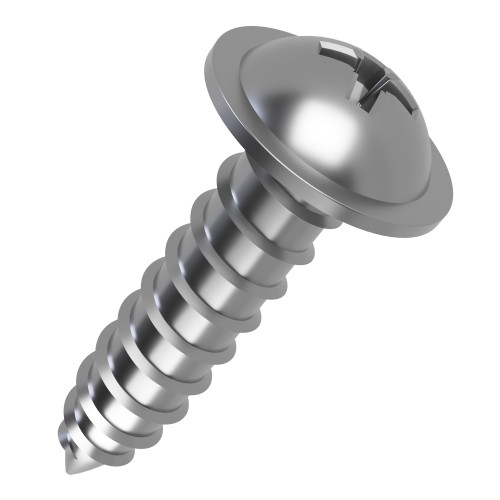

4.8mm x 25mm Flanged AB Self Tapping Screw (BS 4174) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.92 | £1.10 |
| 100 - 499 | £0.44 | £0.53 |
| 500 - 999 | £0.40 | £0.48 |
| 1000 + | £0.33 | £0.40 |
Product Specification
| Thread Size | 4.8mm |
| Length | 25.0mm |
| Material | A2 Stainless Steel |
| Head Diameter | 11.38mm |
| Head Height | 2.90mm |
| End Type | AB |
| Drive | PZ2 |
| Standard | BS 4174 |
Frequently Bought Together
Total Price: £0.00
4.8mm x 25mm Pozi Flange AB Self Tapping Screw BS 4174 | A2 Stainless Steel
Choose this 4.8mm x 25mm Pozi flange screw for assembly work where the fixing must bite cleanly and hold the joint without excessive surface marking.
The A2 Stainless Steel specification suits the intended environment, while the 25mm length gives reach for the selected material thickness and pilot hole depth. The AB end type should be used with a suitable pilot hole for the material being fastened.
Common Applications
- Conveyor side guards
- Metal fascia panels
- Kiosk and terminal housings
- 4.8mm stainless fixing for component mounting plates

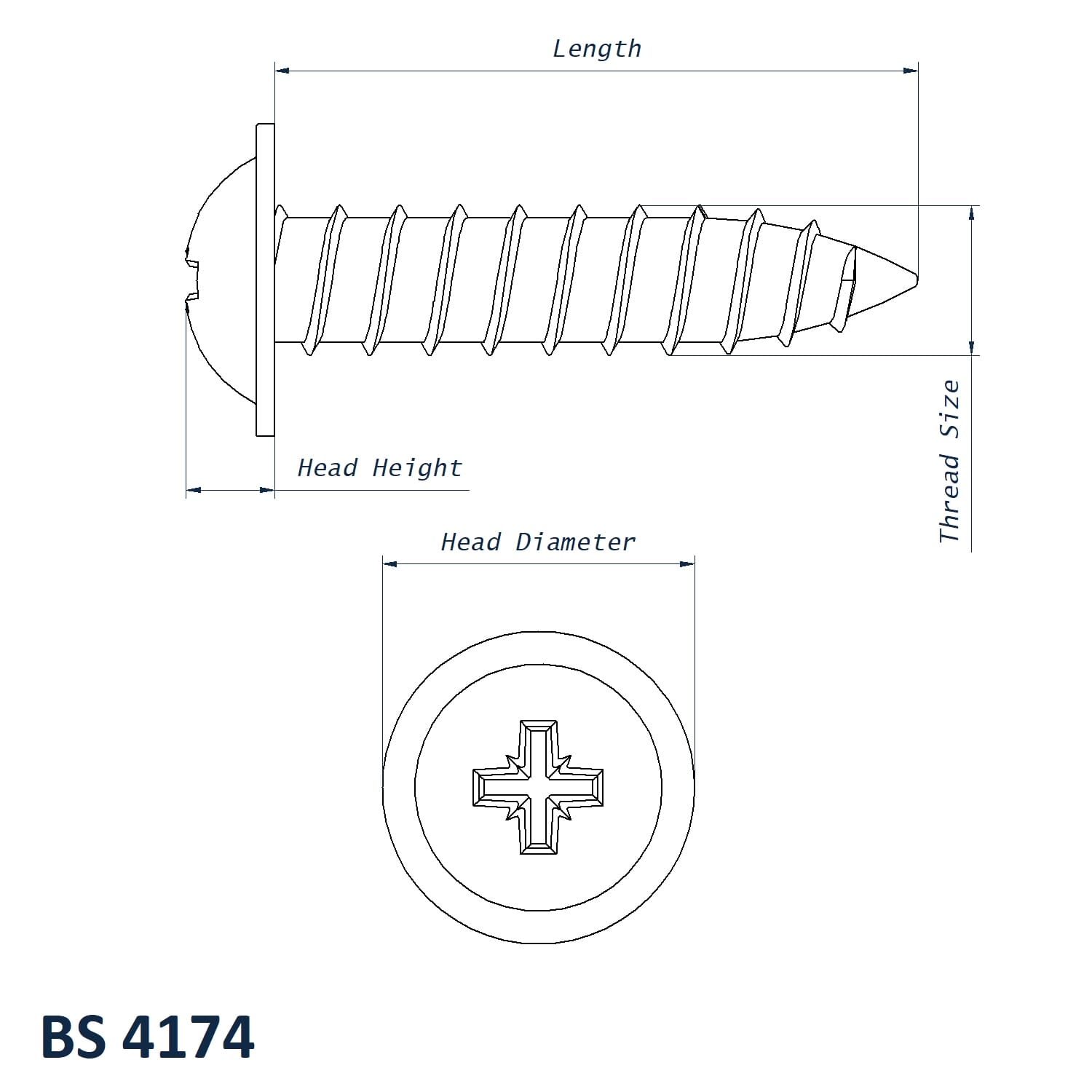

4.8mm x 25mm Pozi Flange Self Tapping Screw Dimensions
- Thread Size: 4.8mm
- Length: 25mm
- Head Diameter: 11.38mm
- Head Height: 2.90mm
- End Type: AB
- Drive: PZ2
- Standard: BS 4174
- Material: A2 Stainless Steel
Self Tapping Screw Buying Notes
Select stainless steel for corrosion resistance, BZP steel for general indoor use or black zinc steel where a darker visible fixing is preferred.
View our full Flanged AB Self Tapping Screws Range.
Explore more Self Tapping Screws for related fastening options.
