4.8mm x 32mm Flanged AB Self Tapping Screw (BS 4174) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.07 | £1.28 |
| 100 - 499 | £0.51 | £0.61 |
| 500 - 999 | £0.47 | £0.56 |
| 1000 + | £0.38 | £0.46 |
Product Specification
| Thread Size | 4.8mm |
| Length | 32.0mm |
| Material | A2 Stainless Steel |
| Head Diameter | 11.38mm |
| Head Height | 2.90mm |
| End Type | AB |
| Drive | PZ2 |
| Standard | BS 4174 |
Frequently Bought Together
Total Price: £0.00

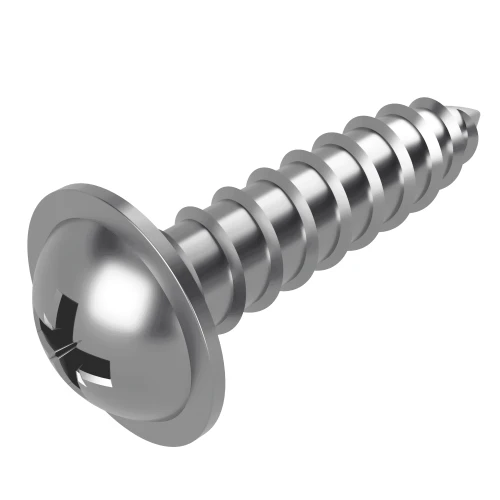

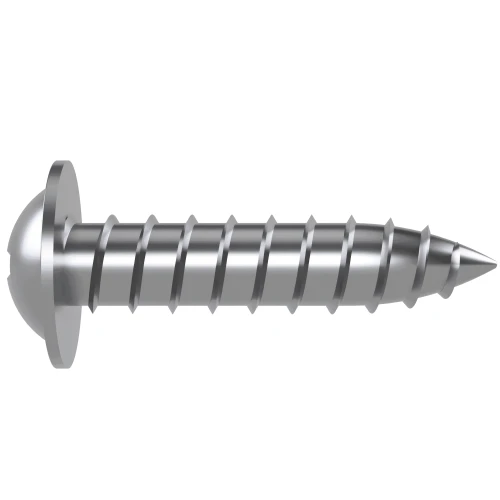

4.8mm x 32mm Pozi Flange AB Self Tapping Screw BS 4174 | A2 Stainless Steel
These 4.8mm x 32mm Pozi Flange AB Self Tapping Screws are made for secure fixing into pre-drilled sheet material where a wider bearing face is needed. It is especially useful when the 11.38mm head diameter is needed for extra bearing coverage.
The head form is useful for spreading load over slotted holes, plastic components and light sheet sections where a small bearing area may mark the surface.
Common Applications
- 4.8mm stainless fixing for fabricated bracket fixing
- Ventilation duct accessories
- Panel mounted clips
- Light gauge sheet metal panels
4.8mm x 32mm Pozi Flange Self Tapping Screw Dimensions
- Thread Size: 4.8mm
- Length: 32mm
- Head Diameter: 11.38mm
- Head Height: 2.90mm
- End Type: AB
- Drive: PZ2
- Standard: BS 4174
- Material: A2 Stainless Steel
Self Tapping Screw Buying Notes
Choose the thread size and length to suit the pilot hole, material thickness and clamping depth. The flange head can spread load across the fixing point without a separate washer in many assemblies.
View our full Flanged AB Self Tapping Screws Range.
Explore more Self Tapping Screws for related fastening options.
