M12 x 50mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.16 | £1.39 |
| 100 - 499 | £1.11 | £1.33 |
| 500 - 999 | £0.97 | £1.17 |
| 1000 + | £0.78 | £0.94 |
Product Specification
| Thread Size | M12 |
| Thread Length | 50mm |
| Pitch | 1.75mm |
| Material | A2 Stainless Steel |
| Across Flats | 16mm |
| Head Height | 11.5mm |
| Flange Diameter | 26.6mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together

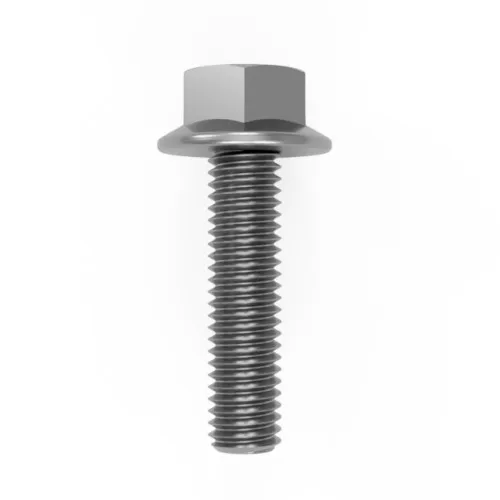

M12 x 50mm Hex (Non Serrated) Flange Bolt (DIN 6921) | Marine Grade A4 Stainless Steel
Total Price: £0.00
M12 x 50mm Flanged Hex Head Bolt (DIN 6921) | A2 Stainless Steel
Use this M12 x 50mm A2 Stainless Steel flanged hex head bolt when fastening light steelwork, rails and support brackets require a hex head fastener with an integral bearing face. The 16mm across flats drive size supports installation with standard tooling.
The hex head and flange combination makes installation straightforward so the fastener can seat cleanly against flat or slotted components. Its 11.5mm head height and 26.6mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Fabricated Steelwork: fastening light steelwork, rails and support brackets.
- Frame Assembly: reduces the need for a separate washer in many flat surface applications.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.
M12 x 50mm Flanged Hex Head Bolt Dimensions
- Thread Size: M12
- Thread Length: 50mm
- Pitch: 1.75mm
- Flange Diameter: 26.6mm
- Head Height: 11.5mm
- Across Flats: 16mm
- Standard: DIN 6921
- Head Style: Flanged Hex Head
- Material: A2 Stainless Steel
Specification Notes
Use the head height and flange diameter together when checking clearance below guards, covers or equipment housings. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
