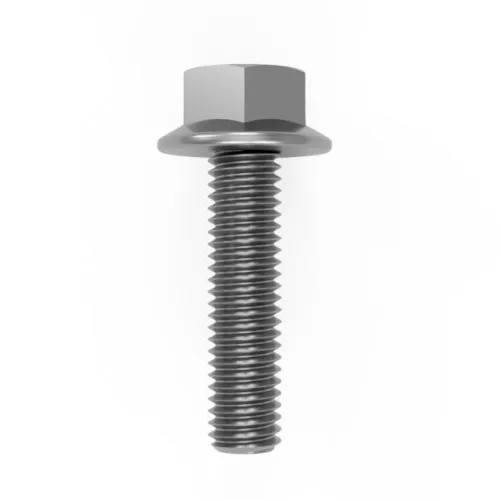

M12 x 80mm Hex (Non Serrated) Flange Bolt (DIN 6921) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £2.23 | £2.67 |
| 100 - 499 | £2.13 | £2.56 |
| 500 - 999 | £1.87 | £2.24 |
| 1000 + | £1.51 | £1.81 |
Product Specification
| Thread Size | M12 |
| Thread Length | 80mm |
| Pitch | 1.75mm |
| Material | A4 Stainless Steel |
| Across Flats | 16mm |
| Head Height | 11.5mm |
| Flange Diameter | 26.6mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M12 x 80mm Flanged Hex Head Bolt (DIN 6921) | A4 Stainless Steel
For automotive fixtures, this M12 x 80mm flanged hex head bolt gives a tidy DIN 6921 fixing with a broad 26.6mm flange under the head. The A4 Stainless Steel construction offers higher corrosion resistance for wet, exposed and chemically demanding locations.
The hex head and flange combination makes installation straightforward so the fastener can seat cleanly against flat or slotted components. Its 11.5mm head height and 26.6mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Automotive Fixtures: fixing brackets, housings and non-critical automotive equipment.
- Frame Assembly: keeps assemblies compact by combining a hex head with a broad flange face.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.
M12 x 80mm Flanged Hex Head Bolt Dimensions
- Thread Size: M12
- Thread Length: 80mm
- Pitch: 1.75mm
- Flange Diameter: 26.6mm
- Head Height: 11.5mm
- Across Flats: 16mm
- Standard: DIN 6921
- Head Style: Flanged Hex Head
- Material: A4 Stainless Steel
Specification Notes
Select the material grade to suit the environment; A4 stainless is better for harsher exposure while BZP steel is best kept to dry or sheltered use. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
