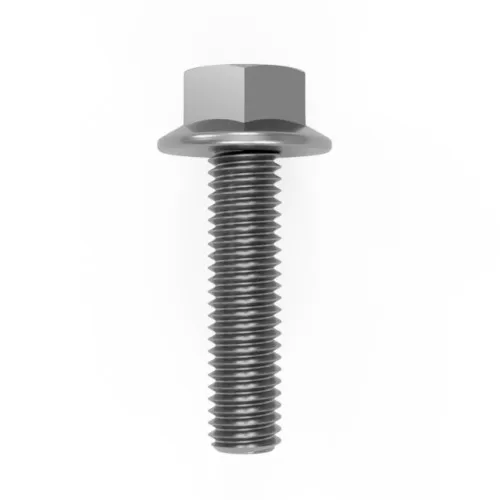

M12 x 35mm Hex (Non Serrated) Flange Bolt (DIN 6921) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.41 | £1.69 |
| 100 - 499 | £1.35 | £1.62 |
| 500 - 999 | £1.18 | £1.42 |
| 1000 + | £0.96 | £1.15 |
Product Specification
| Thread Size | M12 |
| Thread Length | 35mm |
| Pitch | 1.75mm |
| Material | A4 Stainless Steel |
| Across Flats | 16mm |
| Head Height | 11.5mm |
| Flange Diameter | 26.6mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M12 x 35mm Flanged Hex Head Bolt (DIN 6921) | A4 Stainless Steel
This M12 x 35mm DIN 6921 flanged hex head bolt is made for securing brackets, rails and fittings in building service installations. The A4 Stainless Steel body, 1.75mm pitch and 26.6mm flange diameter make it suitable for external frames, marine fittings and processing equipment.
The hex head and flange combination makes installation straightforward so the fastener can seat cleanly against flat or slotted components. Its 11.5mm head height and 26.6mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Construction Fittings: securing brackets, rails and fittings in building service installations.
- Frame Assembly: offers a practical alternative to separate bolt and washer combinations.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.
M12 x 35mm Flanged Hex Head Bolt Dimensions
- Thread Size: M12
- Thread Length: 35mm
- Pitch: 1.75mm
- Flange Diameter: 26.6mm
- Head Height: 11.5mm
- Across Flats: 16mm
- Standard: DIN 6921
- Head Style: Flanged Hex Head
- Material: A4 Stainless Steel
Installation Advice
Check the thread size, thread length and pitch before ordering to ensure the bolt matches the mating nut or threaded hole. Tighten using the correct socket or spanner size and follow the required torque setting for the assembly.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
