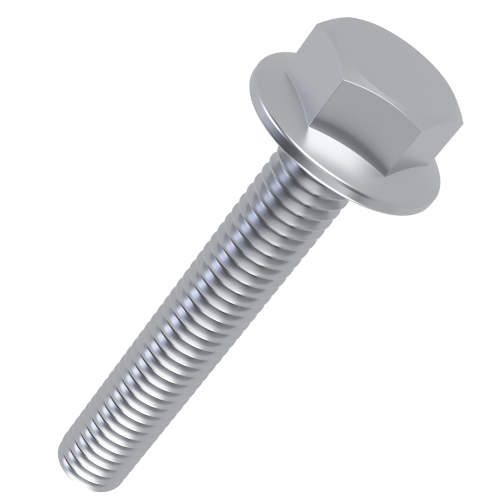

M6 x 10mm Hex (Non Serrated) Flange Bolt (DIN 6921) |8.8 BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.12 | £0.14 |
| 100 - 999 | £0.08 | £0.10 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.06 | £0.07 |
£0.14 / each
Product Specification
| Thread Size | M6 |
| Thread Length | 10mm |
| Pitch | 1mm |
| Material | 8.8 Steel BZP |
| Across Flats | 10mm |
| Head Height | 6.6mm |
| Flange Diameter | 14.2mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M6 x 10mm Flanged Hex Head Bolt (DIN 6921) | 8.8 Steel BZP
This M6 x 10mm DIN 6921 flanged hex head bolt supports mounting internal brackets, rails and panels inside equipment cabinets. The 8.8 Steel BZP body, 1mm pitch and 14.2mm flange diameter make it suitable for machinery, construction brackets and general steelwork.
The built-in washer face helps protect the surrounding surface, making the fixing useful for equipment that sees vibration, routine servicing or repeated adjustment. The 8.8 Steel BZP finish should be matched to the working environment before installation.
Common Applications
- Electrical Cabinets: mounting internal brackets, rails and panels inside equipment cabinets.
- Panel Mounting: reducing the need for loose washers on flat surfaces.
- Workshop Use: keeps hardware compact where access is limited around a fixing point.
- Trade Maintenance: supporting quick specification from thread size and length.

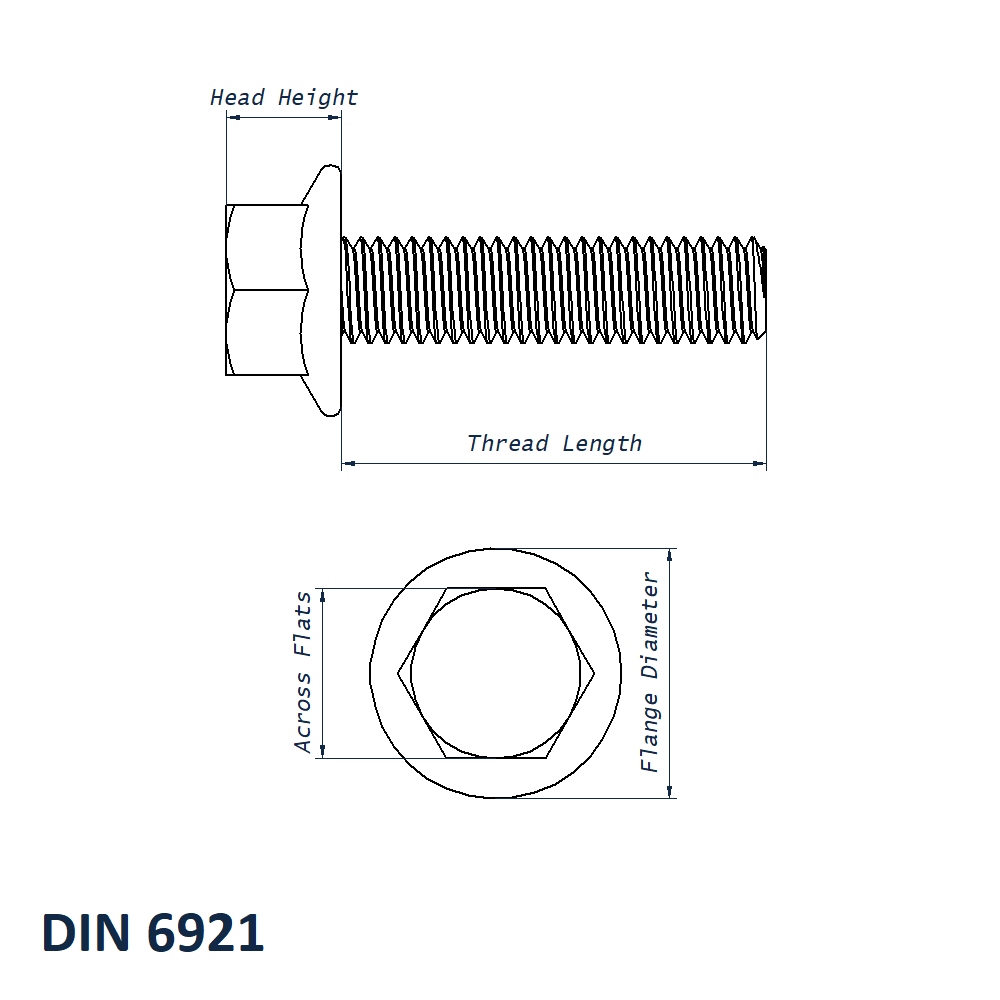

M6 x 10mm Flanged Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 10mm
- Pitch: 1mm
- Across Flats: 10mm
- Head Height: 6.6mm
- Flange Diameter: 14.2mm
- Standard: DIN 6921
- Head Style: Flanged Hex Head
- Material: 8.8 Steel BZP
Installation Advice
Select the material grade to suit the environment; A4 stainless is better for harsher exposure while BZP steel is best kept to dry or sheltered use. Tighten using the correct socket or spanner size and follow the required torque setting for the assembly.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
