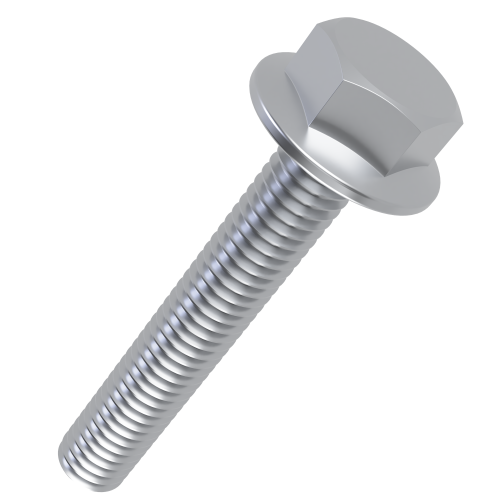

M8 x 12mm Hex (Non Serrated) Flange Bolt (DIN 6921) |8.8 BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.32 | £0.38 |
| 100 - 999 | £0.23 | £0.27 |
| 1000 - 4999 | £0.17 | £0.21 |
| 5000 + | £0.16 | £0.19 |
£0.38 / each
Product Specification
| Thread Size | M8 |
| Thread Length | 12mm |
| Pitch | 1.25mm |
| Material | 8.8 Steel BZP |
| Across Flats | 13mm |
| Head Height | 8.1mm |
| Flange Diameter | 18.0mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M8 x 12mm Flanged Hex Head Bolt (DIN 6921) | 8.8 Steel BZP
For maintenance repairs, this M8 x 12mm flanged hex head bolt gives a tidy DIN 6921 fixing with a broad 18mm flange under the head. The 8.8 Steel BZP construction offers high tensile strength with bright zinc plated surface protection for dry or sheltered use.
The built-in washer face helps protect the surrounding surface, making the fixing useful for equipment that sees vibration, routine servicing or repeated adjustment. The 8.8 Steel BZP finish should be matched to the working environment before installation.
Common Applications
- Maintenance Repairs: replacing worn fasteners on machinery covers and mounting plates.
- Panel Mounting: reducing the need for loose washers on flat surfaces.
- Workshop Use: supports quick installation with common hex tools.
- Trade Maintenance: supporting quick specification from thread size and length.

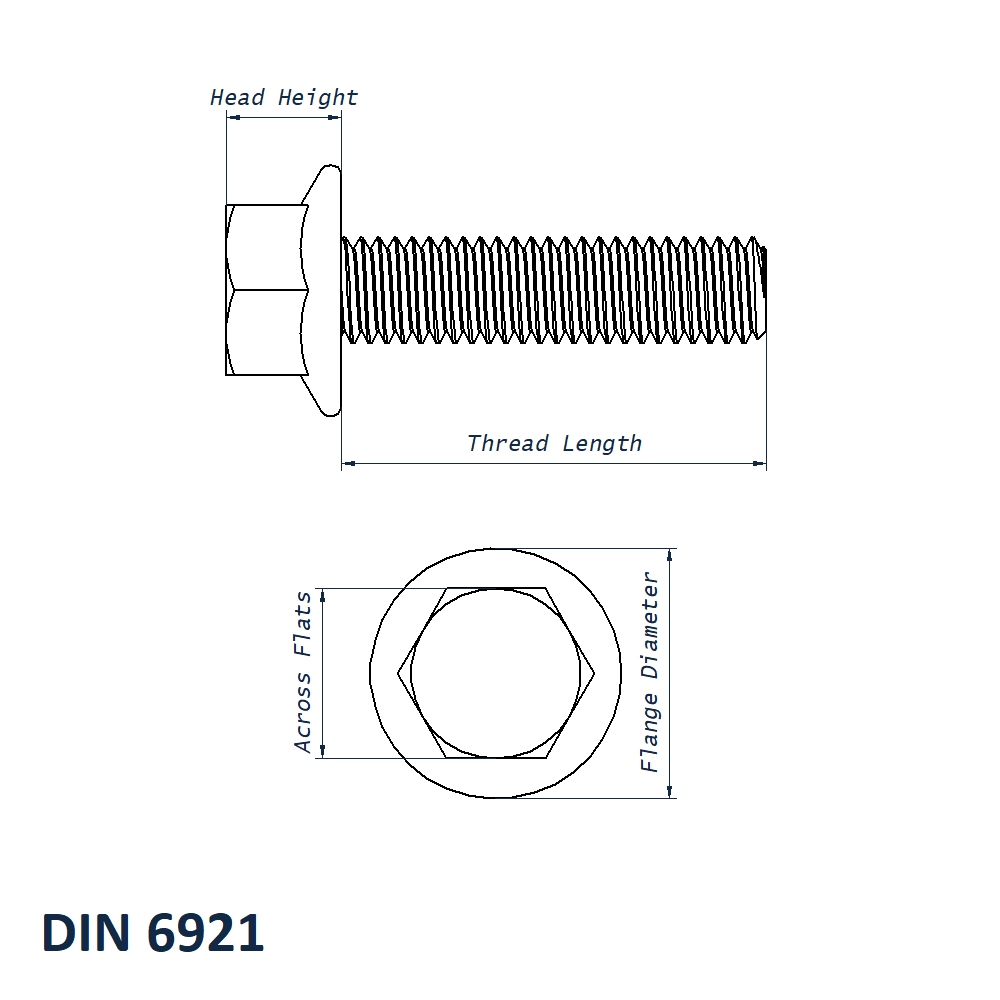

M8 x 12mm Flanged Hex Head Bolt Dimensions
- Thread Size: M8
- Thread Length: 12mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 8.1mm
- Flange Diameter: 18mm
- Standard: DIN 6921
- Head Style: Flanged Hex Head
- Material: 8.8 Steel BZP
Specification Notes
Confirm the flange diameter if the fixing surface is narrow, slotted or close to an edge. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
