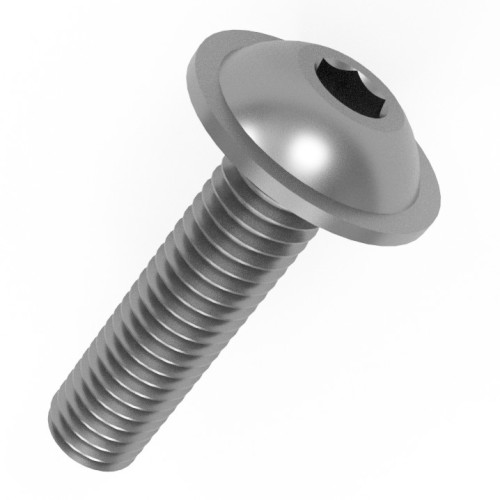

M10 x 30mm Flanged Hex Socket Button Head Screw (ISO 7380-2) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.44 | £0.53 |
| 100 - 499 | £0.40 | £0.48 |
| 500 - 999 | £0.36 | £0.43 |
| 1000 - 4999 | £0.32 | £0.38 |
| 5000 + | £0.27 | £0.32 |
Product Specification
| Thread Size | M10 |
| Thread Length | 30mm |
| Pitch | 1.5mm |
| Flange Diameter | 22mm |
| Head Height | 5.5mm |
| Drive | H6 |
| Standard | ISO 7380-2 |
| Head Style | Button Head |
| Material | A2 |
Frequently Bought Together
Total Price: £0.00
M10 x 30mm Flanged Hex Socket Button Screw ISO 7380-2 | A2 Stainless Steel
Produced for machine assembly work using flanged hex socket fixings, this medium reach flanged hex socket button screw features a M10 thread size, 30mm thread length and 22mm flange diameter for fastening applications where compact machine assembly is required. The integrated flange profile helps improve surface contact during tightening while maintaining a rounded button head finish.
Manufactured to ISO 7380-2 from A2 Stainless Steel, this machine screw includes a 1.5mm thread pitch, 5.5mm head height and H6 hex socket drive for controlled installation into threaded components. The ISO 7380-2 specification supports consistent installation dimensions while supporting use across engineering, fabrication and industrial assembly environments.
Common Applications
- Mechanical and machine assembly work
- Industrial fabrication projects
- Equipment and enclosure fastening
- OEM manufacturing applications

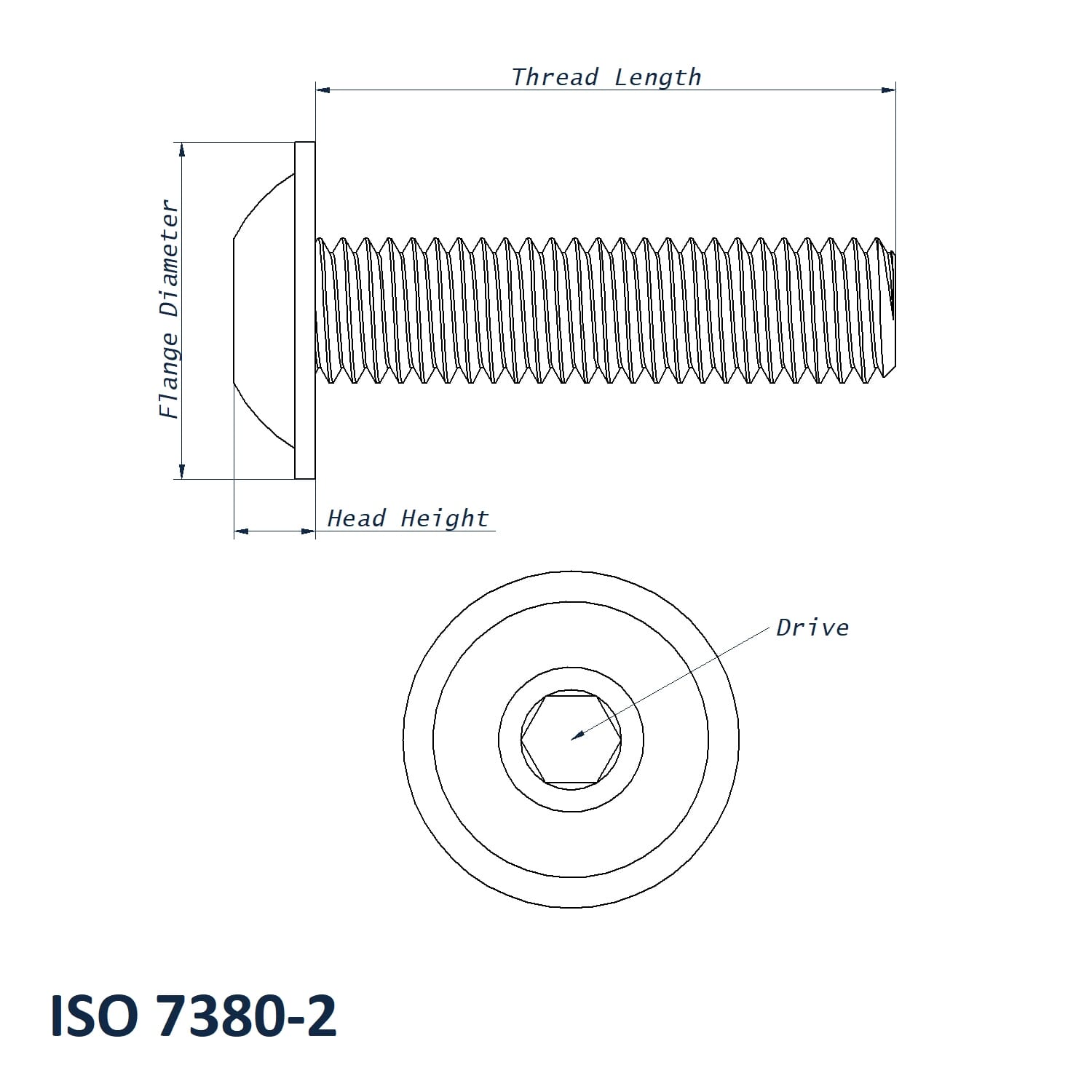

M10 Flanged Hex Socket Button Screw Dimensions
- Thread Size: M10
- Thread Length: 30mm
- Pitch: 1.5mm
- Flange Diameter: 22mm
- Head Height: 5.5mm
- Drive: H6
- Material: A2 Stainless Steel
- Standard: ISO 7380-2
- Head Style: Button Head
View our full Flanged Hex Socket Button Screw range or browse our Button Screw collection.
