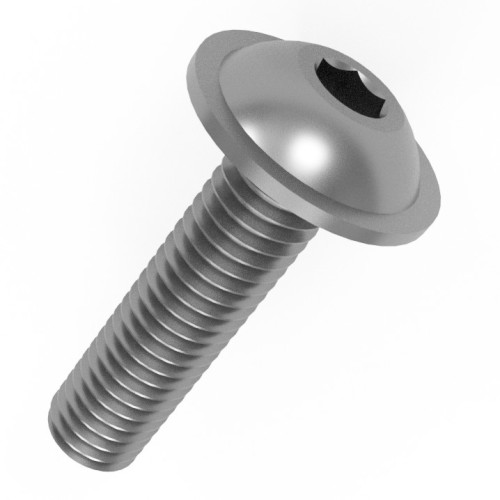

M8 x 25mm Flanged Hex Socket Button Head Screw (ISO 7380-2) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.17 | £0.20 |
| 100 - 499 | £0.15 | £0.18 |
| 500 - 999 | £0.13 | £0.16 |
| 1000 - 4999 | £0.12 | £0.14 |
| 5000 + | £0.10 | £0.12 |
Product Specification
| Thread Size | M8 |
| Thread Length | 25mm |
| Pitch | 1.25mm |
| Flange Diameter | 17.8mm |
| Head Height | 4.4mm |
| Drive | H5 |
| Standard | ISO 7380-2 |
| Head Style | Button Head |
| Material | A2 |
Frequently Bought Together
Total Price: £0.00
M8 x 25mm Flanged Hex Socket Button Screw ISO 7380-2 | A2 Stainless Steel
Developed for applications requiring increased bearing surface support, this medium reach flanged hex socket button screw features a M8 thread size, 25mm thread length and 17.8mm flange diameter for fastening applications where button head screws are needed for visible assemblies. The integrated flange profile helps improve surface contact during tightening while maintaining a rounded button head finish.
Manufactured to ISO 7380-2 from A2 Stainless Steel, this machine screw includes a 1.25mm thread pitch, 4.4mm head height and H5 hex socket drive for controlled installation into threaded components. The button head profile provides a neat rounded finish after installation while supporting use across engineering, fabrication and industrial assembly environments.
Common Applications
- Mechanical and machine assembly work
- Industrial fabrication projects
- Equipment and enclosure fastening
- OEM manufacturing applications

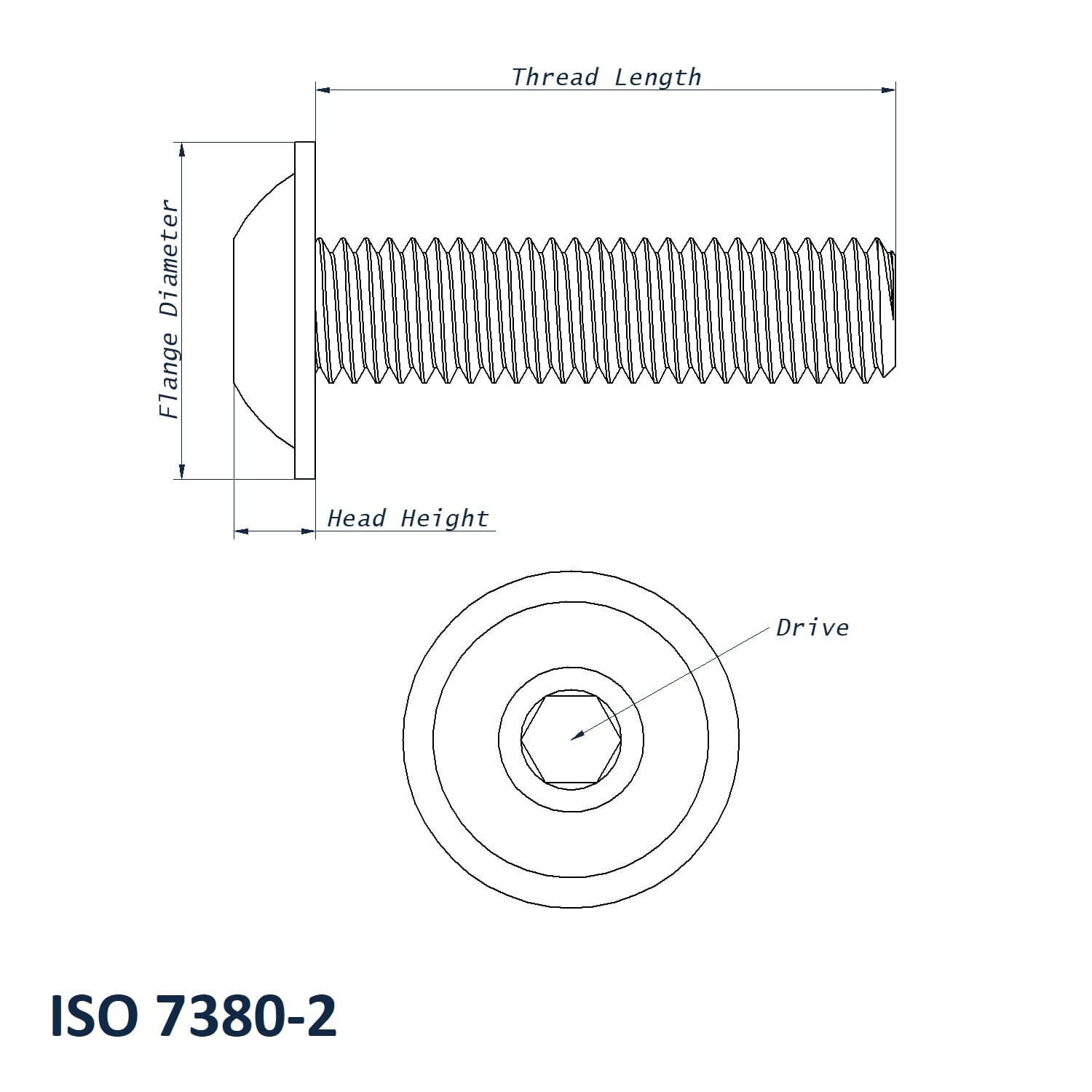

M8 Flanged Hex Socket Button Screw Dimensions
- Thread Size: M8
- Thread Length: 25mm
- Pitch: 1.25mm
- Flange Diameter: 17.8mm
- Head Height: 4.4mm
- Drive: H5
- Material: A2 Stainless Steel
- Standard: ISO 7380-2
- Head Style: Button Head
