Adjustable Metal Feet - ADJ278
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.90 | £1.08 |
| 50 - 249 | £0.75 | £0.90 |
| 250 - 499 | £0.63 | £0.76 |
| 500 - 999 | £0.53 | £0.63 |
| 1000 + | £0.40 | £0.48 |
Product Specification
| Thread Size | M8 |
| Stud Length | 30mm |
| Base Diameter | 40mm |
| Base Style | Bolt Down |
| Weight Rating | 650kg |
| Base Height | 6mm |
| Material | Zinc Plated Steel |
Frequently Bought Together
Total Price: £0.00

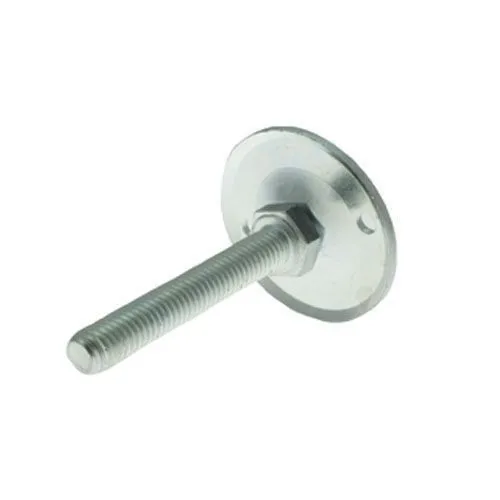

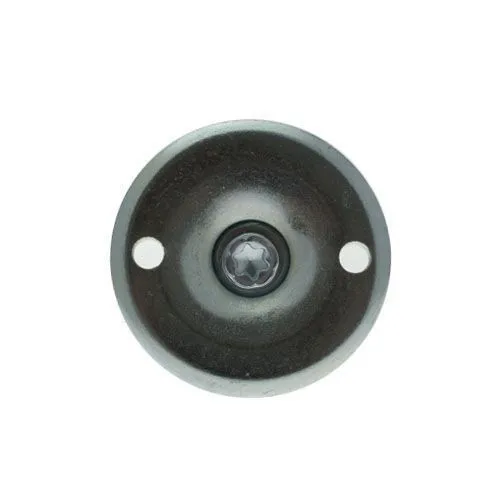

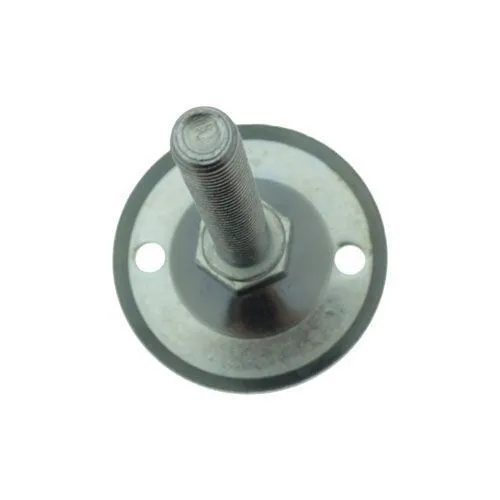

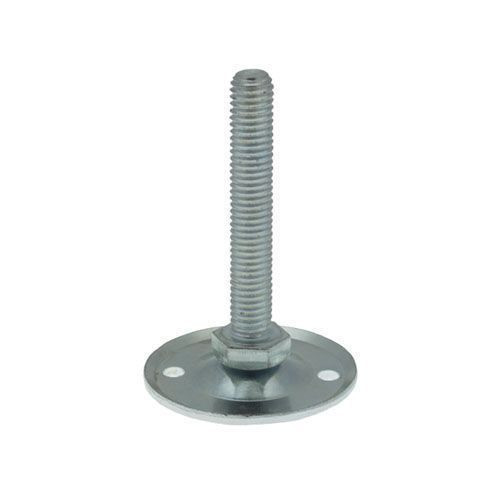

M8 x 30mm Bolt Down Adjustable Metal Foot | 40mm Base Diameter | Zinc Plated Steel
This M8 x 30mm Bolt Down Adjustable Metal Foot is designed for bolt down machinery frames where the base needs an additional fixing point after the equipment has been levelled.
The bolt down layout is useful for equipment that must remain in place, combining vertical adjustment with the security required for fixed machine installations. This bolt down adjustable foot is especially useful where the frame must be positioned, levelled and then fixed through the base for extra security.
Common Applications
- Bolt down machine feet
- Fixed equipment bases
- Anchored support frames
- Machinery installation work

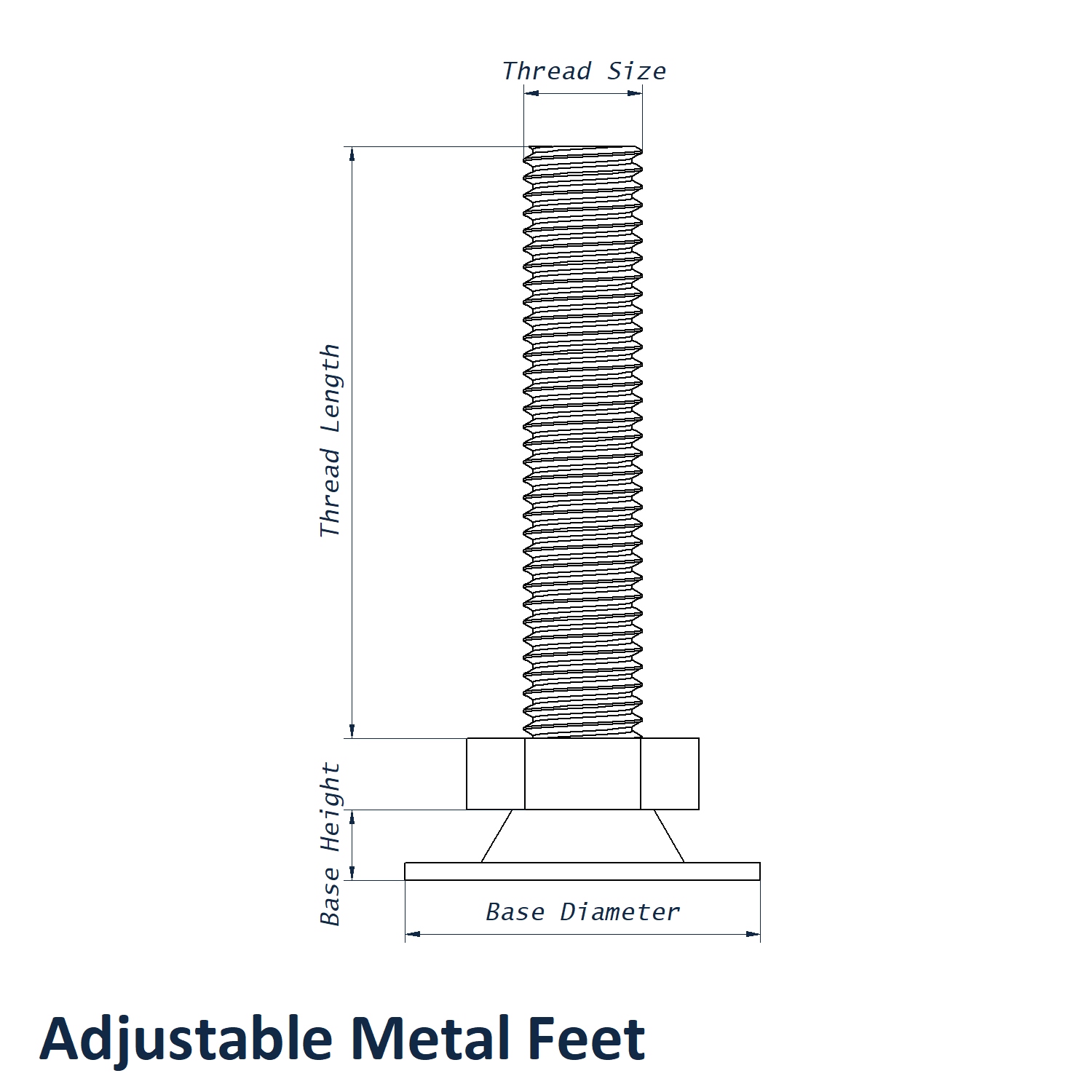

M8 x 30mm Bolt Down Adjustable Metal Foot Dimensions
- Base Diameter: 40mm
- Thread Size: M8
- Stud Length: 30mm
- Base Style: Bolt Down
- Weight Rating: 650kg
- Base Height: 6mm
- Material: Zinc Plated Steel
- Colour: Silver
Commonly Paired with General Metal Adjustable Feet - T Nuts
Perfect for adjustable metal feet where a secure threaded anchor is required in timber, composite panels or furniture assemblies. T Nuts provide a reliable fixing point for threaded feet and help support repeated levelling adjustments.
Click here to view our full range of T Nuts.
View our full range of General Metal Adjustable Feet.
