Adjustable Metal Feet - ADJ279
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.96 | £1.15 |
| 50 - 249 | £0.80 | £0.96 |
| 250 - 499 | £0.68 | £0.81 |
| 500 - 999 | £0.57 | £0.68 |
| 1000 + | £0.43 | £0.52 |
Product Specification
| Thread Size | M8 |
| Stud Length | 50mm |
| Base Diameter | 40mm |
| Base Style | Bolt Down |
| Weight Rating | 650kg |
| Base Height | 6mm |
| Material | Zinc Plated Steel |
Frequently Bought Together
Total Price: £0.00

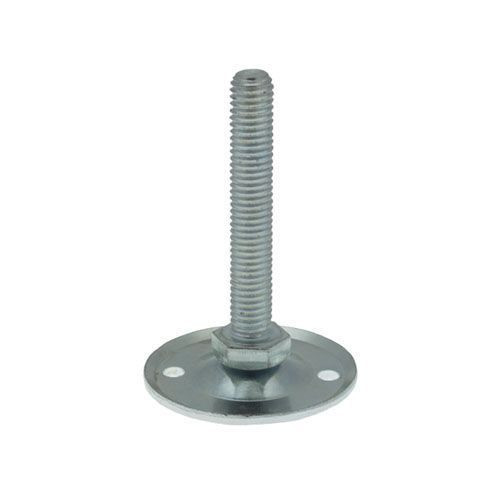

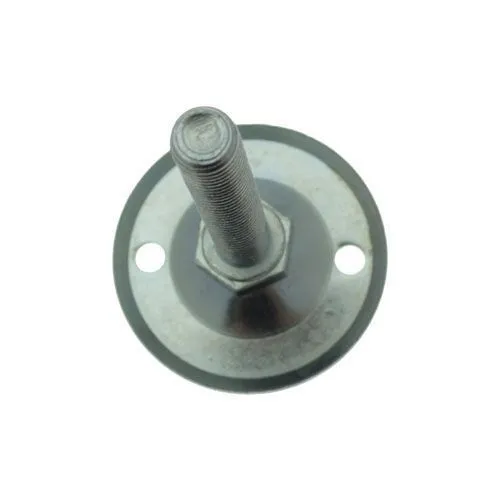

M8 x 50mm Bolt Down Adjustable Metal Foot | 40mm Base Diameter | Zinc Plated Steel
For conveyor sections that need to be secured after alignment, this M8 x 50mm Bolt Down Adjustable Metal Foot offers a bolt down adjustable foot for controlled frame positioning.
The M8 stem allows height adjustment before fixing the base, helping engineers align conveyors, feed rails and transfer sections with fewer packing pieces. This bolt down adjustable foot is especially useful where the frame must be positioned, levelled and then fixed through the base for extra security.
Common Applications
- Secured conveyor legs
- Transfer line supports
- Material flow systems
- Bolted frame feet

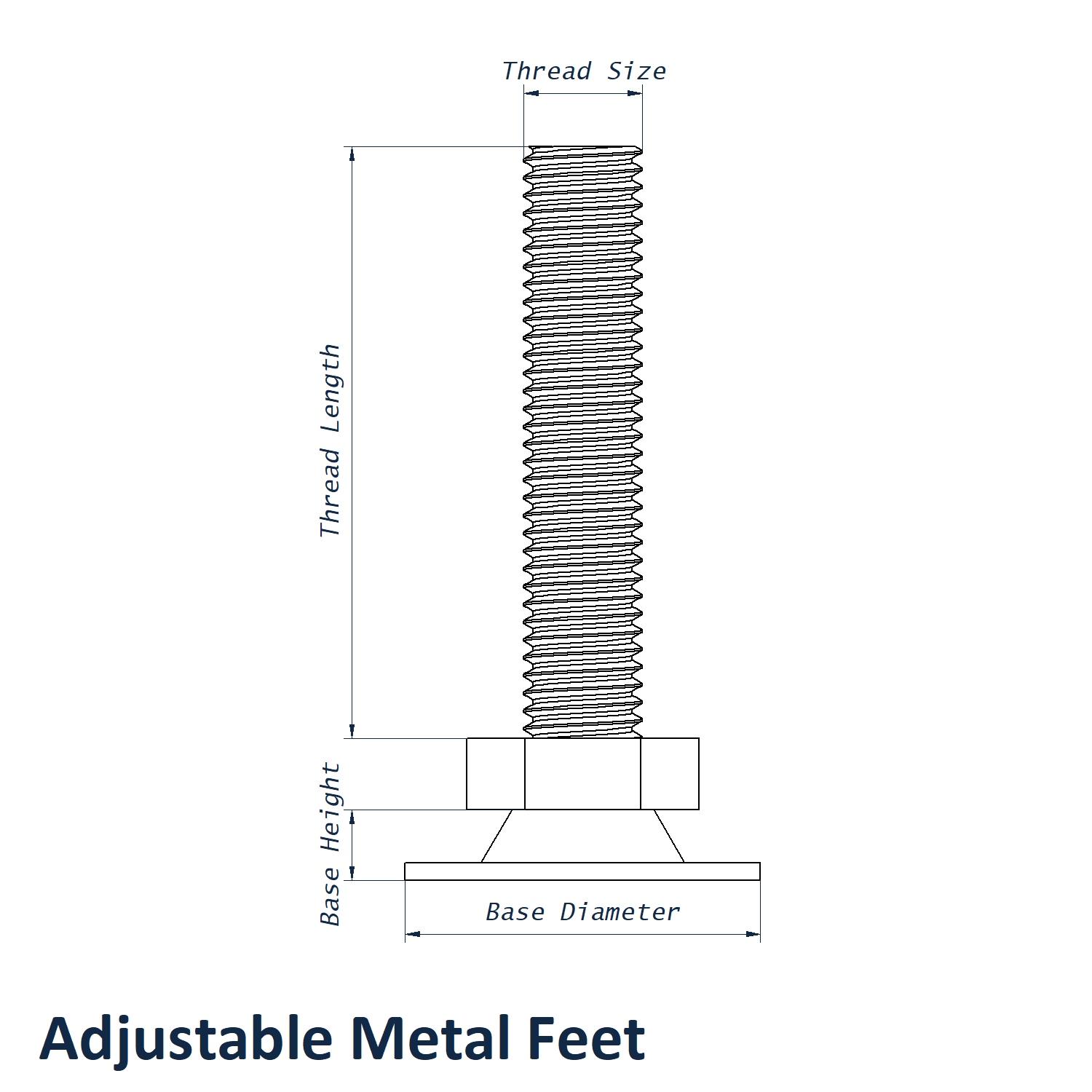

M8 x 50mm Bolt Down Adjustable Metal Foot Dimensions
- Base Diameter: 40mm
- Thread Size: M8
- Stud Length: 50mm
- Base Style: Bolt Down
- Weight Rating: 650kg
- Base Height: 6mm
- Material: Zinc Plated Steel
- Colour: Silver
Commonly Paired with General Metal Adjustable Feet - T Nuts
Perfect for adjustable metal feet where a secure threaded anchor is required in timber, composite panels or furniture assemblies. T Nuts provide a reliable fixing point for threaded feet and help support repeated levelling adjustments.
Click here to view our full range of T Nuts.
View our full range of General Metal Adjustable Feet.
