9.5mm Green Heat Shrink Tubing | 7m
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £6.53 | £7.84 |
| 15 - 49 | £5.60 | £6.72 |
| 50 + | £4.90 | £5.88 |
£7.84 / each
.png)
Product Specification
| Supplied Internal Diameter | 9.5mm |
| Recovered Internal Diameter | 4.75mm |
| Colour | Green |
| Length | 7m |
| Wall Thickness After Recovery | 0.56mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00

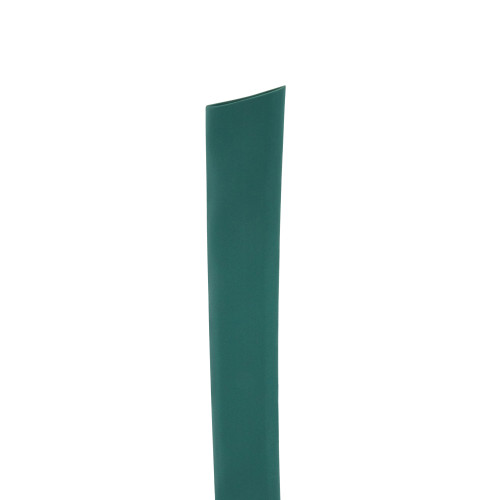

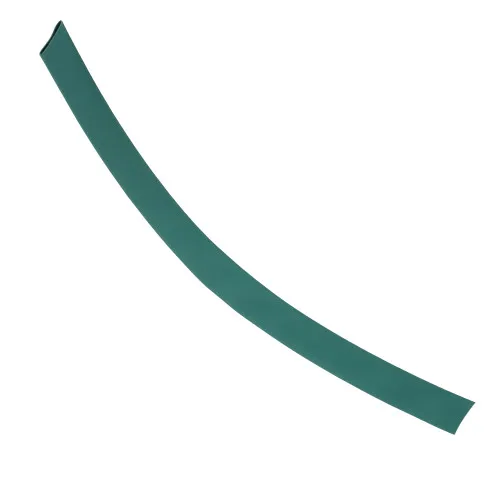

Green 2:1 Heat Shrink Sleeve – 9.5mm x 7m | Polyolefin
For installers needing a controlled shrink fit, this green harness sleeving offers a 9.5mm supplied internal diameter, 4.75mm recovered diameter and 7m usable length.
The sleeve suits areas where a clean, lightweight cable cover is needed without the adhesive layer used on sealed heat shrink products.
What Are Heat Shrink Sleeves?
Polyolefin heat shrink sleeving is widely used across wiring looms, control panels and repair work. It allows installers to add a tidy protective cover without clips, tapes or separate mechanical fasteners.
Common Applications
- DIY electrical repair and hobby projects
- Insulating low voltage wiring
- Neatening small cable assemblies
- Adding colour markers to domestic wiring tasks

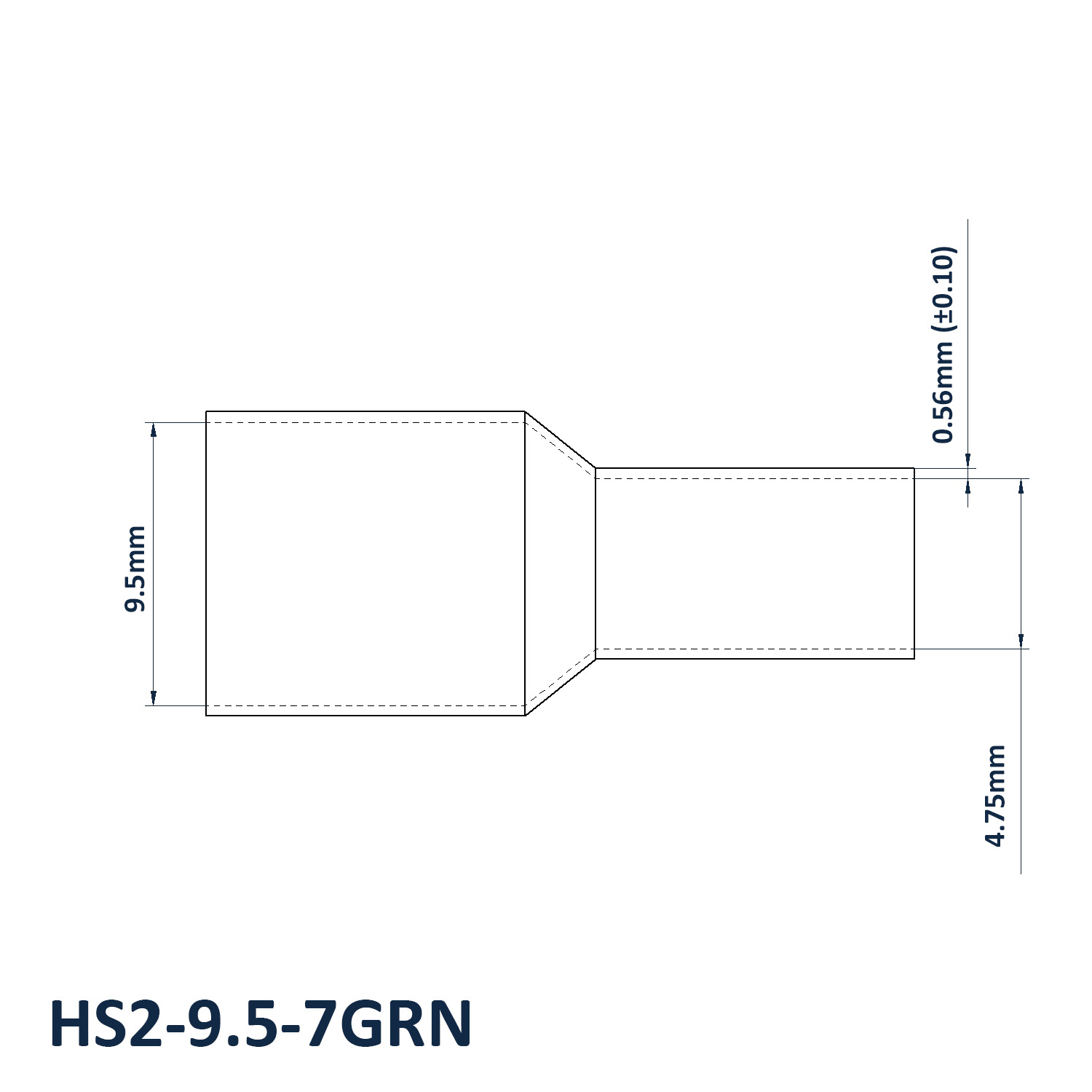

9.5mm x 7m Green Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 9.5mm
- Recovered Internal Diameter: 4.75mm
- Colour: Green
- Length: 7m
- Wall Thickness After Recovery: 0.56mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
Position the sleeve before making the final connection where needed, then heat gradually so the Polyolefin contracts around the selected area.
Related Heat Shrink Products
Where the job needs a waterproof internal bond, our Adhesive Lined Heatshrink may be more suitable. We also stock Heat Shrink Caps for cable end protection.
View our full Heat Shrink Sleeves range.
Product Support and Trade Orders
Need support matching heat shrink tubing to a cable diameter or colour-coded wiring system? Contact our team on 01233 713581 for sizing help, trade order support and product availability.
