Red 2:1 Heat Shrink, 9.5mm x 7m - HS2-9.5-7R
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £6.53 | £7.84 |
| 15 - 49 | £5.60 | £6.72 |
| 50 + | £4.90 | £5.88 |
Product Specification
| Supplied Internal Diameter | 9.5mm |
| Recovered Internal Diameter | 4.75mm |
| Colour | Red |
| Length | 7m |
| Wall Thickness After Recovery | 0.56mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00

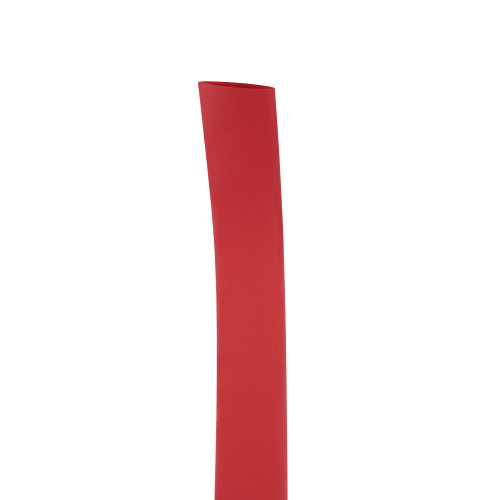

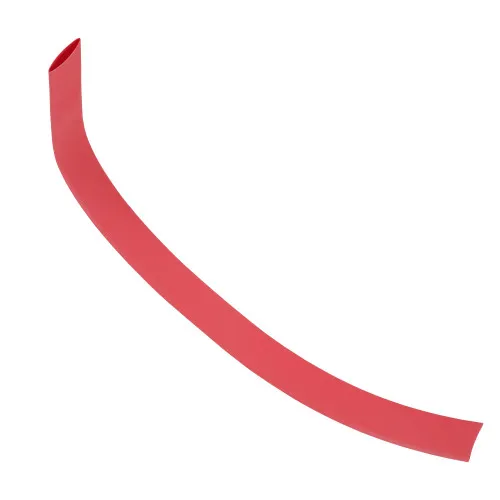

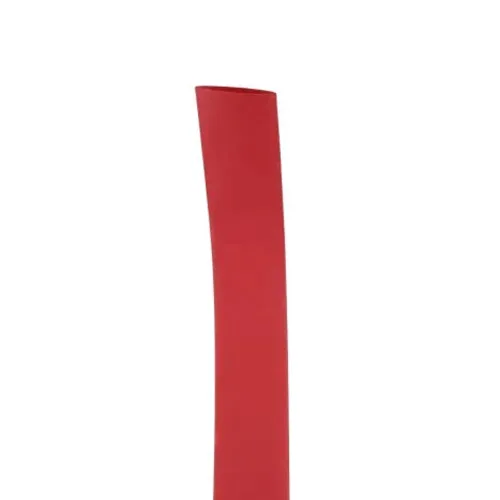

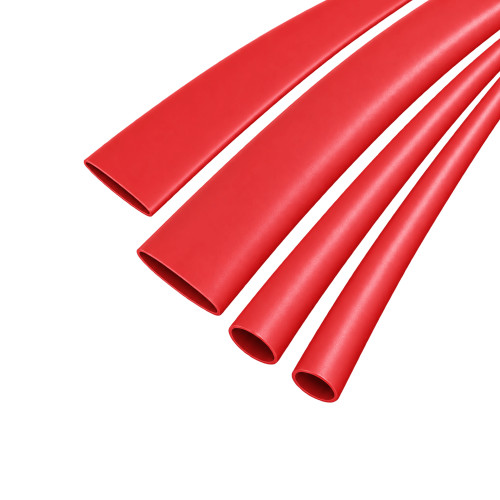

Red 2:1 Heat Shrink Sleeve – 9.5mm x 7m | Polyolefin
Built for cable protection and colour identification, this 9.5mm electrical shrink tube helps shield conductors while keeping wiring layouts easier to inspect.
With a wall thickness after recovery of 0.56mm (±0.10), it adds a useful protective layer while keeping the sleeve compact enough for neat harness layouts.
What Are Heat Shrink Sleeves?
A heat shrink sleeve is fitted over a wire, cable or joint before being heated into place. As it contracts, it forms a closer covering that helps protect the area beneath it.
Common Applications
- Covering cable splices in automotive wiring looms
- Identifying circuits during vehicle body building
- Adding abrasion protection to trailer lighting cables
- Finishing exposed wiring after repair work

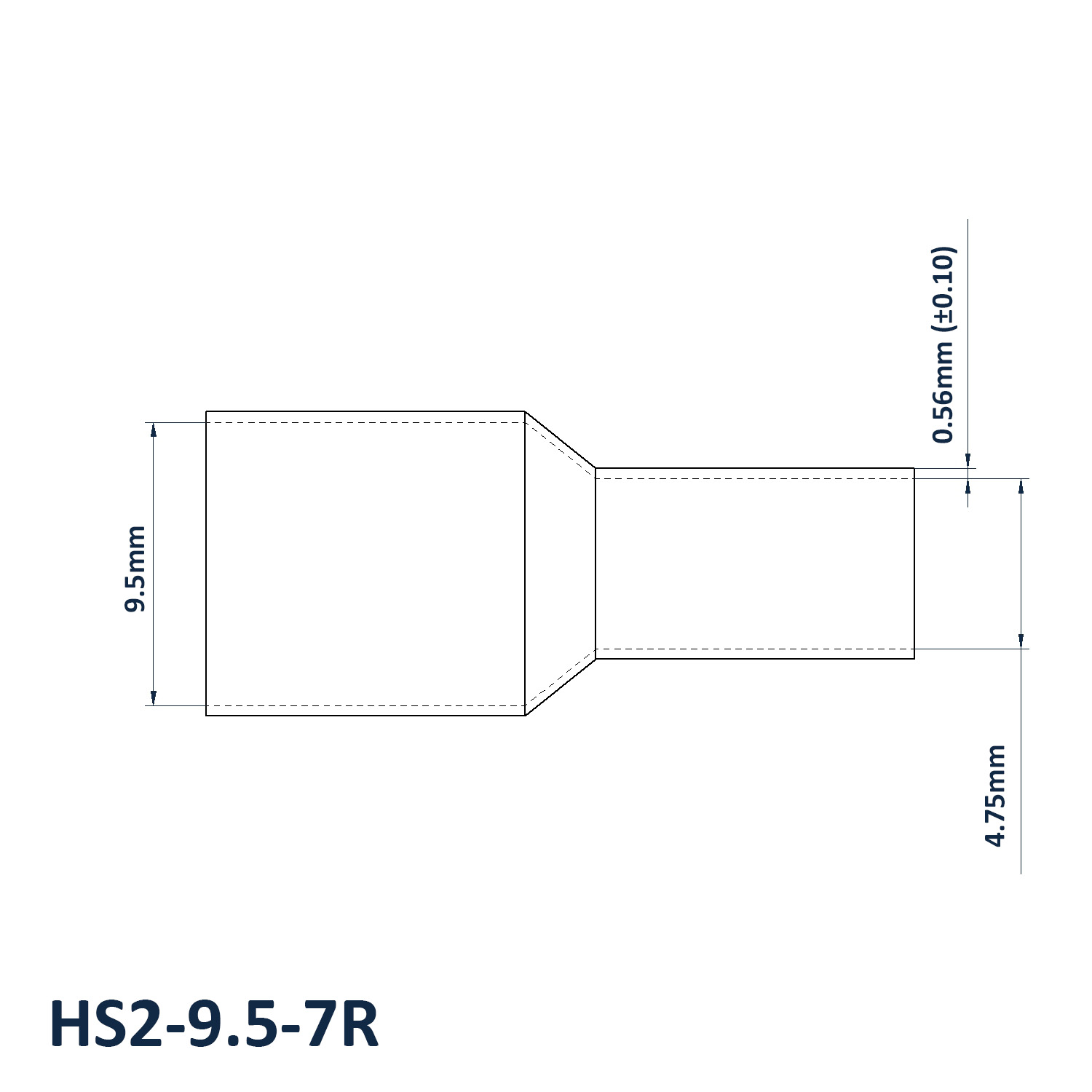

9.5mm x 7m Red Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 9.5mm
- Recovered Internal Diameter: 4.75mm
- Colour: Red
- Length: 7m
- Wall Thickness After Recovery: 0.56mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
Apply heat evenly around the sleeve rather than from one side only, as this helps the material recover more consistently around the cable.
Related Heat Shrink Products
For installations where a sleeve alone is not enough, consider Adhesive Lined Heatshrink. For terminating exposed cable ends, view our Heat Shrink Caps range.
View our full Heat Shrink Sleeves range.
Product Support and Trade Orders
For advice on choosing the correct heat shrink sleeve size for your cable, harness or repair application, call 01233 713581. We can help with technical checks and larger order requirements.
