White 2:1 Heat Shrink, 9.5mm x 7m - HS2-9.5-7W
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £6.53 | £7.84 |
| 15 - 49 | £5.60 | £6.72 |
| 50 + | £4.90 | £5.88 |
Product Specification
| Supplied Internal Diameter | 9.5mm |
| Recovered Internal Diameter | 4.75mm |
| Colour | White |
| Length | 7m |
| Wall Thickness After Recovery | 0.56mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00
White 2:1 Heat Shrink Sleeve – 9.5mm x 7m | Polyolefin
When a clean insulating sleeve is needed, this protective cable sleeving provides a heat-activated covering that tightens around the selected wire, cable or small component.
Its flexible construction makes it simple to cut to length before applying heat, which helps reduce waste when working through repeat wiring tasks.
What Are Heat Shrink Sleeves?
Heat shrink tubing works by tightening around a cable or component under controlled heat. The result is a cleaner protective layer that can support insulation, strain relief and cable identification.
Common Applications
- Cable identification in signage assemblies
- Protecting LED wiring connections
- Bundling smaller wires behind display panels
- Finishing electrical joins in retail fixtures

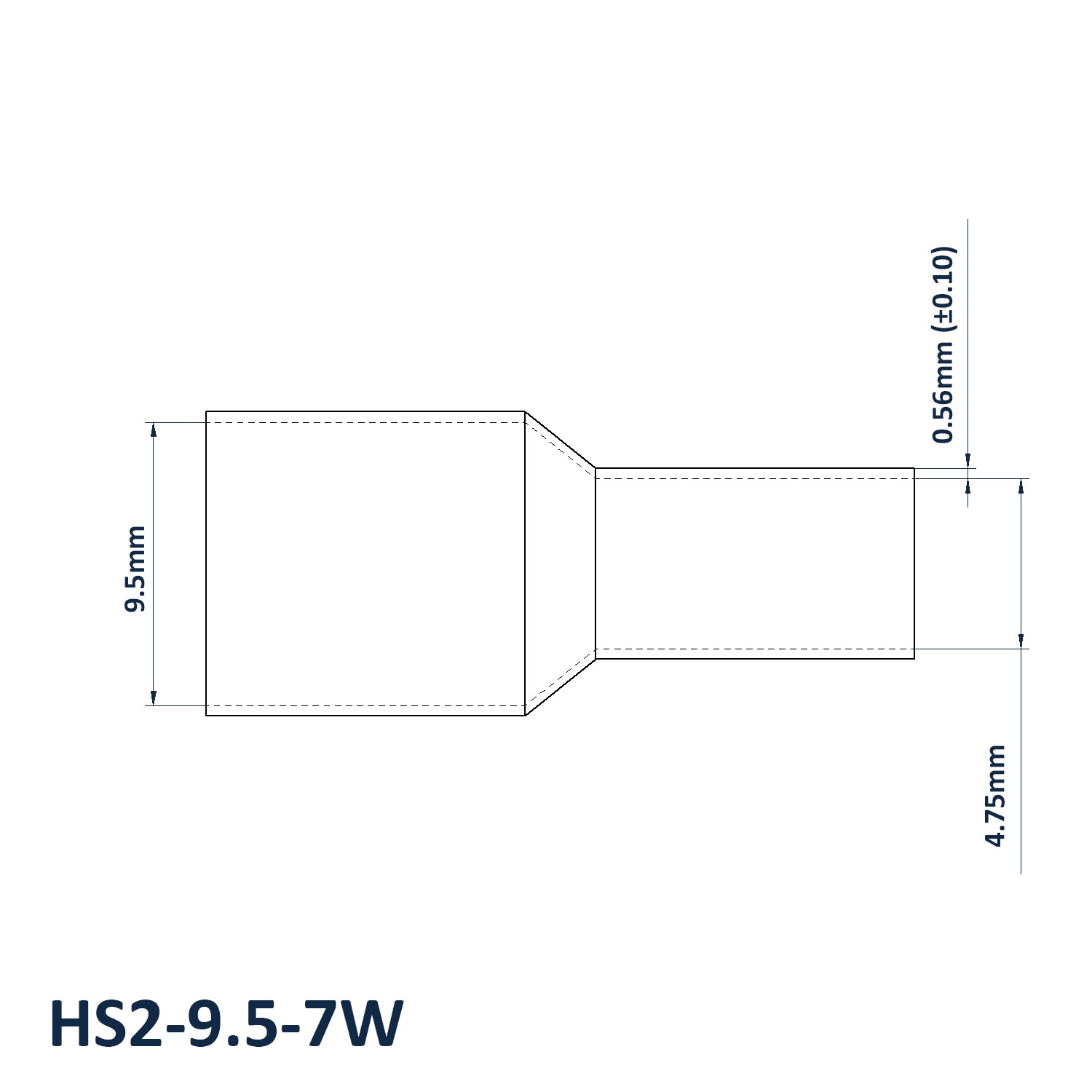

9.5mm x 7m White Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 9.5mm
- Recovered Internal Diameter: 4.75mm
- Colour: White
- Length: 7m
- Wall Thickness After Recovery: 0.56mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
For best results, choose a supplied diameter that fits over the target area before heating and check that the recovered diameter is suitable for the final cable size.
Related Heat Shrink Products
For related cable protection, see our Adhesive Lined Heatshrink where internal bonding is needed and Heat Shrink Caps for end sealing applications.
View our full Heat Shrink Sleeves range.
Product Support and Trade Orders
If you are comparing supplied and recovered diameters for a wiring project, contact Vital Parts on 01233 713581. Our team can help with sleeve selection, bulk quantities and product guidance for electrical protection work.
