Red 2:1 Heat Shrink, 6.4mm x 9m - HS2-6.4-9R
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £8.70 | £10.44 |
| 15 - 49 | £7.46 | £8.95 |
| 50 + | £6.53 | £7.83 |
Product Specification
| Supplied Internal Diameter | 6.4mm |
| Recovered Internal Diameter | 3.2mm |
| Colour | Red |
| Length | 9m |
| Wall Thickness After Recovery | 0.56mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00

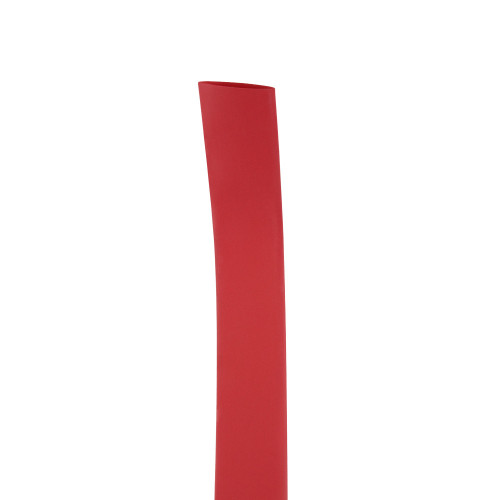

Red 2:1 Heat Shrink Sleeve – 6.4mm x 9m | Polyolefin
Engineered for wiring protection, this red electrical heat shrink shrinks from 6.4mm to 3.2mm to support a tighter hold around conductors and small cable assemblies.
With a wall thickness after recovery of 0.56mm (±0.10), it adds a useful protective layer while keeping the sleeve compact enough for neat harness layouts.
What Are Heat Shrink Sleeves?
A heat shrink sleeve is fitted over a wire, cable or joint before being heated into place. As it contracts, it forms a closer covering that helps protect the area beneath it.
Common Applications
- Panel building and cabinet wiring
- Covering ferrule-backed cable joints where suitable
- Grouping conductors before routing
- Improving cable traceability during servicing

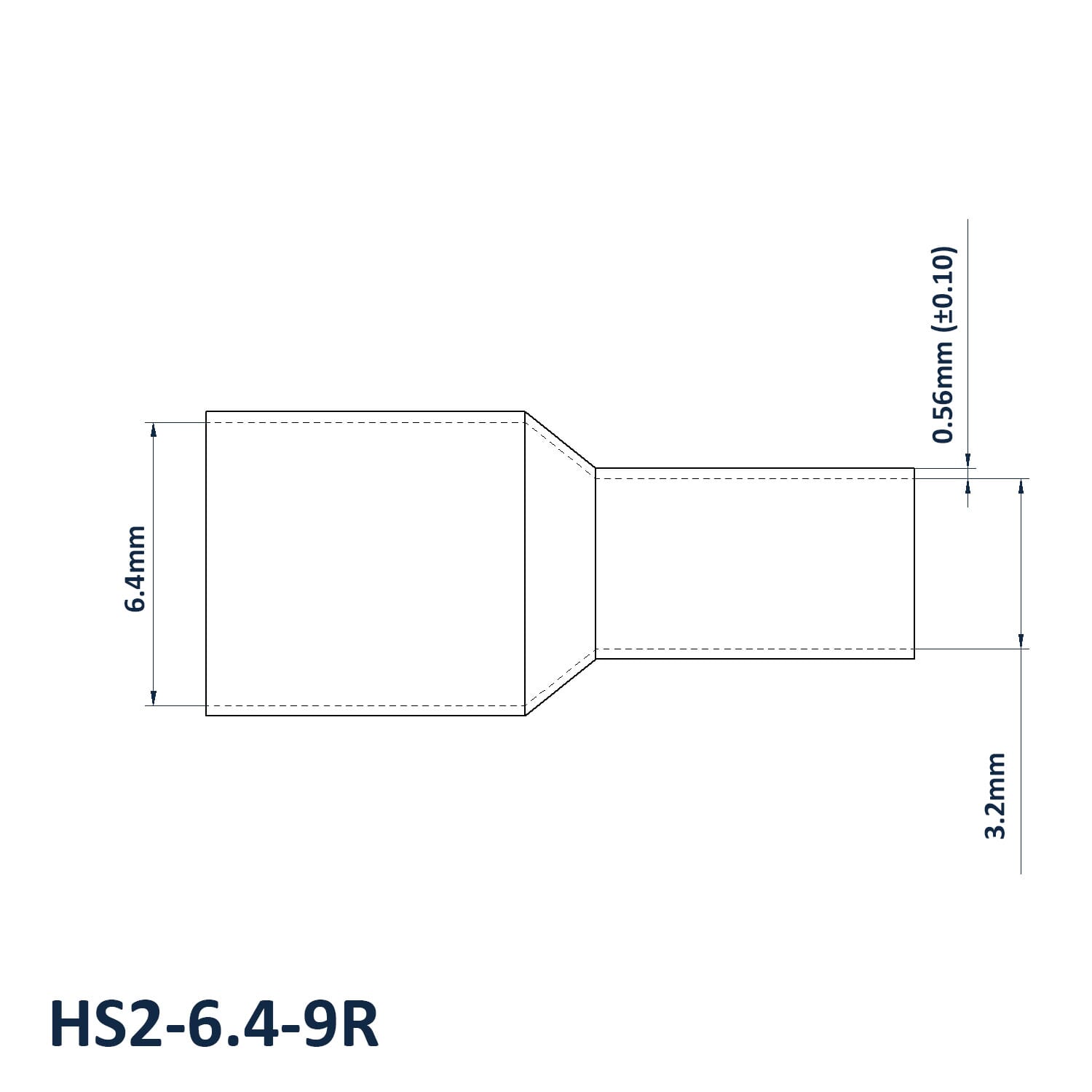

6.4mm x 9m Red Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 6.4mm
- Recovered Internal Diameter: 3.2mm
- Colour: Red
- Length: 9m
- Wall Thickness After Recovery: 0.56mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
For best results, choose a supplied diameter that fits over the target area before heating and check that the recovered diameter is suitable for the final cable size.
Related Heat Shrink Products
For related cable protection, see our Adhesive Lined Heatshrink where internal bonding is needed and Heat Shrink Caps for end sealing applications.
View our full Heat Shrink Sleeves range.
Product Support and Trade Orders
For advice on choosing the correct heat shrink sleeve size for your cable, harness or repair application, call 01233 713581. We can help with technical checks and larger order requirements.
