Yellow 2:1 Heat Shrink, 6.4mm x 9m - HS2-6.4-9Y
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £8.70 | £10.44 |
| 15 - 49 | £7.46 | £8.95 |
| 50 + | £6.53 | £7.83 |
Product Specification
| Supplied Internal Diameter | 6.4mm |
| Recovered Internal Diameter | 3.2mm |
| Colour | Yellow |
| Length | 9m |
| Wall Thickness After Recovery | 0.56mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00

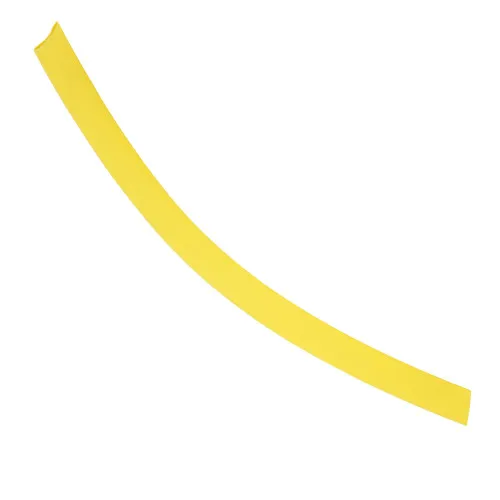

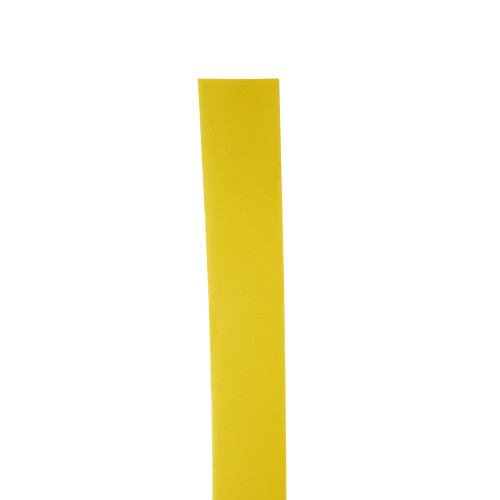

Yellow 2:1 Heat Shrink Sleeve – 6.4mm x 9m | Polyolefin
Frequently used in electrical manufacturing, this yellow wire insulation sleeve offers a flexible way to insulate exposed cable sections without using bulky protective covers.
Because the sleeve is supplied on a roll length of 9m, it suits both one-off repairs and larger workshop batches where repeat cutting is needed.
What Are Heat Shrink Sleeves?
Heat shrink sleeves are flexible Polyolefin tubes that reduce in diameter when heat is applied. They are used to insulate wiring, cover joins, group cables and improve protection around electrical assemblies.
Common Applications
- Repairs to workshop tools and test equipment
- Covering damaged insulation on suitable cable areas
- Neatening temporary wiring repairs before final assembly
- Reducing cable clutter in maintenance kits

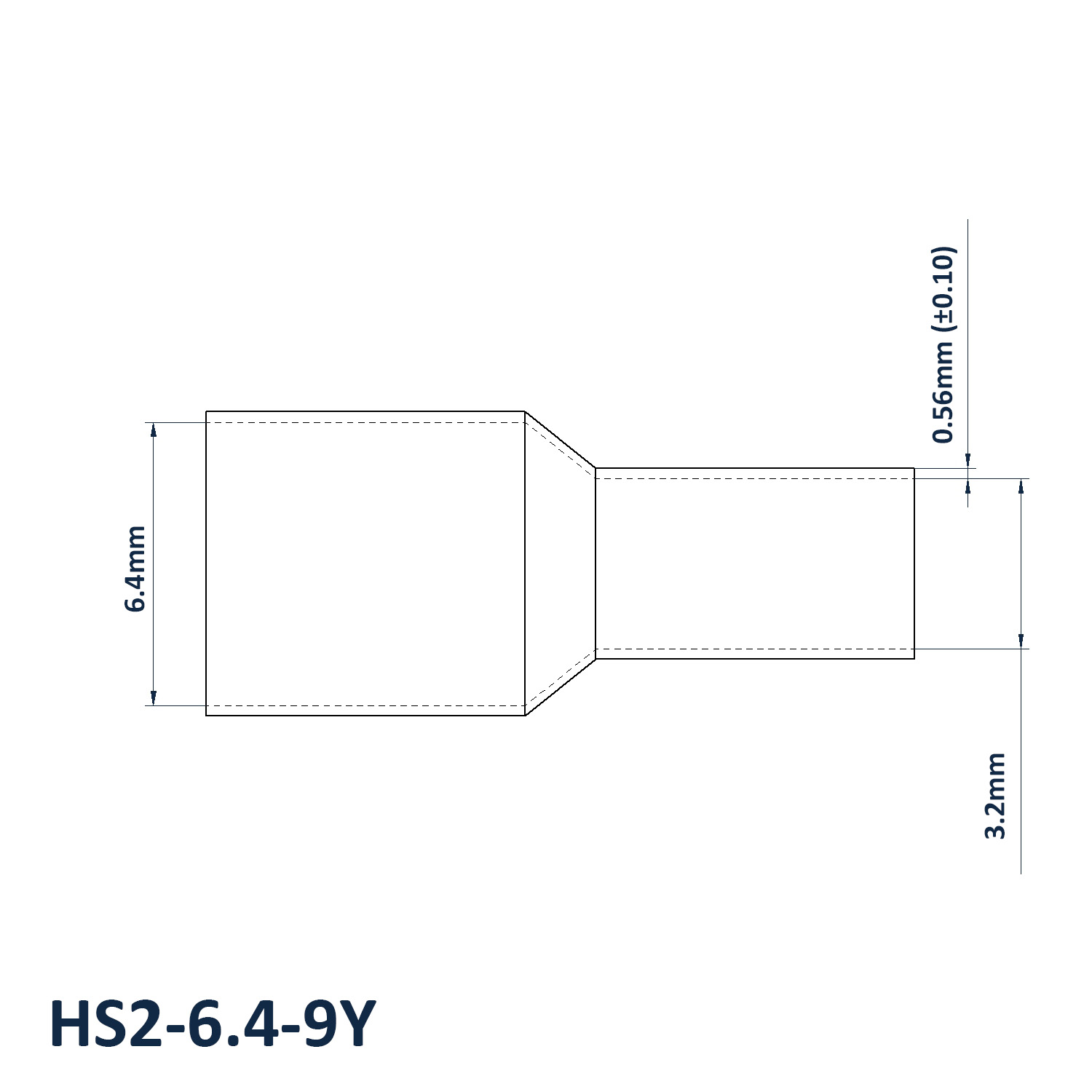

6.4mm x 9m Yellow Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 6.4mm
- Recovered Internal Diameter: 3.2mm
- Colour: Yellow
- Length: 9m
- Wall Thickness After Recovery: 0.56mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
Use suitable heat control during fitting so the sleeve recovers cleanly without damaging the cable insulation beneath it.
Related Heat Shrink Products
We also offer Adhesive Lined Heatshrink for sealed cable joints and Heat Shrink Caps for closing off cable ends where a sleeve is not the best option.
View our full Heat Shrink Sleeves range.
Product Support and Trade Orders
For help checking heat shrink sizing, roll quantities or suitability for cable insulation work, speak with the Vital Parts team on 01233 713581. We can support repeat trade orders, samples where available and guidance on related heat shrink products.
