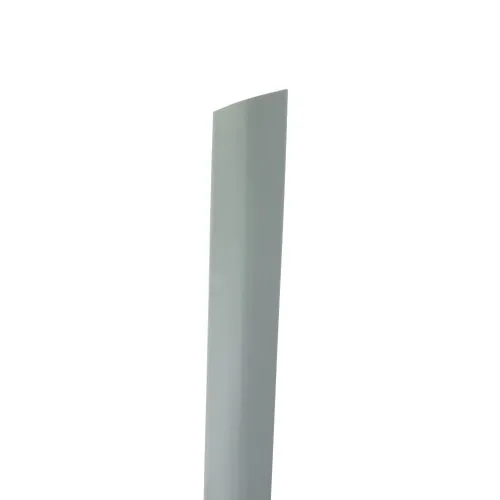

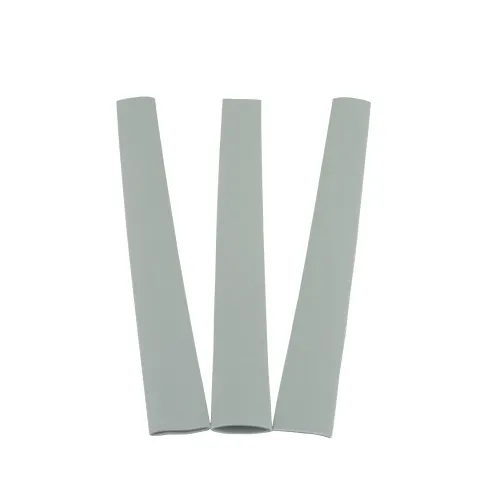

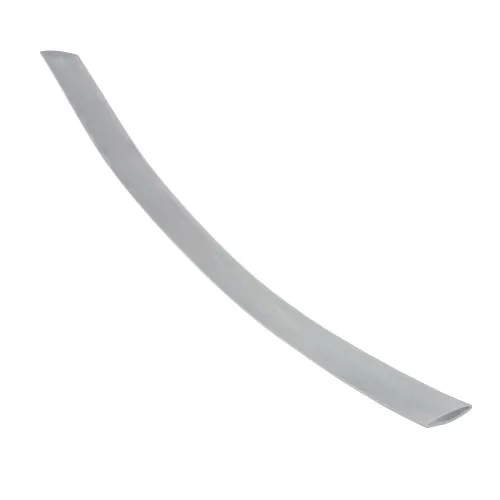

9.5mm Grey Heat Shrink Tubing | 100m
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £30.50 | £36.60 |
| 15 - 49 | £27.11 | £32.53 |
| 50 + | £24.40 | £29.28 |
£36.60 / each
.png)
Product Specification
| Supplied Internal Diameter | 9.5mm |
| Recovered Internal Diameter | 4.75mm |
| Colour | Grey |
| Length | 100m |
| Wall Thickness After Recovery | 0.56mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00
Grey 2:1 Heat Shrink Sleeve – 9.5mm x 100m | Polyolefin
For wiring projects that need a clean protective finish, this electrical shrink sleeving gives installers a 100m roll of flexible 2:1 sleeving in grey.
Because the sleeve is supplied on a roll length of 100m, it suits both one-off repairs and larger workshop batches where repeat cutting is needed.
What Are Heat Shrink Sleeves?
Heat shrink sleeves are flexible Polyolefin tubes that reduce in diameter when heat is applied. They are used to insulate wiring, cover joins, group cables and improve protection around electrical assemblies.
Common Applications
- Industrial machinery cable protection
- Sleeving control wires in production equipment
- Improving safety around exposed cable joins
- Supporting maintenance repairs on moving equipment

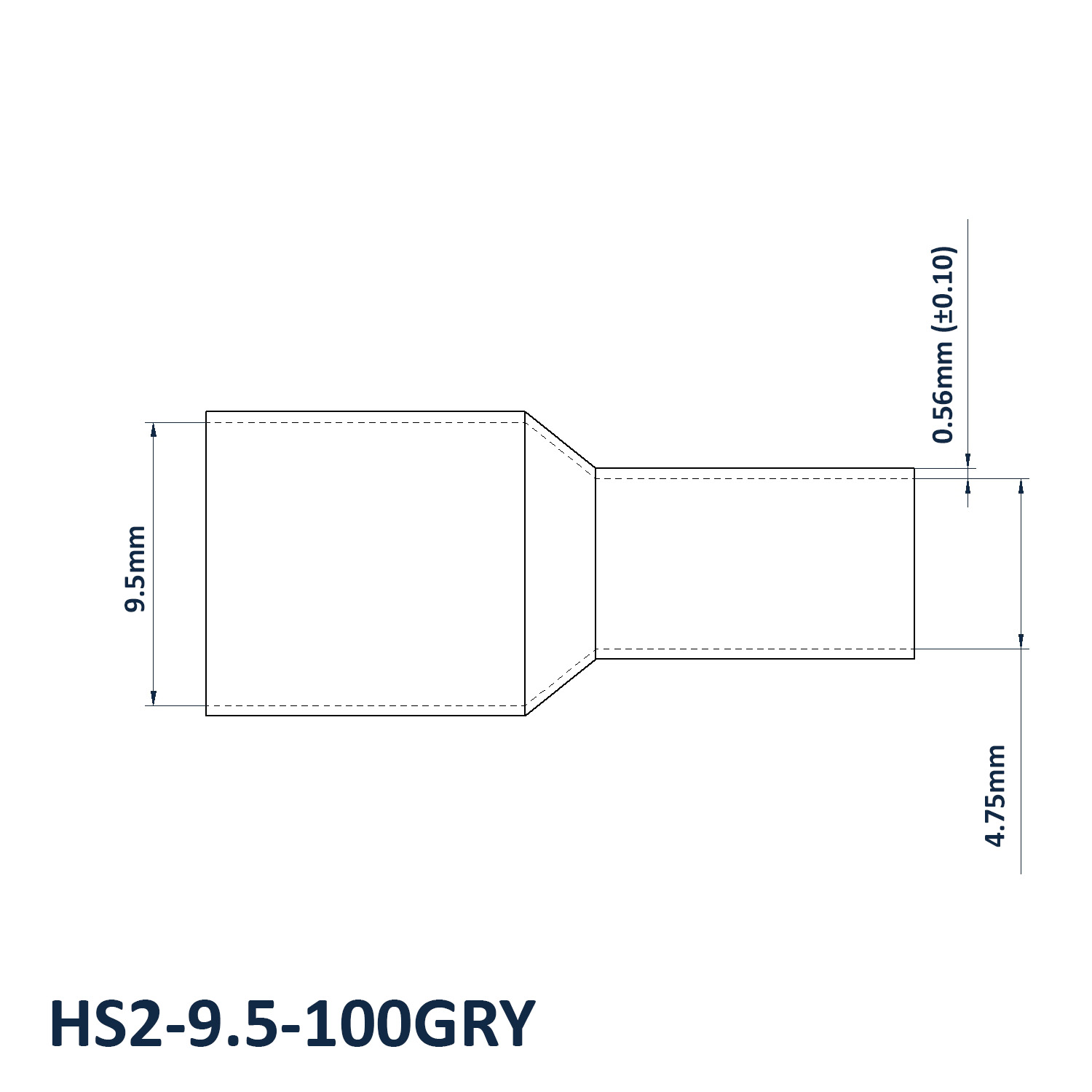

9.5mm x 100m Grey Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 9.5mm
- Recovered Internal Diameter: 4.75mm
- Colour: Grey
- Length: 100m
- Wall Thickness After Recovery: 0.56mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
Apply heat evenly around the sleeve rather than from one side only, as this helps the material recover more consistently around the cable.
Related Heat Shrink Products
For installations where a sleeve alone is not enough, consider Adhesive Lined Heatshrink. For terminating exposed cable ends, view our Heat Shrink Caps range.
View our full Heat Shrink Sleeves range.
Product Support and Trade Orders
For help checking heat shrink sizing, roll quantities or suitability for cable insulation work, speak with the Vital Parts team on 01233 713581. We can support repeat trade orders, samples where available and guidance on related heat shrink products.
