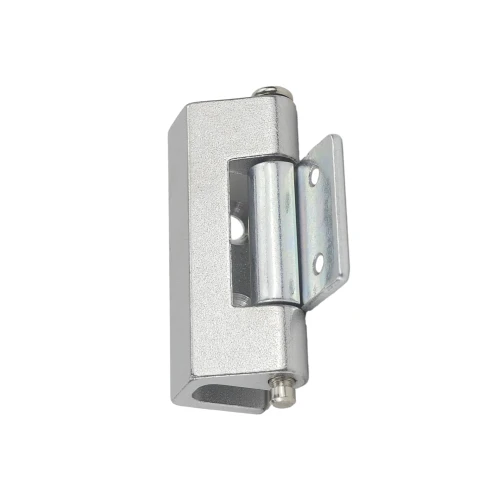

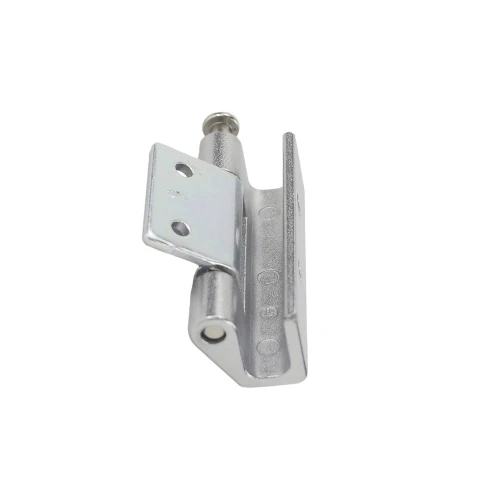

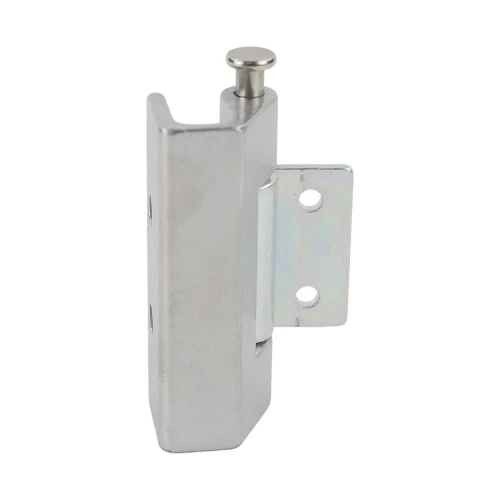

48mm x 17.5mm Heavy Duty Concealed Hinge - Chrome Plated Zinc
Product code:
HIN420
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £5.95 | £7.14 |
| 10 - 24 | £5.53 | £6.63 |
| 25 - 49 | £5.10 | £6.12 |
| 50 - 99 | £4.42 | £5.31 |
| 100 - 499 | £3.58 | £4.29 |
| 500 + | £3.06 | £3.67 |
£7.14
/ each
Quantity:

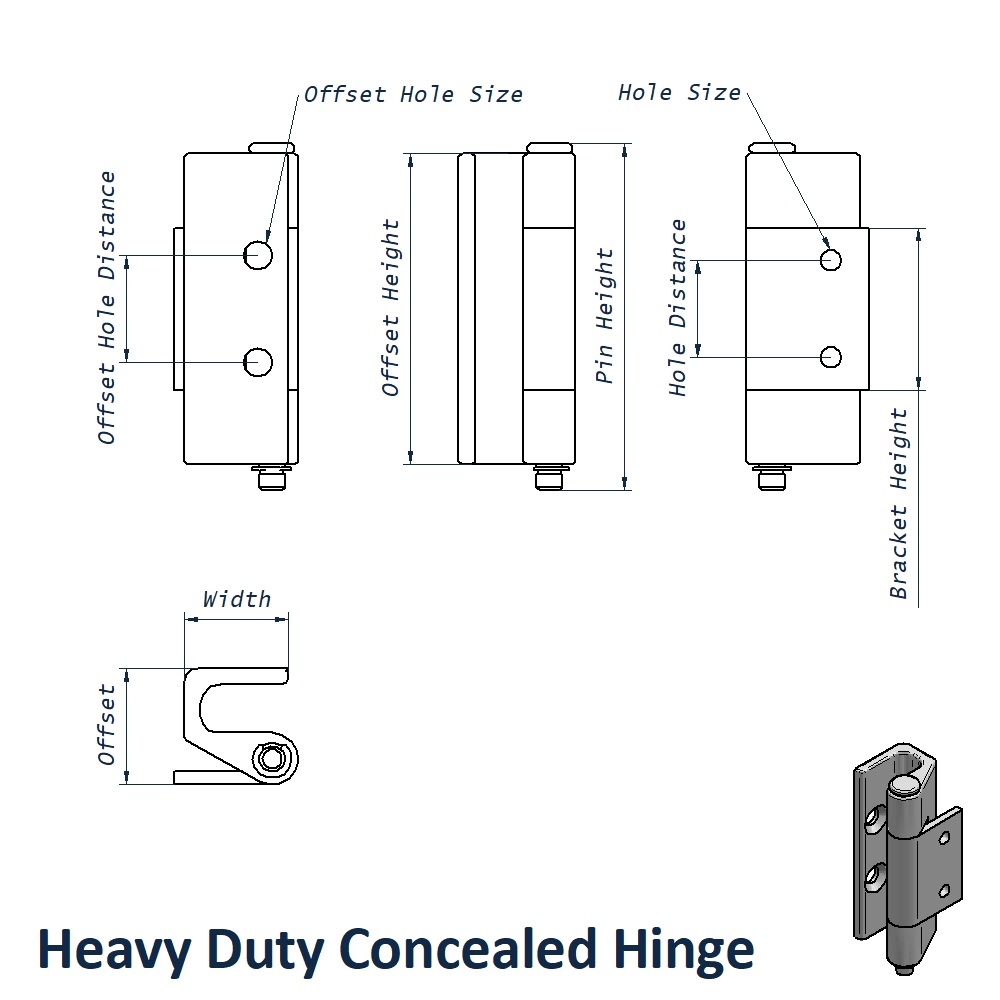

Product Specification
| Offset Height | 48mm |
| Width | 17.5mm |
| Offset | 18mm |
| Offset Hole Size | 4.5mm |
| Offset Hole Distance | 16.5mm |
| Hole Distance | 15mm |
| Hole Size | 3.2mm |
| Pin Height | 53.5mm |
| Material | Chrome Plated Die Cast Zinc |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
This Heavy Duty Concealed Hinge has an Offset Height of 48mm and a Width of 17.5mm. It is stocked in Chrome Plated Die Cast Zinc which makes it ideal for heavy duty applications such as enclosure doors.
This Heavy Duty Concealed Hinge has an Offset measurement of 18mm, an Offset Hole Size of 4.5mm, an Offset Hole Distance of 16.5mm, a Hole Distance of 15mm and a Hole Size of 3.2mm.
This hinge features a removable pin which has a Pin Height of 53.5mm and a Bracket Height of 25mm.
This Hinge has a 90° opening angle which allows the user to gain access to the application with ease.
The Radial Load of this Hinge is 228N and the Axial Load is 290N.
