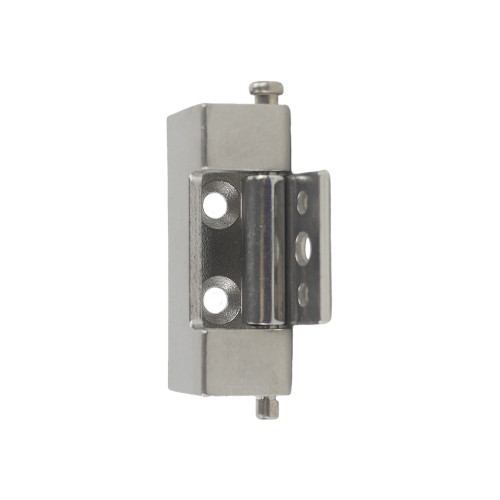

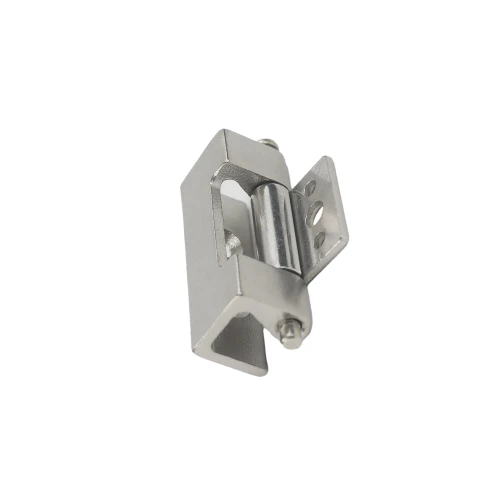

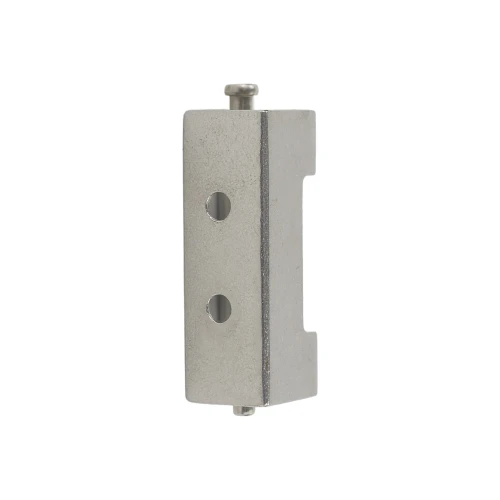

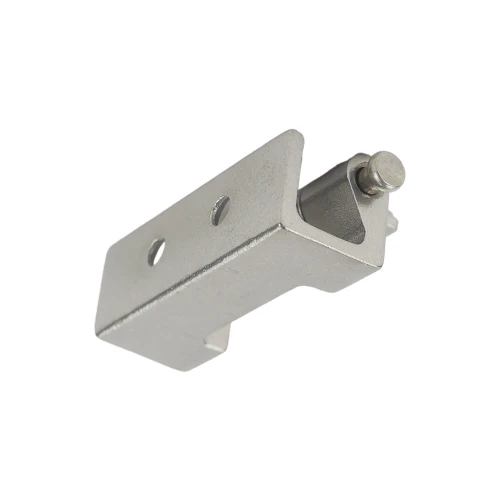

48mm x 17.5mm Heavy Duty Concealed Hinge - 316 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £24.00 | £28.80 |
| 10 - 24 | £22.28 | £26.74 |
| 25 - 49 | £20.57 | £24.68 |
| 50 - 99 | £17.82 | £21.39 |
| 100 - 499 | £14.40 | £17.28 |
| 500 + | £12.34 | £14.81 |
Product Specification
| Offset Height | 48mm |
| Width | 17.5mm |
| Offset | 18mm |
| Offset Hole Size | 4.5mm |
| Offset Hole Distance | 16.5mm |
| Hole Distance | 15mm |
| Hole Size | 3.2mm |
| Pin Height | 56.0mm |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
This Heavy Duty Concealed Hinge has an Offset Height of 48mm and a Width of 17.5mm. It is stocked in 316 Stainless Steel , which is also referred to as A4; making it ideal for heavy duty applications such as enclosure doors, as well as being suitable for marine grade applications.. This Heavy Duty Concealed Hinge has an Offset measurement of 18mm, an Offset Hole Size of 4.5mm, an Offset Hole Distance of 16.5mm, a Hole Distance of 15mm and a Hole Size of 3.2mm. This hinge features a removable pin which has a Pin Height of 56mm and a Bracket Height of 25mm. This Hinge has a 90° opening angle which allows the user to gain access to the application with ease. The Radial Load of this Hinge is 750N and the Axial Load is 365N.
