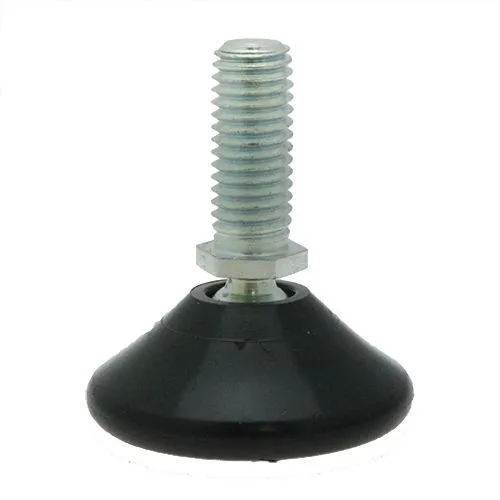

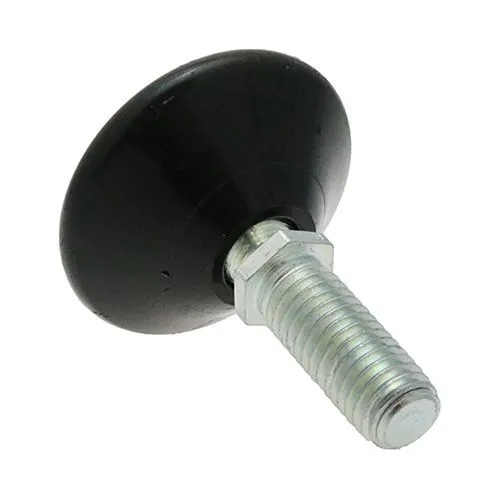

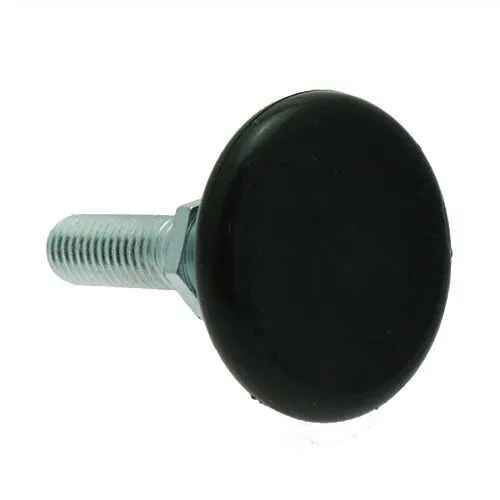

M8 x 50mm Heavy Duty (Tilting) Feet (75kg Weight Rated) 32.5mm Base
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.95 | £1.14 |
| 100 - 249 | £0.82 | £0.98 |
| 250 - 499 | £0.71 | £0.85 |
| 500 - 999 | £0.63 | £0.76 |
| 1000 + | £0.54 | £0.65 |
Product Specification
| Thread Size | M8 |
| Base Diameter | 32.5mm |
| Base Height | 20mm |
| Weight Rating | 75kg |
| Tilt Angle | 20º |
| Colour | Black |
| Material | Steel Stud & Polyamide |
| Thread Length | 50.0mm |
Frequently Bought Together
Total Price: £0.00
M8 x 50mm Heavy Duty Tilting Foot | 75kg Weight Rated | 32.5mm Base Diameter | Steel Stud & Polyamide
These M8 x 50mm machine support feet are developed for construction site equipment, using a load rated tilting base to improve contact with uneven floors.
Because the base can articulate, this foot is easier to seat correctly on imperfect floors than a rigid non-tilting leveller. For UK manufacturers and engineers, the clear thread specification makes matching the foot to an insert or mounting point much simpler.
Common Applications
- HVAC support frames and plant room assemblies
- Pump bases that benefit from a tilting floor contact point
- Compressor stands needing robust equipment levelling
- Industrial service frames set up on uneven flooring
M8 x 50mm Heavy Duty Tilting Foot Dimensions
- Base Diameter: 32.5mm
- Thread Size: M8
- Thread Length: 50mm
- Base Height: 20mm
- Tilt Angle: 20º
- Weight Rating: 75kg
- Colour: Black
- Material: Steel Stud & Polyamide
Commonly Paired with Articulated Feet - E Nuts for a secure fit
Perfect for tilting or articulated adjustable feet, E Nuts use a self-locking design to help prevent loosening and increase grip in soft woods. They are ideal for regular adjustments and secure fixing.
Click here to view our full range of E Nuts.
View our full Heavy Duty Tilting Feet range for more heavy duty levelling feet, tilting adjustable feet and load rated support options.
