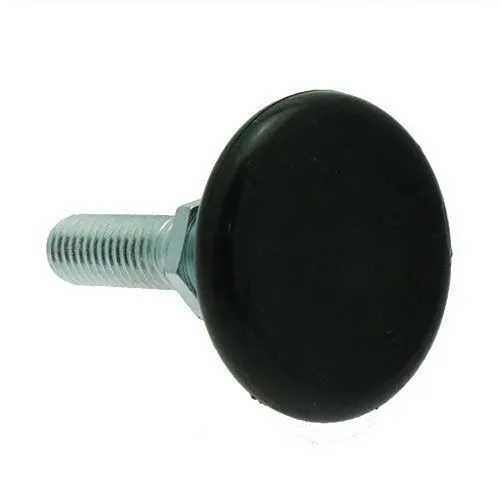

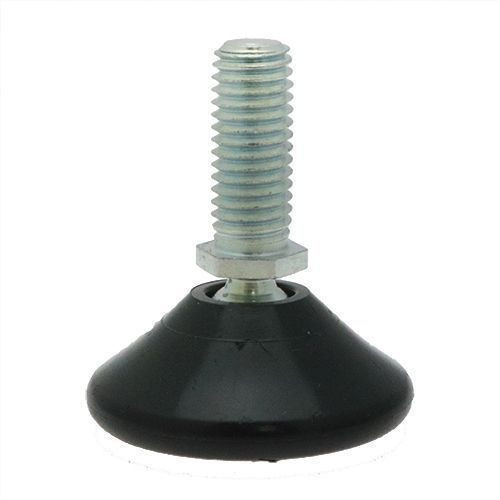

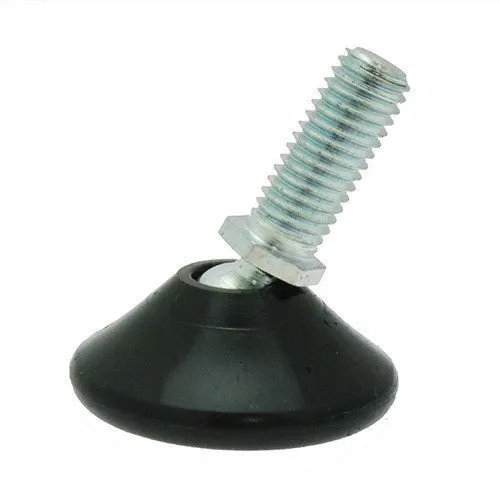

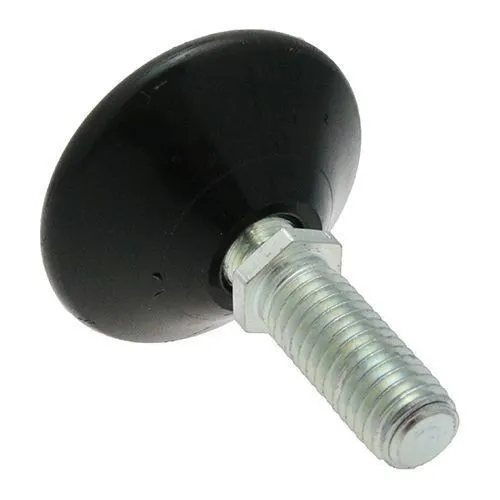

M8 x 75mm Heavy Duty (Tilting) Feet (75kg Weight Rated) 32.5mm Base
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.48 | £1.78 |
| 100 - 249 | £1.29 | £1.55 |
| 250 - 499 | £1.12 | £1.35 |
| 500 - 999 | £0.98 | £1.18 |
| 1000 + | £0.84 | £1.01 |
Product Specification
| Thread Size | M8 |
| Base Diameter | 32.5mm |
| Base Height | 20mm |
| Weight Rating | 75kg |
| Tilt Angle | 20º |
| Colour | Black |
| Material | Steel Stud & Polyamide |
| Thread Length | 75.0mm |
Frequently Bought Together
Total Price: £0.00
M8 x 75mm Heavy Duty Tilting Foot | 75kg Weight Rated | 32.5mm Base Diameter | Steel Stud & Polyamide
Designed around a M8 steel stud and 75mm thread length, these Heavy Duty Tilting Feet suit materials handling where transfer tables and guide rails that need a stable adjustable base.
The load rated design supports better component selection for engineered assemblies, especially where several feet share the weight of one structure. Used across equipment builds and refurbishment work, the design supports repeatable set-up and straightforward height correction.
Common Applications
- OEM equipment manufacture using repeatable support components
- Modular aluminium frames needing threaded levelling feet
- Industrial enclosure stands fitted around production equipment
- Bespoke machinery bases requiring load rated adjusters

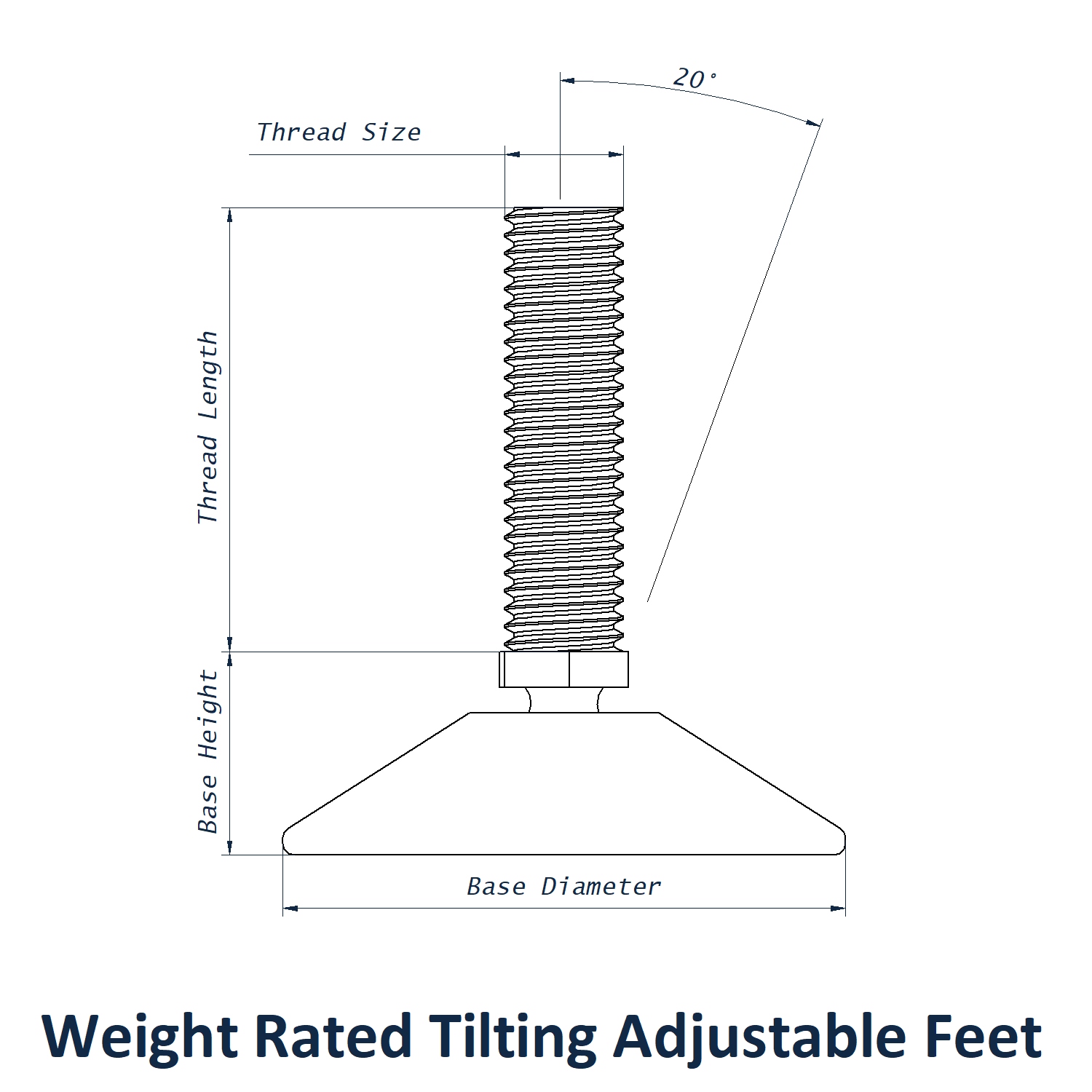

M8 x 75mm Heavy Duty Tilting Foot Dimensions
- Base Diameter: 32.5mm
- Thread Size: M8
- Thread Length: 75mm
- Base Height: 20mm
- Tilt Angle: 20º
- Weight Rating: 75kg
- Colour: Black
- Material: Steel Stud & Polyamide
Commonly Paired with Articulated Feet - E Nuts for a secure fit
Perfect for tilting or articulated adjustable feet, E Nuts use a self-locking design to help prevent loosening and increase grip in soft woods. They are ideal for regular adjustments and secure fixing.
Click here to view our full range of E Nuts.
View our full Heavy Duty Tilting Feet range for more heavy duty levelling feet, tilting adjustable feet and load rated support options.
