M6 x 100mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.56 | £0.67 |
| 100 - 999 | £0.50 | £0.60 |
| 1000 + | £0.32 | £0.38 |
Product Specification
| Thread Size | M6 |
| Pitch | 1.00mm |
| Length | 100mm |
| Threaded Length | 18mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 10mm |
| Head Height | 4.2mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M6 x 100mm Hex Head Bolt DIN 931 | A4-80 Stainless Steel
This M6 x 100mm hex bolt is intended for agricultural equipment maintenance where access for a socket or spanner is available and a robust external drive is required. The A4-80 Stainless Steel construction provides enhanced stainless strength and corrosion resistance in harsh environments. This makes the A4-80 stainless steel hex bolt useful when a standard metric fastening has to match existing drawings.
DIN 931 sizing improves interchangeability across maintenance stores, OEM builds and fabrication projects where consistent metric hardware is needed. The 18mm threaded section gives enough engagement for matched hardware while the 100mm overall length supports through-bolting and spaced components.
Common Applications
- Upgrading tractor attachments in agricultural equipment maintenance
- Securing barn equipment using M6 metric hardware
- Mounting field machinery guards where A4-80 Stainless Steel is specified
- Assembling galvanised steel assemblies requiring DIN 931 part threaded bolts

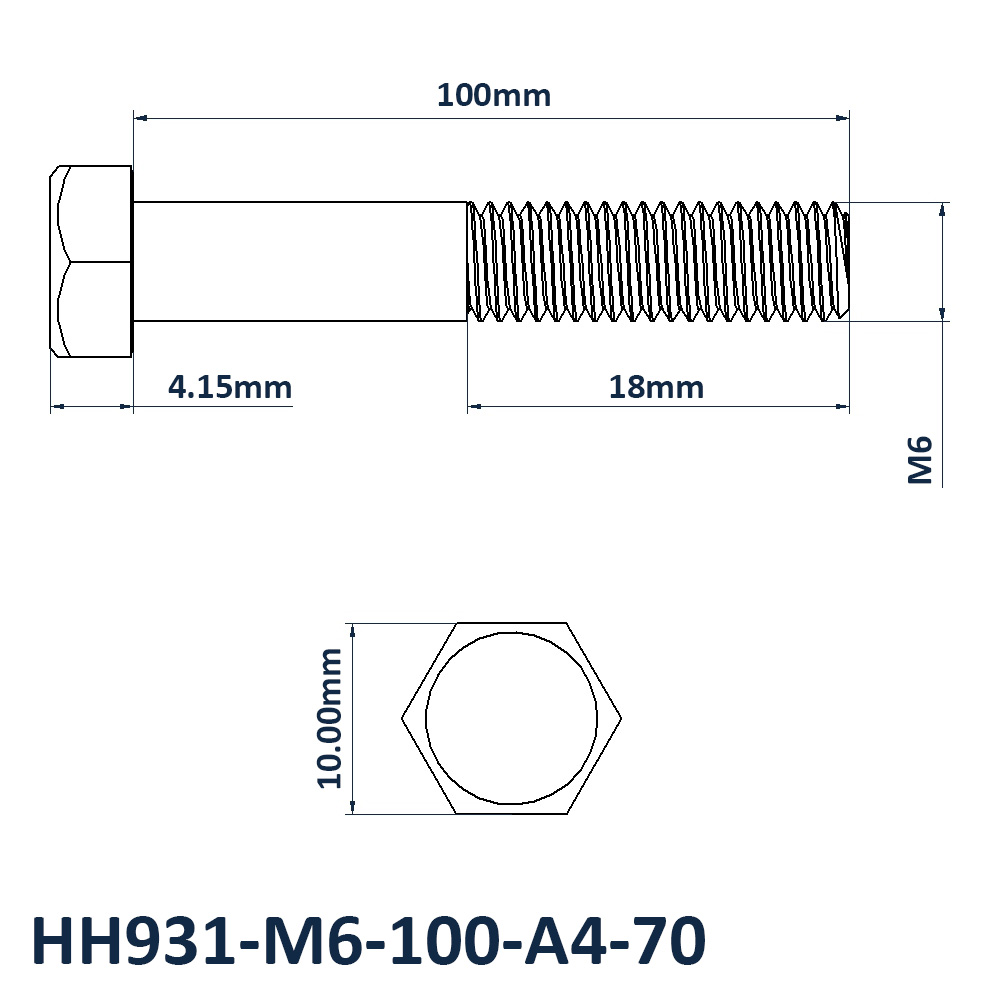

M6 x 100mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M6
- Length: 100mm
- Threaded Length: 18mm
- Pitch: 1.00mm
- Across Flats: 10mm
- Head Height: 4.2mm
- Material: A4-80 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
