M10 x 75mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.89 | £1.07 |
| 100 - 999 | £0.79 | £0.95 |
| 1000 + | £0.51 | £0.61 |
Product Specification
| Thread Size | M10 |
| Pitch | 1.50mm |
| Length | 75mm |
| Threaded Length | 26mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 17mm |
| Head Height | 6.6mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M10 x 75mm Hex Head Bolt DIN 931 | A4-80 Stainless Steel
Designed for chemical processing sites, this M10 x 75mm DIN 931 hex bolt combines a plain shank section with a threaded end for strong alignment through prepared holes. The A4-80 Stainless Steel specification makes it suitable for marine, coastal and chemical environments where stronger corrosion resistant stainless fastening is required. This makes the M10 x 75mm hex head bolt useful when a standard metric fastening has to match existing drawings.
DIN 931 sizing improves interchangeability across maintenance stores, OEM builds and fabrication projects where consistent metric hardware is needed. With a 1.50mm pitch and 17mm across flats head, it is easy to specify for brackets, conveyors and production fixtures.
Common Applications
- Clamping corrosion resistant brackets in chemical processing sites
- Fastening pipe support frames using M10 metric hardware
- Installing plant access hardware where A4-80 Stainless Steel is specified
- Joining stainless service panels requiring DIN 931 part threaded bolts

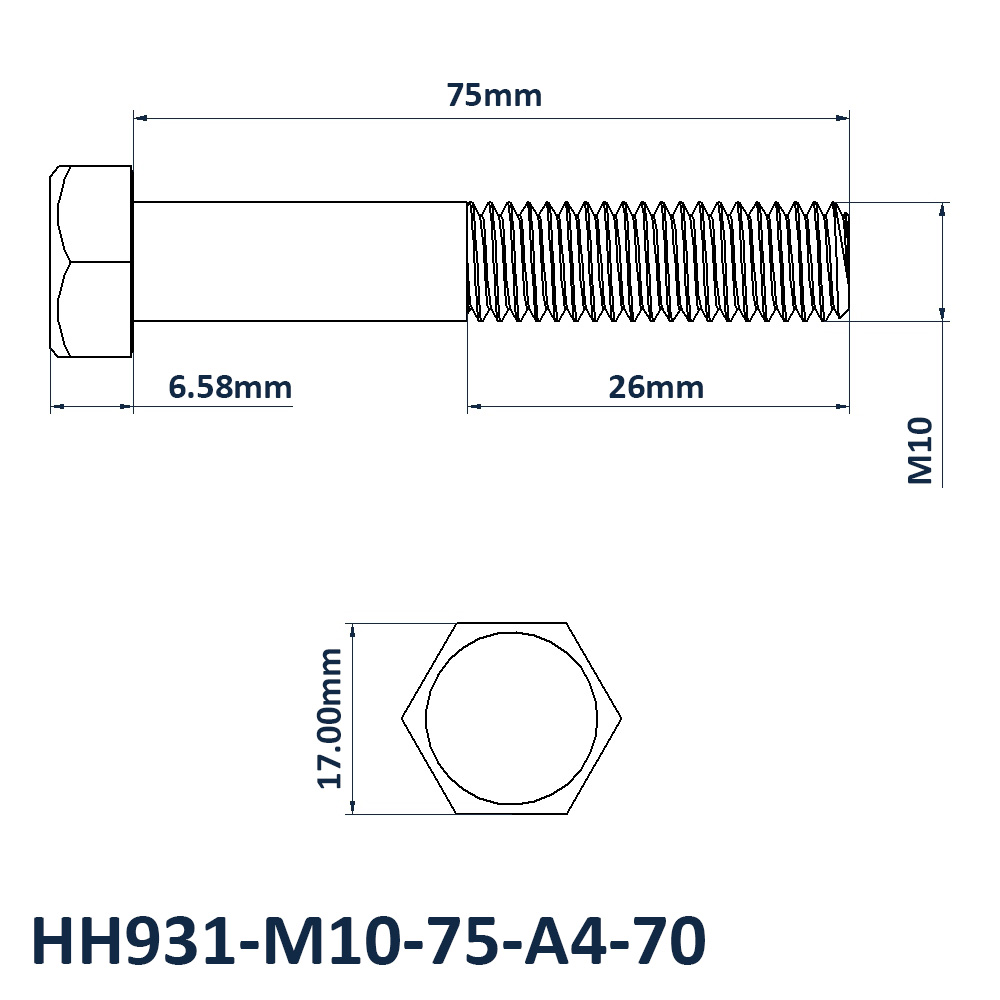

M10 x 75mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M10
- Length: 75mm
- Threaded Length: 26mm
- Pitch: 1.50mm
- Across Flats: 17mm
- Head Height: 6.6mm
- Material: A4-80 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
