M12 x 45mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.98 | £1.18 |
| 100 - 999 | £0.88 | £1.06 |
| 1000 + | £0.57 | £0.68 |
Product Specification
| Thread Size | M12 |
| Pitch | 1.75mm |
| Length | 45mm |
| Threaded Length | 30mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 19mm |
| Head Height | 7.9mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M12 x 45mm Hex Head Bolt DIN 931 | A4-80 Stainless Steel
This M12 x 45mm hex bolt is intended for plant room installations where access for a socket or spanner is available and a robust external drive is required. The A4-80 Stainless Steel construction provides enhanced stainless strength and corrosion resistance in harsh environments. This makes the A4-80 stainless steel hex bolt useful when a standard metric fastening has to match existing drawings.
DIN 931 sizing improves interchangeability across maintenance stores, OEM builds and fabrication projects where consistent metric hardware is needed. The 7.9mm head height gives the installer a clear external drive for workshop and site fitting.
Common Applications
- Building pump skids in plant room installations
- Aligning tank supports using M12 metric hardware
- Replacing access covers where A4-80 Stainless Steel is specified
- Fixing service frame assemblies requiring DIN 931 part threaded bolts

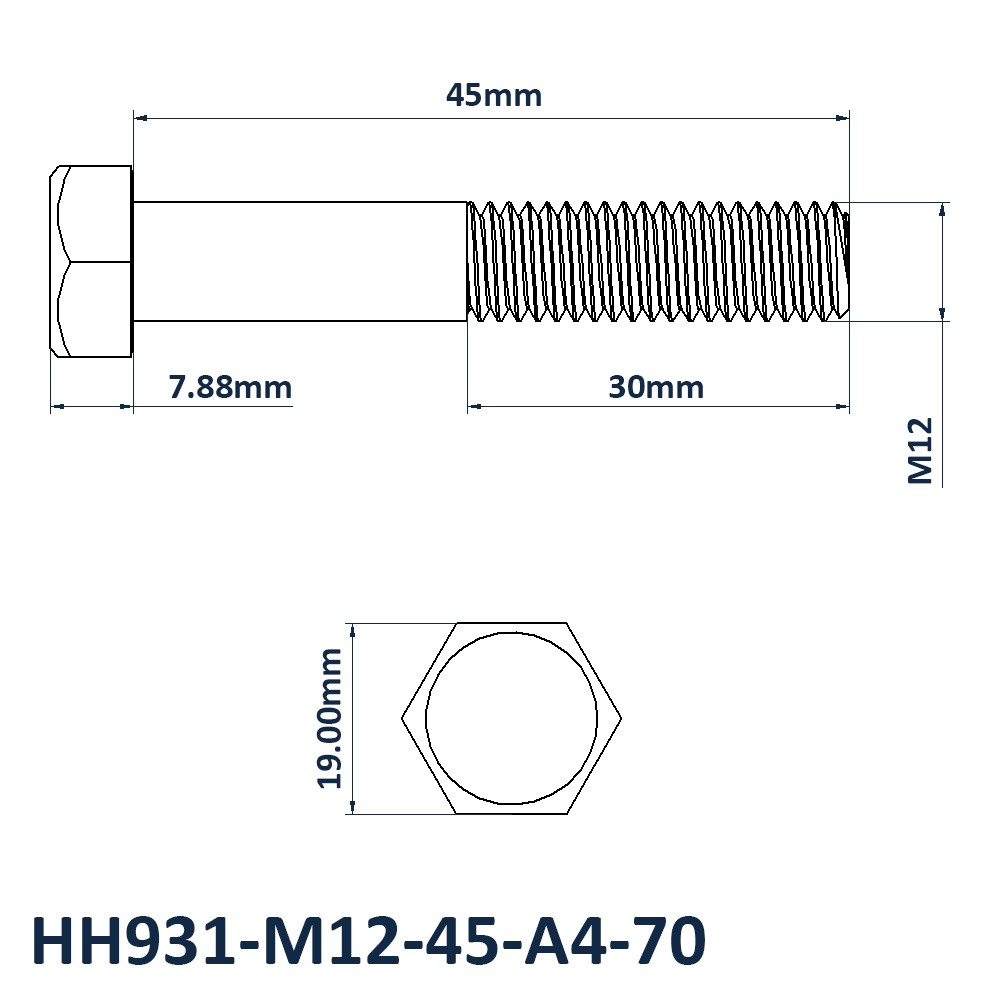

M12 x 45mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M12
- Length: 45mm
- Threaded Length: 30mm
- Pitch: 1.75mm
- Across Flats: 19mm
- Head Height: 7.9mm
- Material: A4-80 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
