M24 x 110mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £10.24 | £12.29 |
| 100 - 999 | £9.14 | £10.97 |
| 1000 + | £5.85 | £7.02 |
Product Specification
| Thread Size | M24 |
| Pitch | 3.00mm |
| Length | 110mm |
| Threaded Length | 54mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 36mm |
| Head Height | 15.4mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M24 x 110mm Hex Head Bolt DIN 931 | A4-80 Stainless Steel
This M24 x 110mm metric hex bolt supports sheet metal fabrication by combining a high-torque hex head with a part threaded shank. The 3.00mm pitch, 36mm across flats and 15.4mm head height give clear installation reference points. The result is a hex head machine bolt that suits precise replacement work as well as new build assemblies.
Use with suitable washers to distribute load and with matching nuts where a through-bolted joint is required. The 15.4mm head height gives the installer a clear external drive for workshop and site fitting.
Common Applications
- Joining folded brackets in sheet metal fabrication
- Building cover plates using M24 metric hardware
- Aligning enclosure frames where A4-80 Stainless Steel is specified
- Replacing mechanical fixing points requiring DIN 931 part threaded bolts

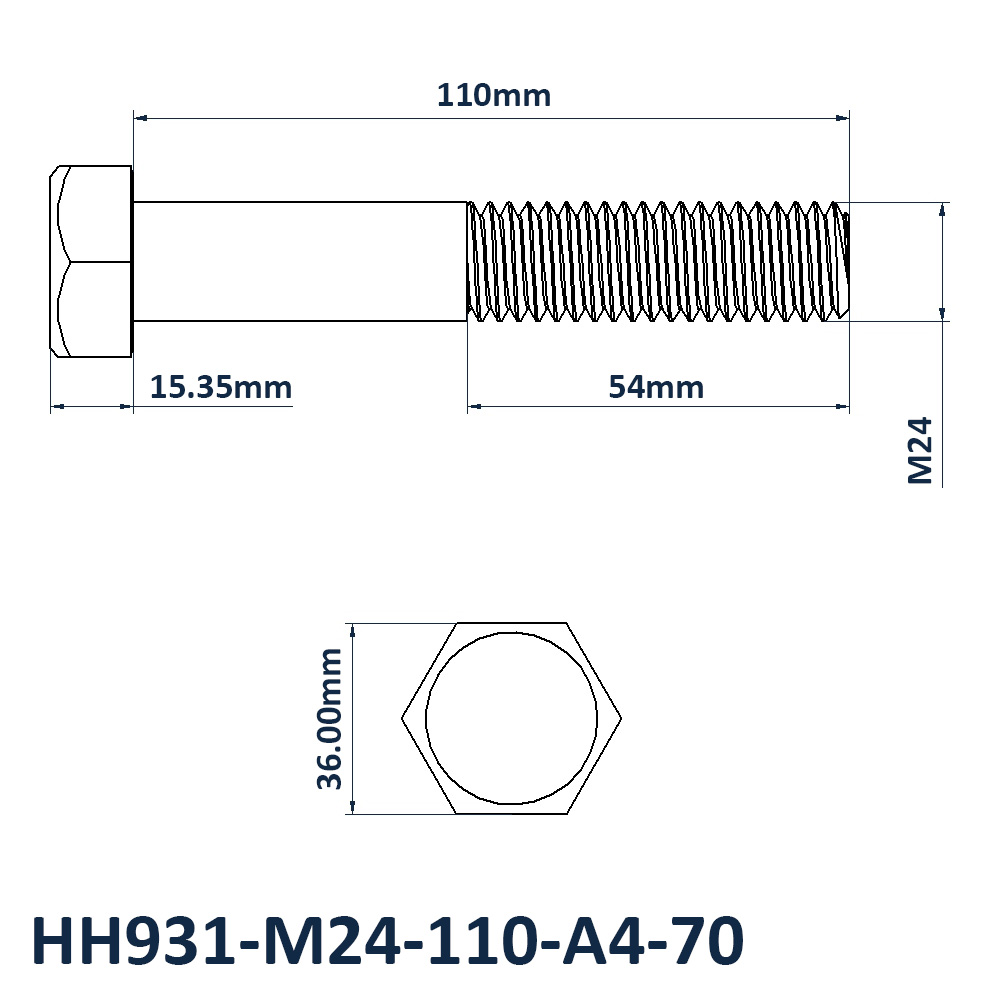

M24 x 110mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M24
- Length: 110mm
- Threaded Length: 54mm
- Pitch: 3.00mm
- Across Flats: 36mm
- Head Height: 15.4mm
- Material: A4-80 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
