M27 x 70mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £40.52 | £48.63 |
| 100 - 999 | £36.18 | £43.42 |
| 1000 + | £23.16 | £27.79 |
£48.63 / each
.png)
Product Specification
| Thread Size | M27 |
| Pitch | 3.00mm |
| Length | 70mm |
| Threaded Length | 60mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 41mm |
| Head Height | 17.4mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M27 x 70mm Hex Head Bolt DIN 931 | A4-80 Stainless Steel
Suitable for OEM production, this M27 x 70mm part thread bolt is used where the unthreaded shank can help locate components before the joint is fully tightened. The 17.4mm head height and 41mm across flats dimensions support straightforward tool selection. The result is a large diameter hex bolt that suits precise replacement work as well as new build assemblies.
Use with suitable washers to distribute load and with matching nuts where a through-bolted joint is required. The 17.4mm head height gives the installer a clear external drive for workshop and site fitting.
Common Applications
- Repairing repeatable assemblies in OEM production
- Clamping factory-built frames using M27 metric hardware
- Fastening subassembly joints where A4-80 Stainless Steel is specified
- Installing serviceable product builds requiring DIN 931 part threaded bolts

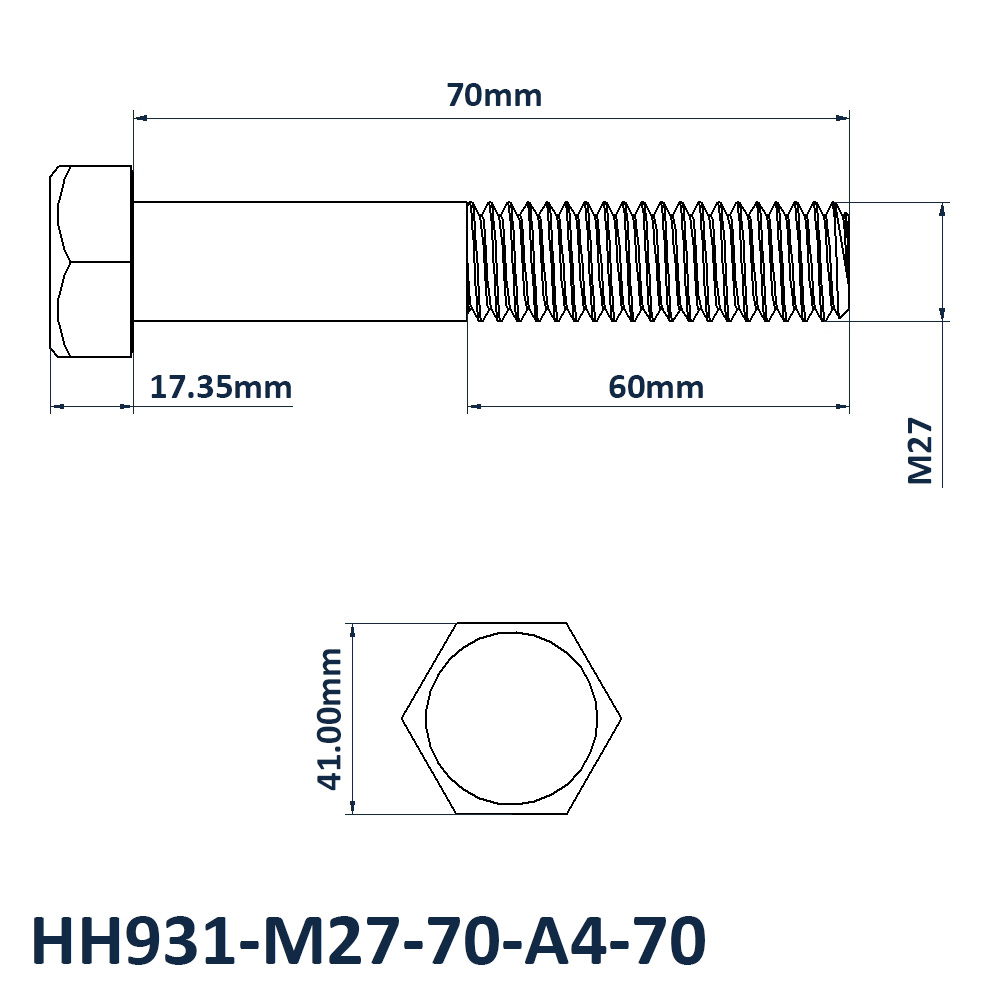

M27 x 70mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M27
- Length: 70mm
- Threaded Length: 60mm
- Pitch: 3.00mm
- Across Flats: 41mm
- Head Height: 17.4mm
- Material: A4-80 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
