M16 x 110mm Hex Bolt - Part Threaded (DIN 931) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.48 | £1.77 |
| 100 - 999 | £1.40 | £1.68 |
| 1000 + | £1.29 | £1.55 |
Product Specification
| Thread Size | M16 |
| Pitch | 2.00mm |
| Length | 110mm |
| Threaded Length | 38mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 24mm |
| Head Height | 10.3mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M16 x 110mm Hex Head Bolt DIN 931 | A2-70 Stainless Steel
Suitable for mining and quarry equipment, this M16 x 110mm part thread bolt is used where the unthreaded shank can help locate components before the joint is fully tightened. The 10.3mm head height and 24mm across flats dimensions support straightforward tool selection. The result is a structural hex bolt that suits precise replacement work as well as new build assemblies.
Use with suitable washers to distribute load and with matching nuts where a through-bolted joint is required. The A2-70 Stainless Steel grade should be selected around the working environment and load expectations for the assembly.
Common Applications
- Fixing screening machinery in mining and quarry equipment
- Upgrading hopper guards using M16 metric hardware
- Securing heavy brackets where A2-70 Stainless Steel is specified
- Mounting service covers requiring DIN 931 part threaded bolts

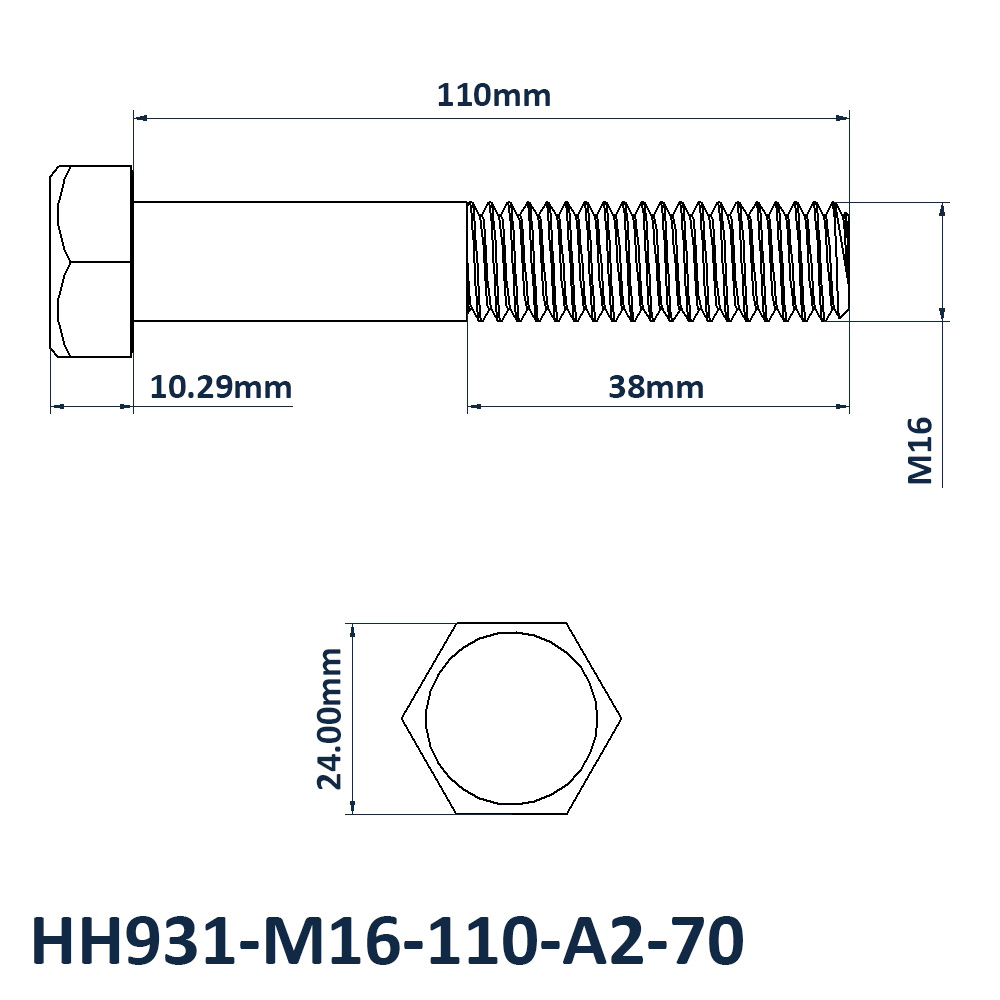

M16 x 110mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M16
- Length: 110mm
- Threaded Length: 38mm
- Pitch: 2.00mm
- Across Flats: 24mm
- Head Height: 10.3mm
- Material: A2-70 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
