M30 x 100mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £12.72 | £15.27 |
| 100 - 999 | £12.08 | £14.50 |
| 1000 + | £11.13 | £13.36 |
Product Specification
| Thread Size | M30 |
| Pitch | 3.50mm |
| Length | 100mm |
| Threaded Length | 66mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 46mm |
| Head Height | 19.1mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M30 x 100mm Hex Head Bolt DIN 931 | A4-70 Stainless Steel
This M30 x 100mm hexagon head bolt is produced to DIN 931 for applications that need a part threaded fastener rather than a fully threaded screw. The A4-70 Stainless Steel finish suits external, wash-down and coastal applications where A4 stainless steel is preferred while the hex head allows controlled tightening with standard tooling. Choose this M30 DIN 931 bolt where a part threaded shank is preferred for location and clamping.
The metric coarse thread supports dependable nut engagement, helping installers create repeatable joints across production or repair work. The 66mm threaded section gives enough engagement for matched hardware while the 100mm overall length supports through-bolting and spaced components.
Common Applications
- Mounting hinge plates in fencing and gate fabrication
- Assembling post brackets using M30 metric hardware
- Supporting frame connectors where A4-70 Stainless Steel is specified
- Maintaining external hardware requiring DIN 931 part threaded bolts

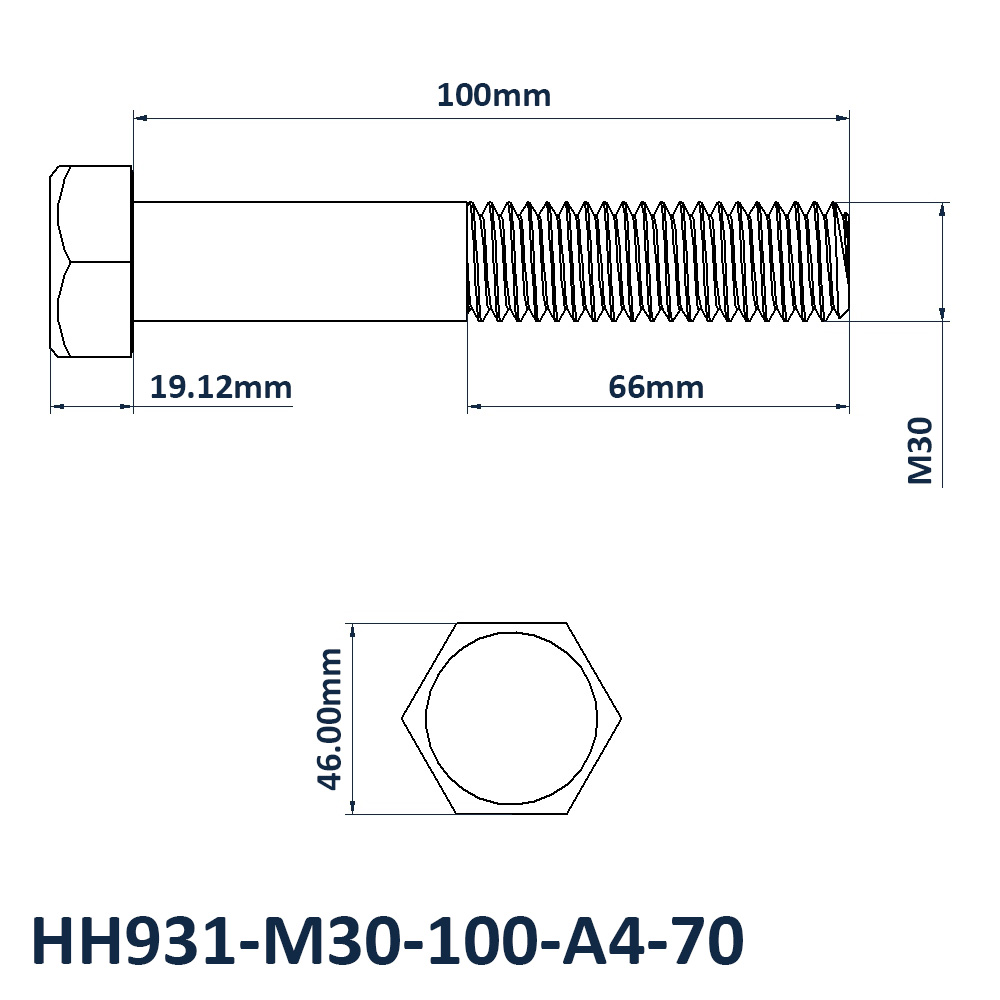

M30 x 100mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M30
- Length: 100mm
- Threaded Length: 66mm
- Pitch: 3.50mm
- Across Flats: 46mm
- Head Height: 19.1mm
- Material: A4-70 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
