M5 x 100mm Hex Bolt - Part Threaded (DIN 931) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.35 | £0.42 |
| 100 - 999 | £0.33 | £0.40 |
| 1000 + | £0.31 | £0.37 |
Product Specification
| Thread Size | M5 |
| Pitch | 0.80mm |
| Length | 100mm |
| Threaded Length | 16mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 8mm |
| Head Height | 3.7mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M5 x 100mm Hex Head Bolt DIN 931 | A2-70 Stainless Steel
When a bolted joint needs both shear support and threaded engagement, this M5 x 100mm hex head bolt provides a dependable DIN 931 option for packaging machinery assembly. Its 16mm threaded length gives a measured engagement zone for compatible nuts or tapped parts. It is a practical option for buyers searching for a A2-70 Stainless Steel hex bolt with measured DIN 931 geometry.
The partially threaded design is useful where the shank passes through one component and the threaded end clamps against the mating part, helping reduce movement in bracketed assemblies. It is especially useful where teams need standard stock for packaging machinery assembly without moving to a fully threaded screw.
Common Applications
- Aligning machine guards in packaging machinery assembly
- Replacing adjustable guide rails using M5 metric hardware
- Fixing production line frames where A2-70 Stainless Steel is specified
- Upgrading sensor brackets requiring DIN 931 part threaded bolts

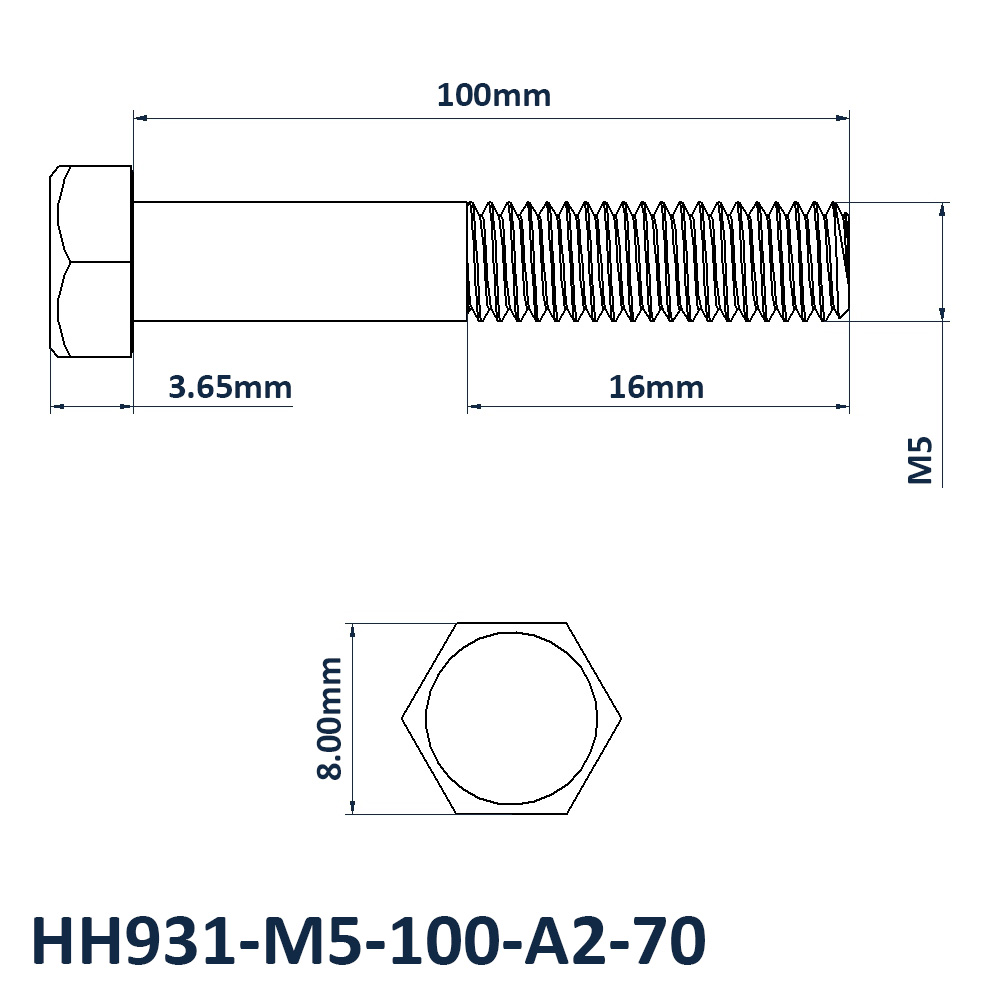

M5 x 100mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M5
- Length: 100mm
- Threaded Length: 16mm
- Pitch: 0.80mm
- Across Flats: 8mm
- Head Height: 3.7mm
- Material: A2-70 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
