M4 x 18mm Set Screw - Hex Head (DIN 933) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.04 | £0.05 |
| 100 - 999 | £0.03 | £0.04 |
| 1000 + | £0.03 | £0.03 |
Product Specification
| Thread Size | M4 |
| Length | 18mm |
| Pitch | 0.70mm |
| Material | A2 Stainless Steel |
| Across Flats | 7mm |
| Head Height | 3.00mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M4 x 18mm Hex Set Screw | DIN 933 | A2 Stainless Steel
Built around a fully threaded shank, this M4 x 18mm Hex Set Screw supports secure assembly work where nut engagement, clamp load and accessible tightening are all important.
The A2 stainless steel body is suitable for clean internal assemblies and many external applications where a non-rusting finish is preferred. The fully threaded layout helps maintain grip along the complete shank, which is helpful for slotted brackets, adjustment points and serviceable assemblies.
Common Applications
- Temporary fixtures, prototypes and adjustable mechanical test builds
- Machinery guarding, motor mounts and equipment service panels
- OEM production builds where a fully threaded DIN 933 fastener is specified
- Marine fittings, exposed brackets and corrosion-sensitive installations
Why This DIN 933 Set Screw Works Well
- DIN 933 specification gives a clear standard for replacement and repeat ordering
- A2 Stainless Steel construction supports the intended environment and fastening load
- External hex drive gives practical access where internal drive screws may clog or round off

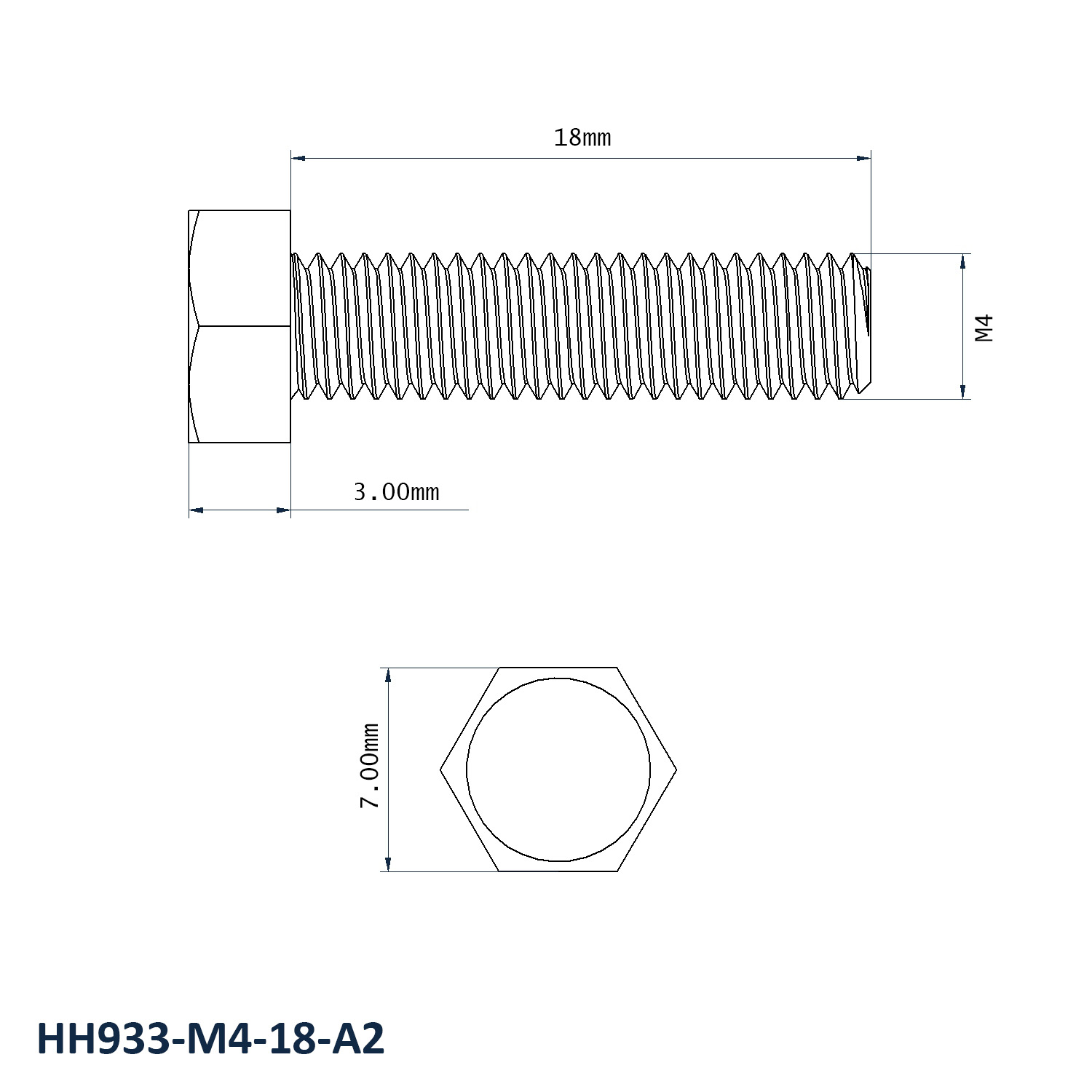

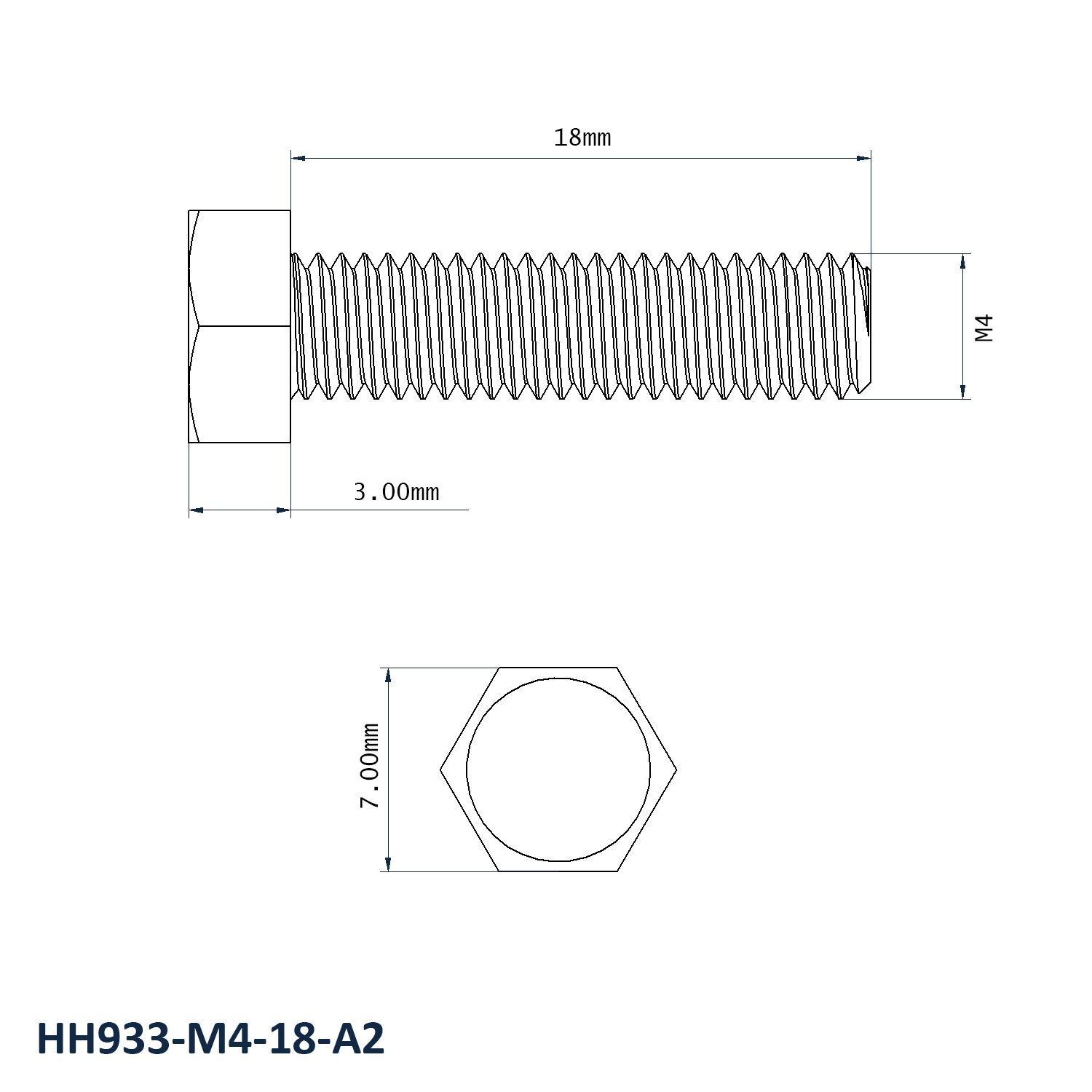

M4 x 18mm Hex Set Screw Dimensions
- Thread Size: M4
- Length: 18mm
- Pitch: 0.7mm
- Across Flats: 7mm
- Head Height: 3mm
- Material: A2 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
