M6 x 12mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.07 | £0.09 |
| 100 - 999 | £0.07 | £0.08 |
| 1000 + | £0.05 | £0.06 |
Product Specification
| Thread Size | M6 |
| Length | 12mm |
| Pitch | 1.00mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 10mm |
| Head Height | 4.20mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M6 x 12mm Hex Set Screw | DIN 933 | A4-70 Stainless Steel
The M6 x 12mm size gives this Hex Set Screw a useful fixing profile for site maintenance teams, with a hex head that can be tightened using conventional workshop tooling.
The A4-70 stainless steel grade is selected for outdoor, marine and washdown environments where resistance to corrosion is a key requirement. The 10mm across flats head gives a clear external drive point, while the 1mm pitch supports predictable matching with compatible nuts and threaded parts.
Common Applications
- Heavy duty mounting plates, high load brackets and plant support work
- External plant, chemical handling areas and marine-grade maintenance work
- Agricultural equipment repairs, gate hardware and workshop maintenance
- Inspection benches, test rigs and adjustable jig construction
Key Benefits For Assembly Work
- 1mm pitch provides predictable thread compatibility across standard metric components
- 4.2mm head height helps with clearance planning during equipment design
- A4 stainless steel hex set screw wording gives this SKU a clear use case within the broader DIN 933 set screw range

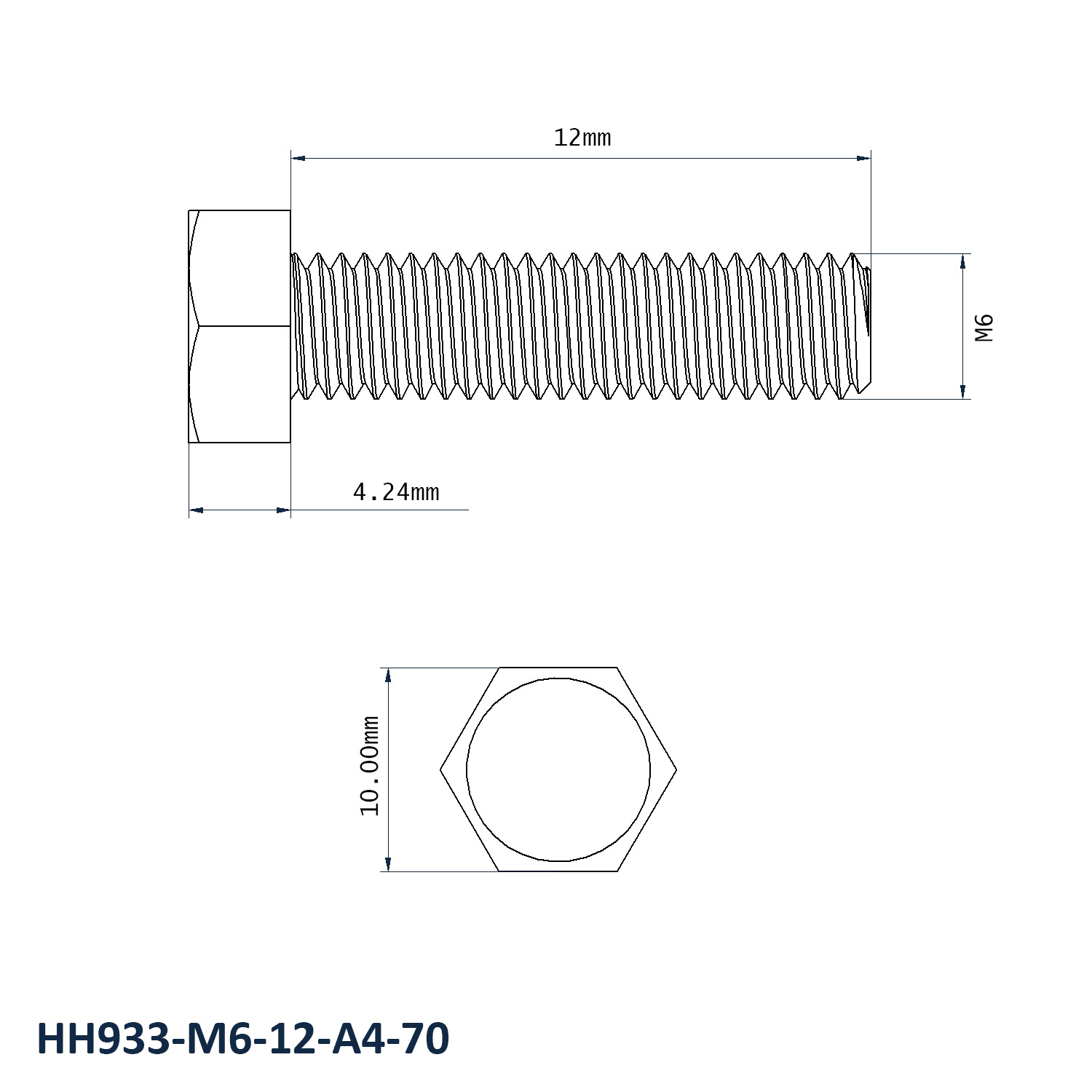

M6 x 12mm Hex Set Screw Dimensions
- Thread Size: M6
- Length: 12mm
- Pitch: 1mm
- Across Flats: 10mm
- Head Height: 4.2mm
- Material: A4-70 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
