M8 x 16mm Set Screw - Hex Head (DIN 933) | A2-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.19 | £0.23 |
| 100 - 999 | £0.16 | £0.19 |
| 1000 + | £0.08 | £0.10 |
£0.23 / each
.png)
Product Specification
| Thread Size | M8 |
| Length | 16mm |
| Pitch | 1.25mm |
| Material | A2-80 Stainless Steel |
| Across Flats | 13mm |
| Head Height | 5.50mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M8 x 16mm Hex Set Screw | DIN 933 | A2-80 Stainless Steel
The M8 x 16mm size gives this Hex Set Screw a useful fixing profile for production line equipment, with a hex head that can be tightened using conventional workshop tooling.
The A2-80 stainless steel grade gives improved strength over standard stainless options while retaining a clean, corrosion-resistant finish. The hex head design gives better tool contact than a low profile drive when installers need reliable torque transfer during maintenance or assembly.
Common Applications
- Retail display frames, commercial furniture and modular support rails
- Automation cell guarding, robot perimeter frames and production safety panels
- General workshop repairs, metal brackets and production equipment builds
- Agricultural equipment repairs, gate hardware and workshop maintenance
Installation Benefits
- 1.25mm pitch provides predictable thread compatibility across standard metric components
- 5.5mm head height helps with clearance planning during equipment design
- Stainless steel hex set screw wording gives this SKU a clear use case within the broader DIN 933 set screw range

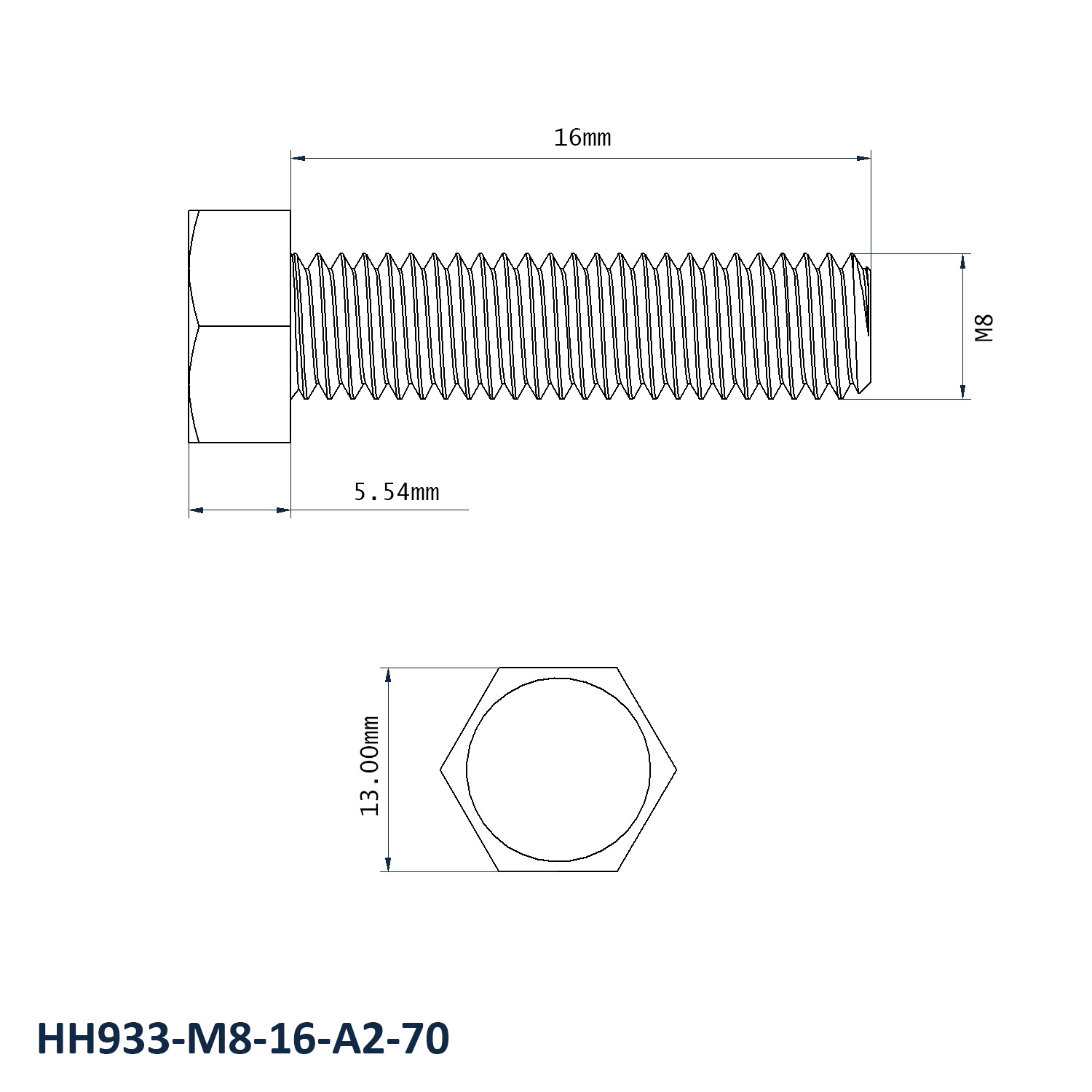

M8 x 16mm Hex Set Screw Dimensions
- Thread Size: M8
- Length: 16mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 5.5mm
- Material: A2-80 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
