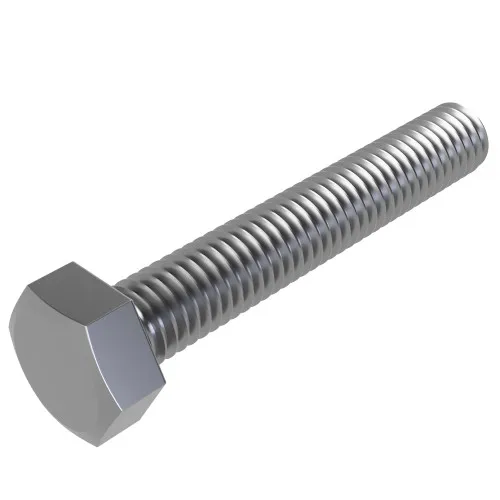

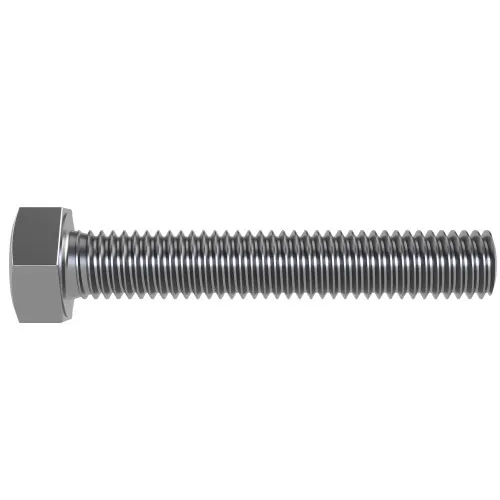

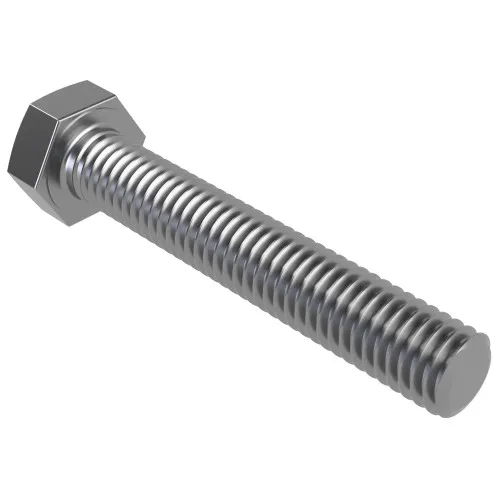

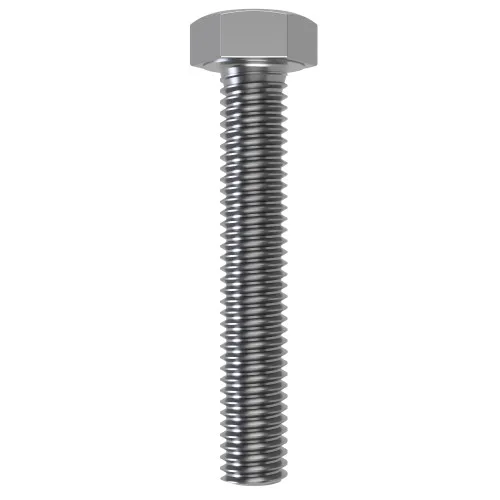

M14 x 20mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £2.44 | £2.93 |
| 100 - 999 | £2.08 | £2.49 |
| 1000 + | £1.10 | £1.32 |
£2.93 / each
.png)
Product Specification
| Thread Size | M14 |
| Length | 20mm |
| Pitch | 2.00mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 22mm |
| Head Height | 9.10mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M14 x 20mm Hex Set Screw | DIN 933 | A4-80 Stainless Steel
This M14 x 20mm Hex Set Screw combines a fully threaded body with a hex head drive, giving installers a secure fixing for steel channel assemblies.
The A4-80 stainless steel specification offers strong corrosion resistance with a higher tensile grade for exposed equipment, marine projects and demanding external assemblies. The fully threaded layout helps maintain grip along the complete shank, which is helpful for slotted brackets, adjustment points and serviceable assemblies.
Common Applications
- Electrical enclosures, control cabinets and instrument housings
- Lightweight panel work, plastic assemblies and non-metallic fixings
- Heavy duty mounting plates, high load brackets and plant support work
- Fabricated brackets, channel sections and structural steel details
Key Benefits For Assembly Work
- Fully threaded 20mm body helps support consistent engagement through the joint
- 22mm across flats head allows fitting with common spanners and socket tools
- The shorter body suits brackets, covers and service panels where a neat fixing is required without excess thread beyond the joint.

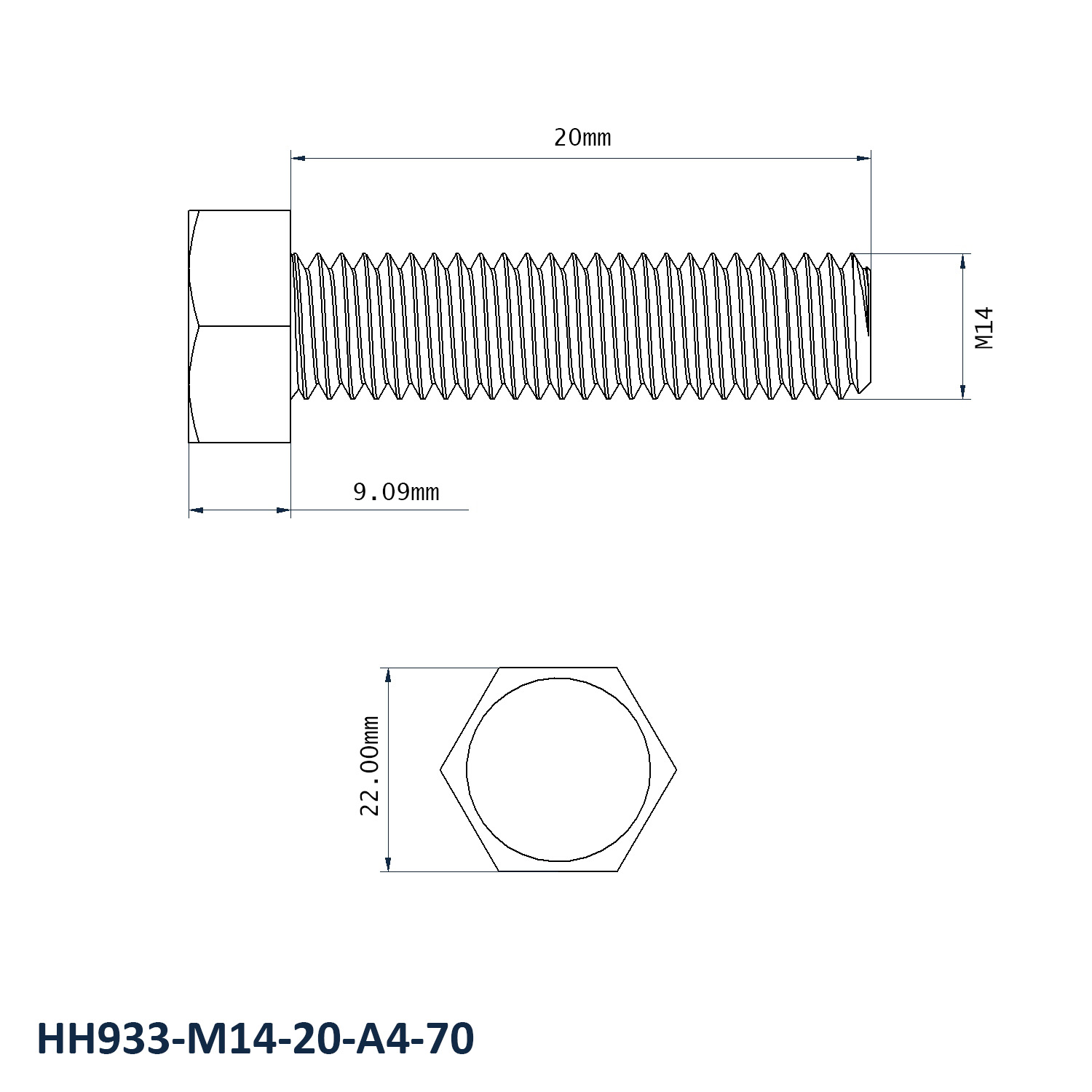

M14 x 20mm Hex Set Screw Dimensions
- Thread Size: M14
- Length: 20mm
- Pitch: 2mm
- Across Flats: 22mm
- Head Height: 9.1mm
- Material: A4-80 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
