M24 x 45mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £10.04 | £12.05 |
| 100 - 999 | £8.53 | £10.24 |
| 1000 + | £4.52 | £5.42 |
Product Specification
| Thread Size | M24 |
| Length | 45mm |
| Pitch | 3.00mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 36mm |
| Head Height | 15.40mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M24 x 45mm Hex Set Screw | DIN 933 | A4-80 Stainless Steel
Built around a fully threaded shank, this M24 x 45mm Hex Set Screw supports secure assembly work where nut engagement, clamp load and accessible tightening are all important.
The A4-80 stainless steel specification offers strong corrosion resistance with a higher tensile grade for exposed equipment, marine projects and demanding external assemblies. The 36mm across flats head gives a clear external drive point, while the 3mm pitch supports predictable matching with compatible nuts and threaded parts.
Common Applications
- Fabricated brackets, channel sections and structural steel details
- Inspection benches, test rigs and adjustable jig construction
- Marine fittings, exposed brackets and corrosion-sensitive installations
- Temporary fixtures, prototypes and adjustable mechanical test builds
Installation Benefits
- DIN 933 specification gives a clear standard for replacement and repeat ordering
- A4-80 Stainless Steel construction supports the intended environment and fastening load
- External hex drive gives practical access where internal drive screws may clog or round off

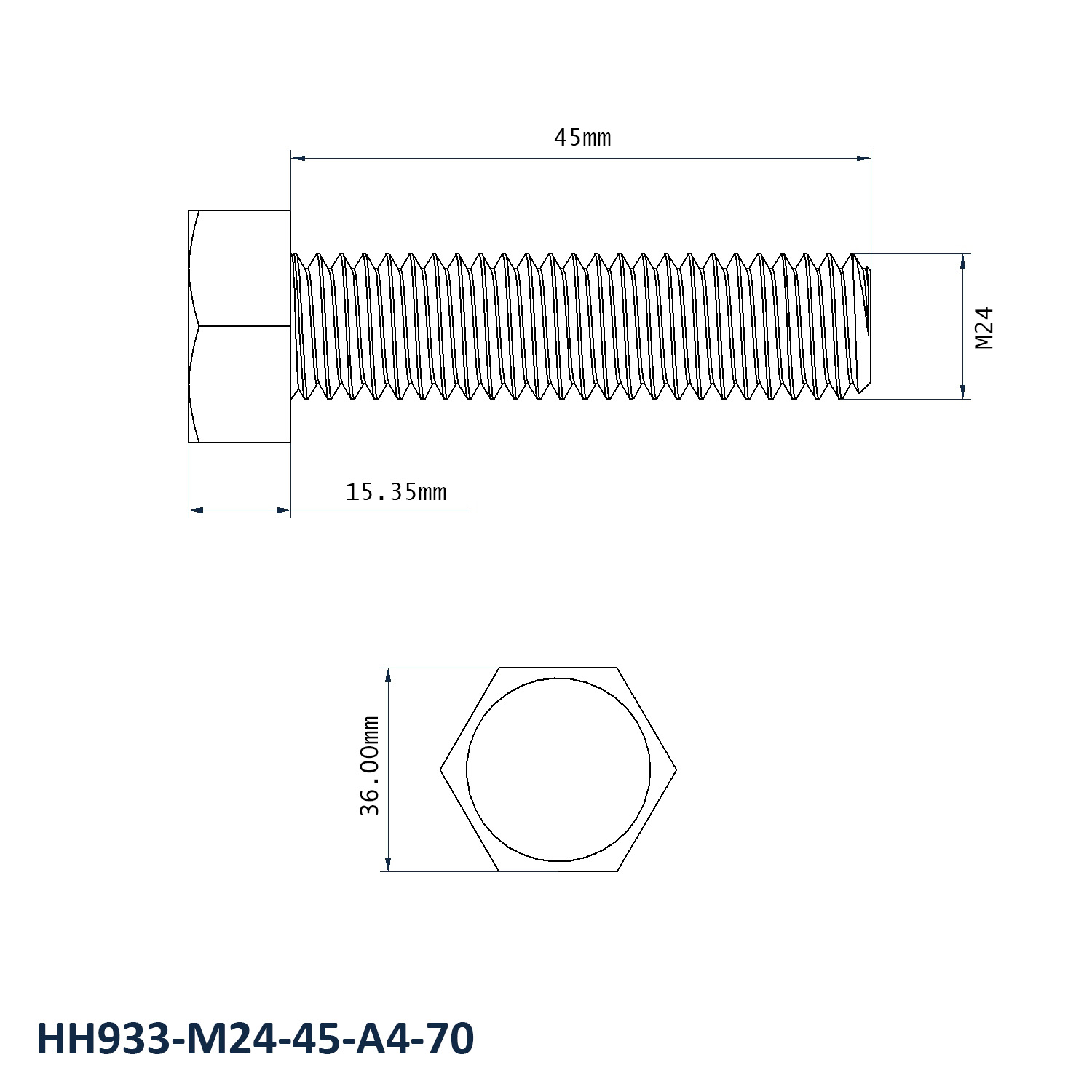

M24 x 45mm Hex Set Screw Dimensions
- Thread Size: M24
- Length: 45mm
- Pitch: 3mm
- Across Flats: 36mm
- Head Height: 15.4mm
- Material: A4-80 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
