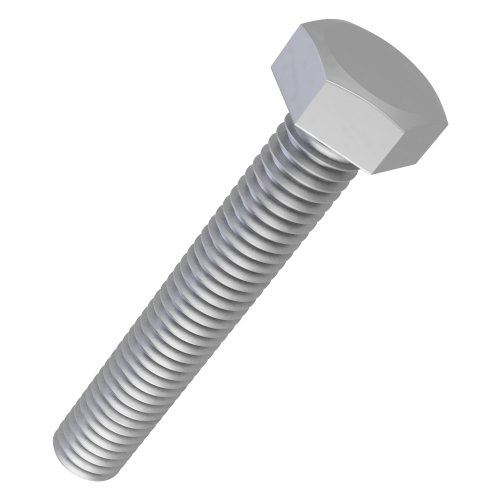

M16 x 90mm Set Screw - Hex Head (DIN 933) | 8.8 Steel Galvanised
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.92 | £1.10 |
| 100 - 499 | £0.66 | £0.79 |
| 500 - 999 | £0.57 | £0.69 |
| 1000 - 4999 | £0.51 | £0.61 |
| 5000 + | £0.46 | £0.55 |
£1.10 / each
Product Specification
| Thread Size | M16 |
| Length | 90mm |
| Pitch | 2.00mm |
| Material | 8.8 Steel Galvanised |
| Across Flats | 24mm |
| Head Height | 10.30mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M16 x 90mm Hex Set Screw | DIN 933 | Grade 8.8 Galvanised Steel
This M16 x 90mm Hex Set Screw combines a fully threaded body with a hex head drive, giving installers a secure fixing for mechanical support rails.
The grade 8.8 galvanised steel finish provides a tougher coated option for exposed steelwork, fabrication and outdoor equipment repairs. The 24mm across flats head gives a clear external drive point, while the 2mm pitch supports predictable matching with compatible nuts and threaded parts.
Common Applications
- Construction fixings, steel support plates and equipment bases
- Construction hardware where a coated steel fastener is preferred
- Retail display frames, commercial furniture and modular support rails
- Temporary fixtures, prototypes and adjustable mechanical test builds
Why Choose This Fully Threaded Hex Screw?
- Fully threaded 90mm body helps support consistent engagement through the joint
- 24mm across flats head allows fitting with common spanners and socket tools
- The longer shank is well suited to deeper assemblies, spacer packs and components that need extended thread engagement.
M16 x 90mm Hex Set Screw Dimensions
- Thread Size: M16
- Length: 90mm
- Pitch: 2mm
- Across Flats: 24mm
- Head Height: 10.3mm
- Head Style: Hex Head
- Standard: DIN 933
- Material: 8.8 Steel Galvanised
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
