M2.5 x 18mm Set Screw - Hex Head (DIN 933) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.27 | £0.32 |
| 100 - 999 | £0.20 | £0.24 |
| 1000 + | £0.16 | £0.19 |
Product Specification
| Thread Size | M2.5 |
| Length | 18mm |
| Pitch | 0.45mm |
| Material | A2 Stainless Steel |
| Across Flats | 5mm |
| Head Height | 1.80mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M2.5 x 18mm Hex Set Screw | DIN 933 | A2 Stainless Steel
The M2.5 x 18mm size gives this Hex Set Screw a useful fixing profile for inspection station frames, with a hex head that can be tightened using conventional workshop tooling.
The A2 stainless steel body is suitable for clean internal assemblies and many external applications where a non-rusting finish is preferred. The 1.8mm head height and 5mm across flats dimension make it easy to check tool access before fitting into machinery or framework.
Common Applications
- Repair teams replacing worn fixings on machinery and production assets
- General engineering where a hex head screw is easier to access than an internal drive
- Commercial equipment where a standard hex head screw is quick to install
- Fabricated brackets, channel sections and structural steel details
Why This DIN 933 Set Screw Works Well
- 0.45mm pitch provides predictable thread compatibility across standard metric components
- 1.8mm head height helps with clearance planning during equipment design
- Stainless steel hex set screw wording gives this SKU a clear use case within the broader DIN 933 set screw range

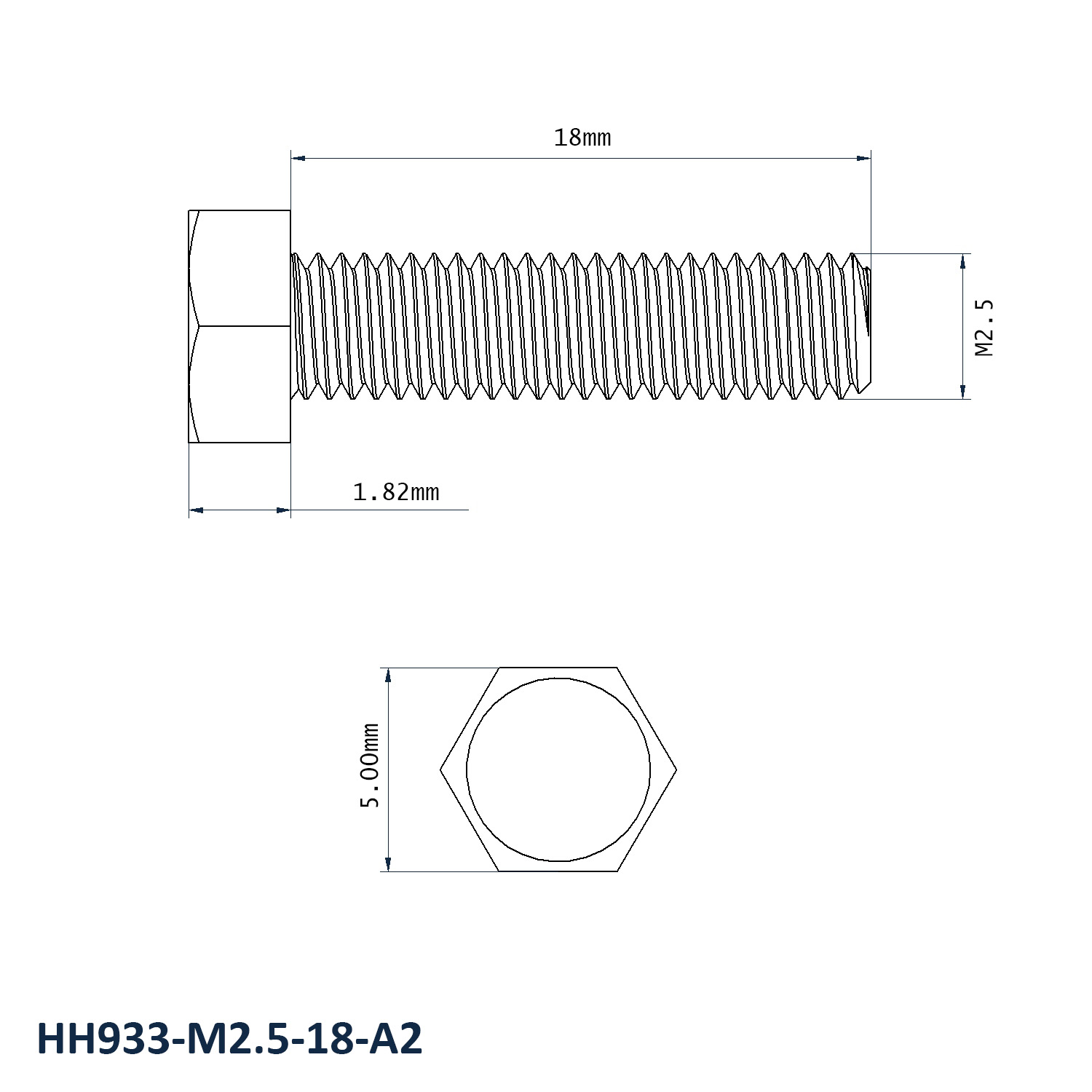

M2.5 x 18mm Hex Set Screw Dimensions
- Thread Size: M2.5
- Length: 18mm
- Pitch: 0.45mm
- Across Flats: 5mm
- Head Height: 1.8mm
- Material: A2 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
