M20 x 100mm Set Screw - Hex Head (DIN 933) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £2.61 | £3.13 |
| 100 - 999 | £2.35 | £2.82 |
| 1000 + | £1.97 | £2.36 |
Product Specification
| Thread Size | M20 |
| Length | 100mm |
| Pitch | 2.50mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 30mm |
| Head Height | 12.90mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00

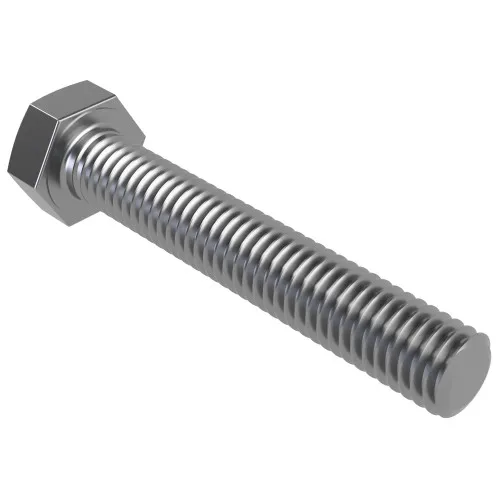

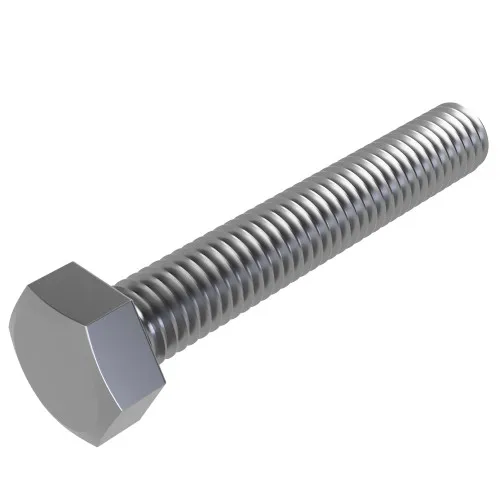

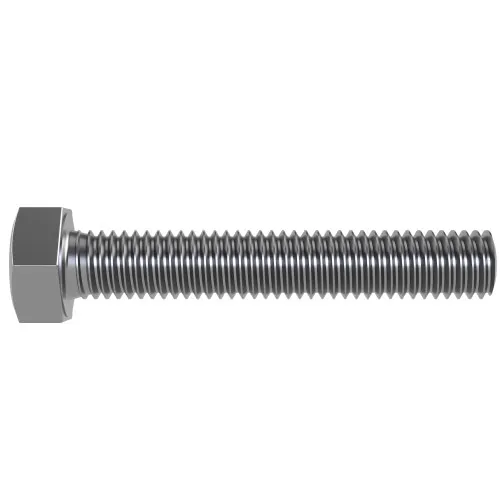

M20 x 100mm Hex Set Screw | DIN 933 | A2-70 Stainless Steel
This M20 x 100mm Hex Set Screw combines a fully threaded body with a hex head drive, giving installers a secure fixing for engineering prototypes.
The A2-70 stainless steel finish provides dependable corrosion resistance for machinery builds, enclosure work and general engineering use. Its DIN 933 format is especially useful where a fastener needs to pass through one component and clamp securely into a nut, tapped hole or insert.
Common Applications
- General workshop repairs, metal brackets and production equipment builds
- Machinery guarding, motor mounts and equipment service panels
- Agricultural equipment repairs, gate hardware and workshop maintenance
- OEM production builds where a fully threaded DIN 933 fastener is specified
Key Benefits For Assembly Work
- Fully threaded 100mm body helps support consistent engagement through the joint
- 30mm across flats head allows fitting with common spanners and socket tools
- The longer shank is well suited to deeper assemblies, spacer packs and components that need extended thread engagement.

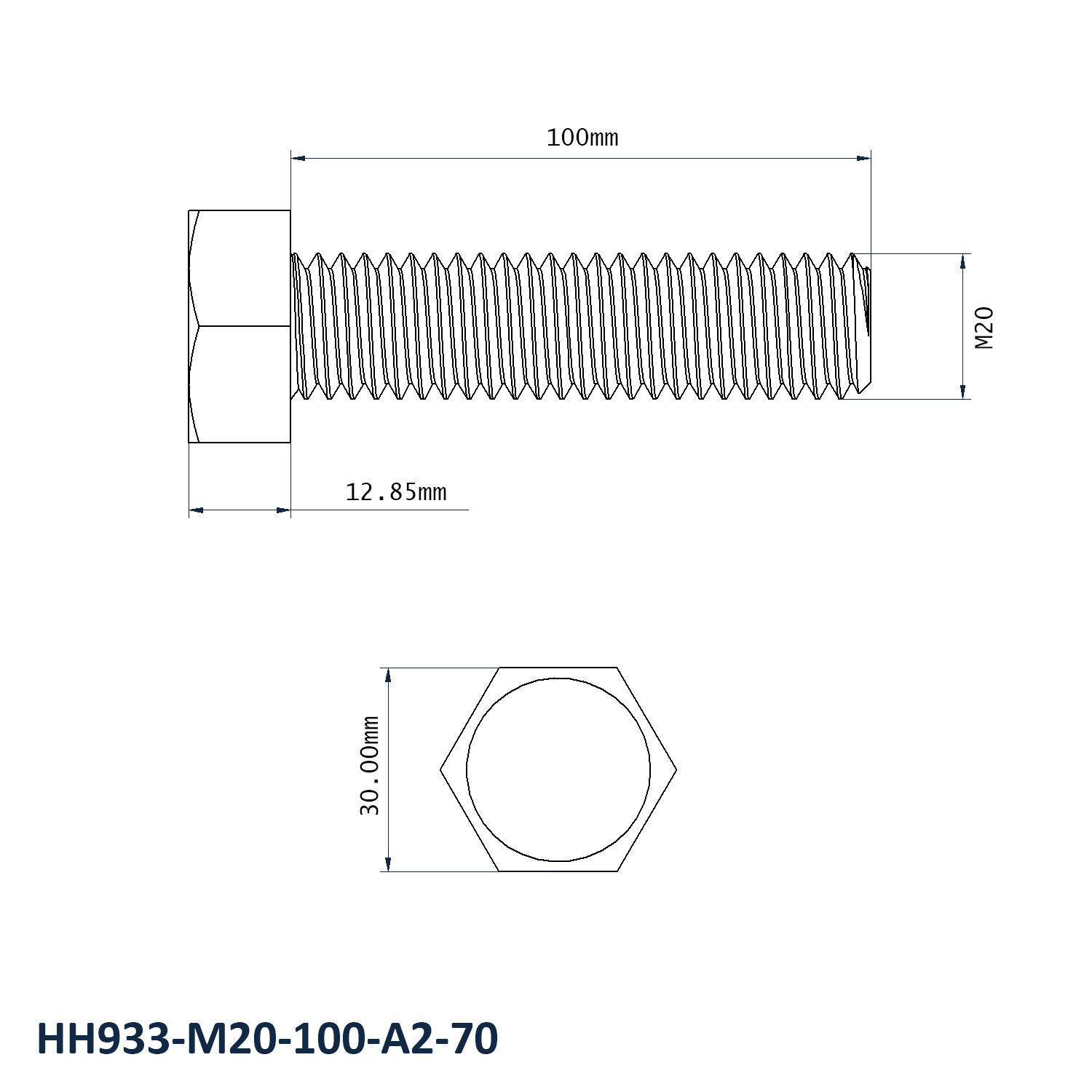

M20 x 100mm Hex Set Screw Dimensions
- Thread Size: M20
- Length: 100mm
- Pitch: 2.5mm
- Across Flats: 30mm
- Head Height: 12.9mm
- Material: A2-70 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
