M22 x 50mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £5.67 | £6.80 |
| 100 - 999 | £4.72 | £5.66 |
| 1000 + | £3.40 | £4.08 |
Product Specification
| Thread Size | M22 |
| Length | 50mm |
| Pitch | 2.50mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 32mm |
| Head Height | 14.40mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M22 x 50mm Hex Set Screw | DIN 933 | A4-70 Stainless Steel
This A4 stainless steel hex set screw is supplied in a M22 thread size with a 50mm length, making it suitable for repeatable fastening in construction brackets. For buyers searching specifically for an M22 set screw, this option gives a clear size-led choice without needing to compare every length in the range.
The A4-70 stainless steel grade is selected for outdoor, marine and washdown environments where resistance to corrosion is a key requirement. The hex head design gives better tool contact than a low profile drive when installers need reliable torque transfer during maintenance or assembly.
Common Applications
- Construction fixings, steel support plates and equipment bases
- Temporary fixtures, prototypes and adjustable mechanical test builds
- Washdown areas, coastal equipment and stainless steel fabrication
- Fabricated brackets, channel sections and structural steel details
Installation Benefits
- Fully threaded 50mm body helps support consistent engagement through the joint
- 32mm across flats head allows fitting with common spanners and socket tools
- The medium length gives flexibility across plate stacks, spacers and general engineering assemblies.

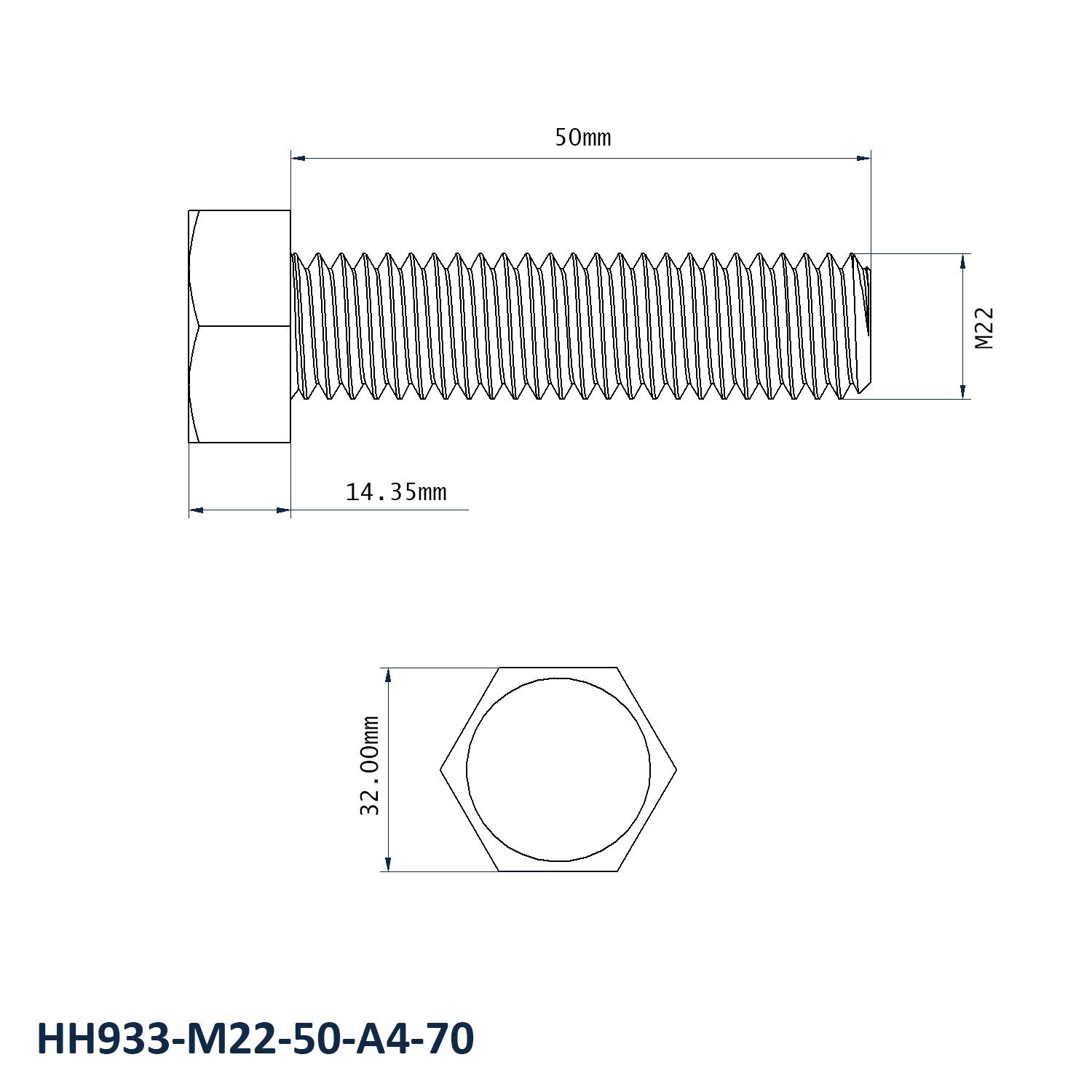

M22 x 50mm Hex Set Screw Dimensions
- Thread Size: M22
- Length: 50mm
- Pitch: 2.5mm
- Across Flats: 32mm
- Head Height: 14.4mm
- Material: A4-70 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
