M22 x 90mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-70 Stainless Steel

Product code: HH933-M22-90-A4-70
View All Specifications
M22 x 90mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-70 Stainless Steel
M22 x 90mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-70 Stainless Steel
M22 x 90mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-70 Stainless Steel
M22 x 90mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-70 Stainless Steel
M22 x 90mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-70 Stainless Steel
M22 x 90mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-70 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £8.32 £9.98
100 - 999 £6.93 £8.32
1000 + £4.99 £5.99

£9.98 / each


Up to 326 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 2,724 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
2,724 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M22
Length 90mm
Pitch 2.50mm
Material A4-70 Stainless Steel
Across Flats 32mm
Head Height 14.40mm
Standard DIN 933
Head Style Hex Head

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M22 x 90mm Hex Set Screw | DIN 933 | A4-70 Stainless Steel

The M22 x 90mm size gives this Hex Set Screw a useful fixing profile for inspection station frames, with a hex head that can be tightened using conventional workshop tooling.

The A4-70 stainless steel grade is selected for outdoor, marine and washdown environments where resistance to corrosion is a key requirement. With a 2.5mm thread pitch and 32mm across flats size, this screw can be specified confidently for repairs, new builds and batch assembly work.

Common Applications

  • HVAC plant rooms, mechanical services and maintenance access points
  • Heavy duty mounting plates, high load brackets and plant support work
  • Electrical enclosures, control cabinets and instrument housings
  • Construction fixings, steel support plates and equipment bases

Why This DIN 933 Set Screw Works Well

  • 2.5mm pitch provides predictable thread compatibility across standard metric components
  • 14.4mm head height helps with clearance planning during equipment design
  • A4 stainless steel hex set screw wording gives this SKU a clear use case within the broader DIN 933 set screw range

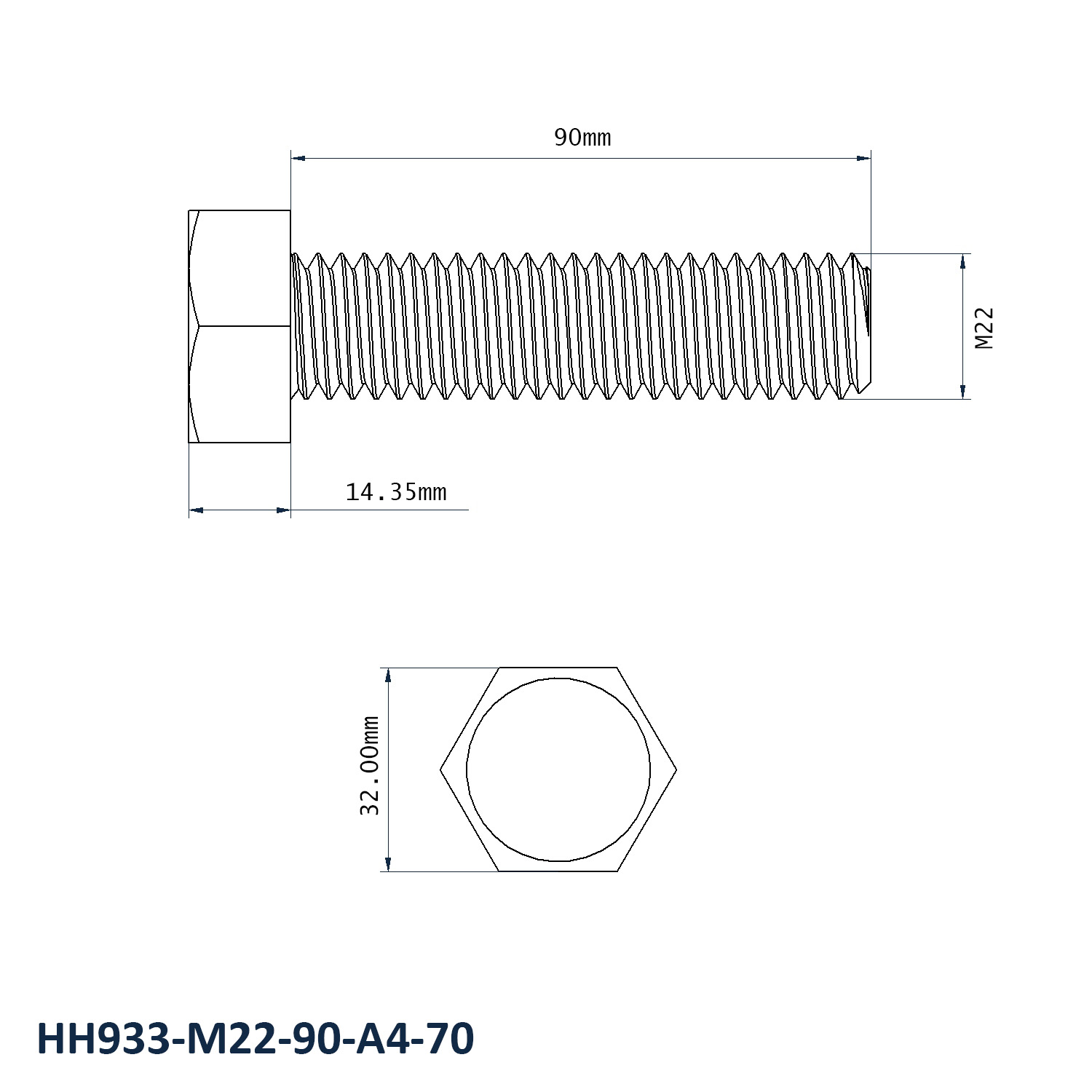

M22 x 90mm Hex Set Screw Dimensions

  • Thread Size: M22
  • Length: 90mm
  • Pitch: 2.5mm
  • Across Flats: 32mm
  • Head Height: 14.4mm
  • Material: A4-70 Stainless Steel
  • Standard: DIN 933
  • Head Style: Hex Head

Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws

Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.

View our full Hex Set Screws DIN 933 range.
