M20 x 25mm Set Screw - Hex Head (DIN 933) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £2.31 | £2.77 |
| 100 - 999 | £2.08 | £2.50 |
| 1000 + | £1.67 | £2.00 |
Product Specification
| Thread Size | M20 |
| Length | 25mm |
| Pitch | 2.50mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 30mm |
| Head Height | 12.90mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M20 x 25mm Hex Set Screw | DIN 933 | A2-70 Stainless Steel
This M20 x 25mm DIN 933 Hex Set Screw offers a dependable fixing choice for commercial equipment builds, particularly where a fully threaded screw is preferred over a partially threaded bolt.
The A2-70 stainless steel finish provides dependable corrosion resistance for machinery builds, enclosure work and general engineering use. The 30mm across flats head gives a clear external drive point, while the 2.5mm pitch supports predictable matching with compatible nuts and threaded parts.
Common Applications
- General engineering where a hex head screw is easier to access than an internal drive
- Commercial equipment where a standard hex head screw is quick to install
- Fabricated brackets, channel sections and structural steel details
- Automotive fixtures, trailer repairs and plant equipment brackets
Key Benefits For Assembly Work
- Suitable for joining two or more parts with compatible nuts, washers or tapped holes
- M20 thread size helps simplify matching with existing fastener systems
- The shorter body suits brackets, covers and service panels where a neat fixing is required without excess thread beyond the joint.

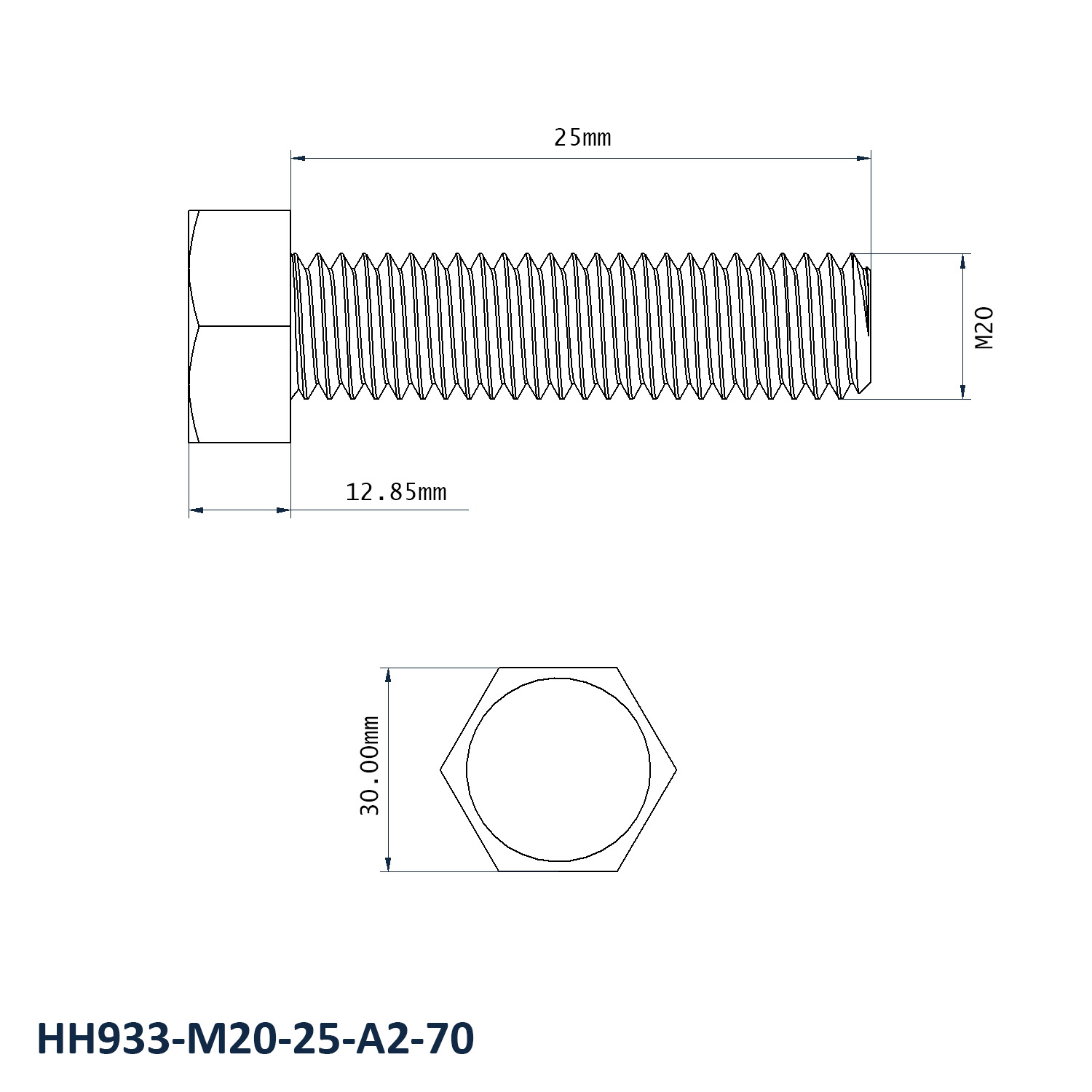

M20 x 25mm Hex Set Screw Dimensions
- Thread Size: M20
- Length: 25mm
- Pitch: 2.5mm
- Across Flats: 30mm
- Head Height: 12.9mm
- Material: A2-70 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
