19.1mm Liquid Tight Blanking Plug - 3.2mm Panel | TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.37 | £1.64 |
| 250 - 499 | £1.30 | £1.56 |
| 500 - 999 | £1.14 | £1.37 |
| 1000 - 2499 | £1.00 | £1.20 |
| 2500 + | £0.90 | £1.08 |
Product Specification
| Mounting Hole Diameter | 19.1mm |
| Panel Thickness | 3.2mm |
| Material | TPE |
| Head Diameter | 29.2mm |
| Shore Hardness | 85 |
| Head Thickness | 8.9mm |
| Overall Height | 13.0mm |
| Flammability Rating | UL94 V-0 |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00

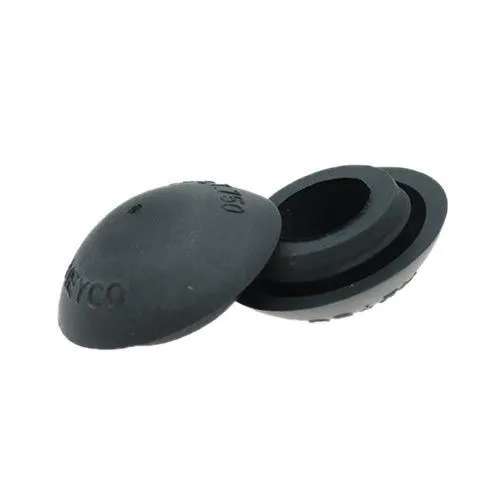

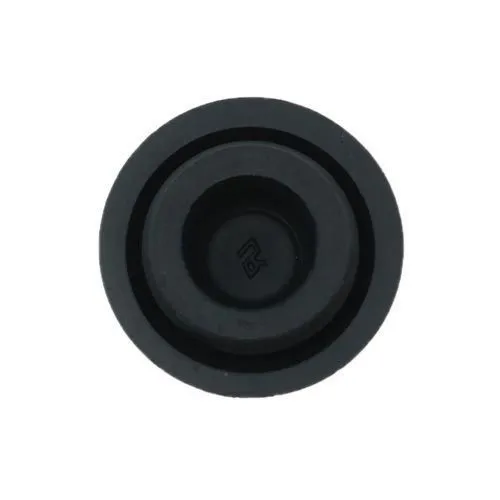

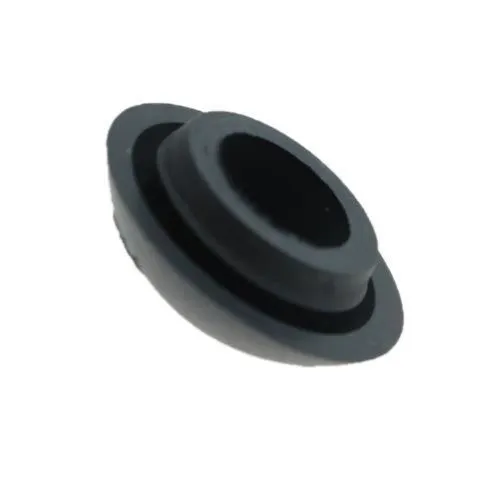

19.1mm Black Liquid Tight Blanking Plug | 3.2mm Panel | TPE
Ideal for panel holes on machinery guards, this 19.1mm TPE rubber blanking plug uses a tapered TPE body to blank unused round holes in panels and enclosures. The black finish, 29.2mm head diameter and 8.9mm head thickness help provide a neat external finish for industrial machinery.
The broad head helps cover the panel face cleanly, making this a practical choice where protection and appearance both matter. This SKU is built around flexible push-fit sealing, with UL94 V-0 flammability performance and a temperature-capable material used across liquid tight blanking plug applications.
What Are Liquid Tight Blanking Plugs?
Liquid tight blanking plugs are flexible sealing plugs used to close unused panel holes, cable entry points and access openings. Their tapered push-fit design helps create a water, oil and dust resistant barrier, making them suitable for enclosures, equipment housings and outdoor installations where a standard plastic blanking plug may not provide enough sealing performance.
Common Applications
- Covering fabrication holes in sheet metal panels
- Sealing guard apertures on production machinery
- Protecting inspection openings after assembly
- Reducing contamination inside equipment covers

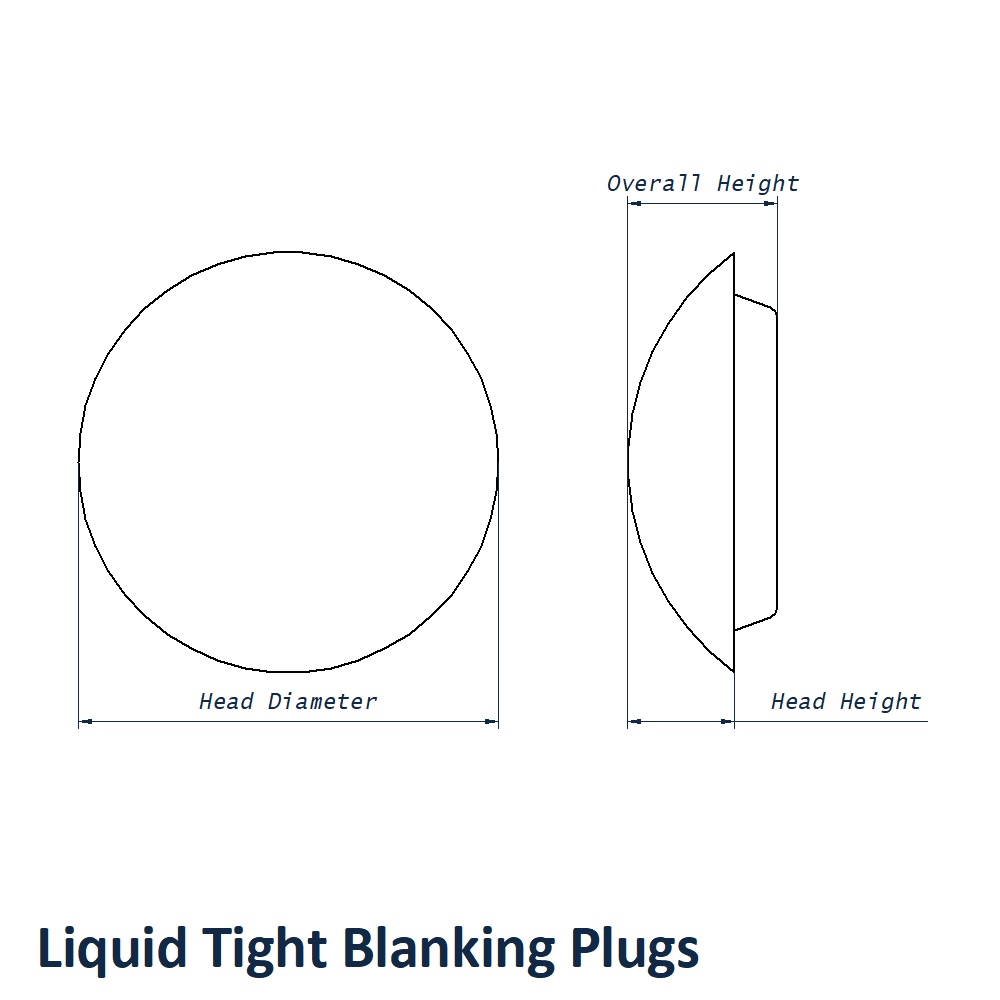

19.1mm Black Liquid Tight Blanking Plug Dimensions
- Mounting Hole Diameter: 19.1mm
- Head Diameter: 29.2mm
- Head Thickness: 8.9mm
- Shore Hardness: 85
- Colour: Black
- Overall Height: 13.0mm
- Panel Thickness: 3.2mm
- Material: TPE
- Flammability Rating: UL94 V-0
Liquid Tight Sealing Support
For more sealing sizes and panel closure options, view our full Liquid Tight Blanking Plugs range. These plugs are commonly selected for projects that need a quick-fitting sealing component for unused holes in electrical, automotive, marine and industrial equipment.
Product Support and Trade Orders
For help checking mounting hole size, panel thickness or suitability for larger project quantities, speak with the Vital Parts team on 01233 713581. Our team can help with product guidance, samples where available and support for repeat trade requirements.
