12.7mm Liquid Tight Blanking Plug - 3.2mm Panel | TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.34 | £1.61 |
| 250 - 499 | £1.28 | £1.54 |
| 500 - 999 | £1.12 | £1.34 |
| 1000 - 2499 | £0.98 | £1.18 |
| 2500 + | £0.89 | £1.07 |
Product Specification
| Mounting Hole Diameter | 12.7mm |
| Panel Thickness | 3.2mm |
| Material | TPE |
| Head Diameter | 23.1mm |
| Shore Hardness | 85 |
| Head Thickness | 7.4mm |
| Overall Height | 11.4mm |
| Flammability Rating | UL94 V-0 |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00

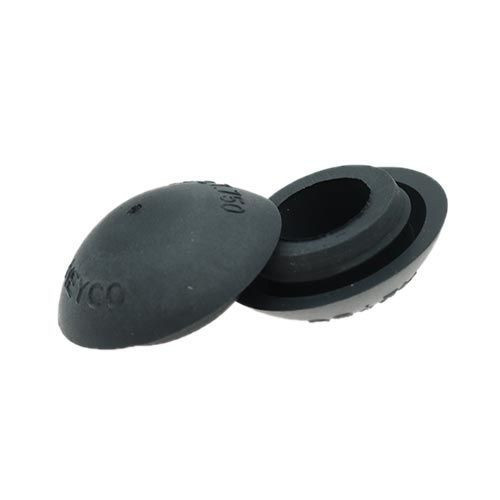

12.7mm Black Liquid Tight Blanking Plug | 3.2mm Panel | TPE
Designed for 12.7mm mounting holes, this black liquid tight blanking plug provides a flexible TPE seal for unused enclosure holes. The 23.1mm head diameter and 11.4mm overall height give clear coverage over the panel face, making it suitable for electrical control panels where unused holes need dependable protection.

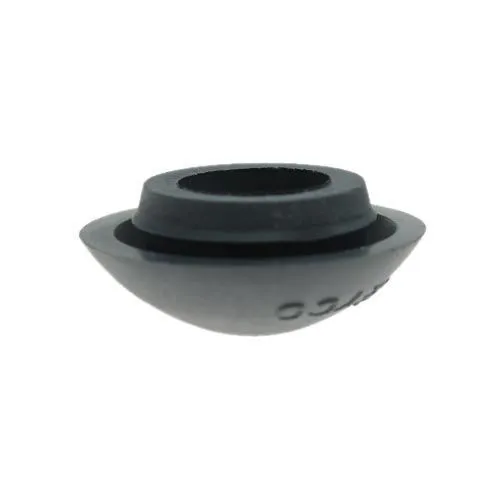

The tapered shank helps the plug seat firmly by hand, creating a dependable seal without screws, adhesives or specialist tooling. This SKU is built around reliable ingress sealing, with UL94 V-0 flammability performance and a temperature-capable material used across liquid tight blanking plug applications.
What Are Liquid Tight Blanking Plugs?
Liquid tight blanking plugs are flexible sealing plugs used to close unused panel holes, cable entry points and access openings. Their tapered push-fit design helps create a water, oil and dust resistant barrier, making them suitable for enclosures, equipment housings and outdoor installations where a standard plastic blanking plug may not provide enough sealing performance.
Common Applications
- Sealing unused cable entry holes in electrical cabinets
- Protecting round openings on control panels
- Blanking spare apertures in machinery housings
- Reducing water and dust ingress during outdoor use

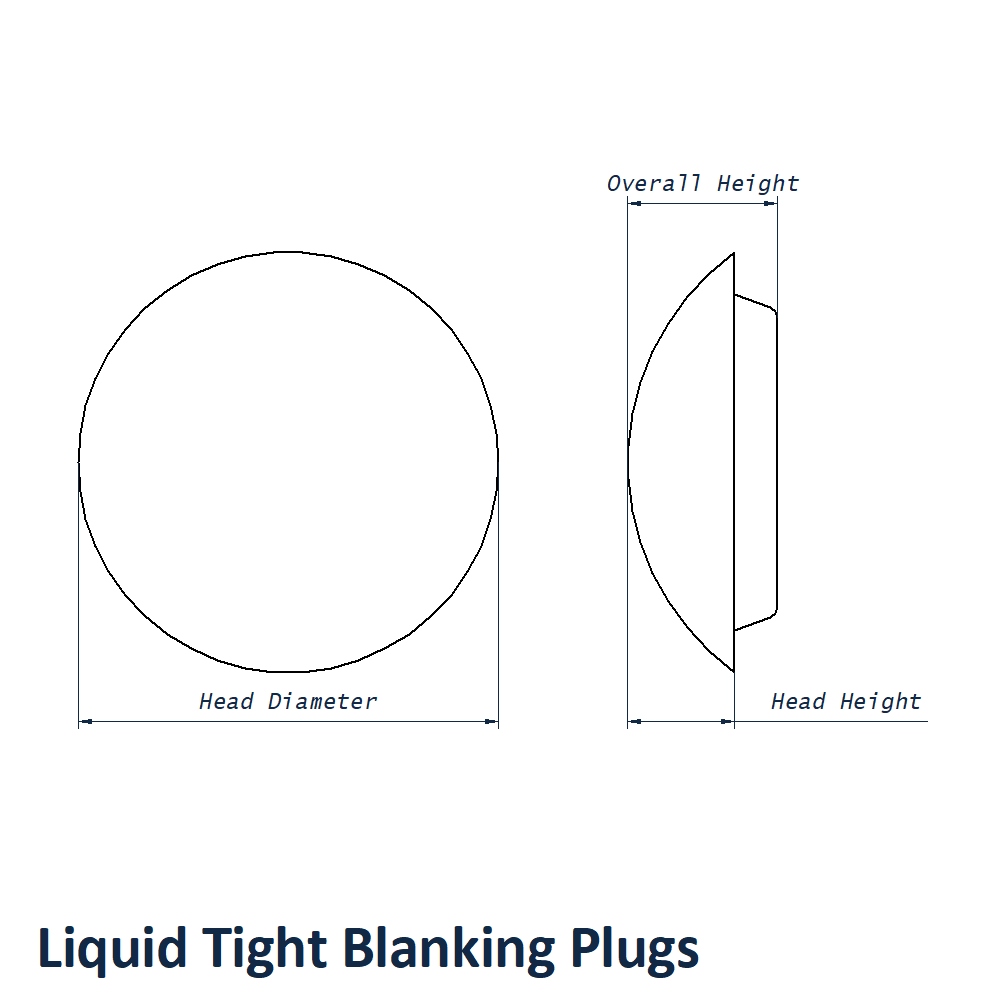

12.7mm Black Liquid Tight Blanking Plug Dimensions
- Mounting Hole Diameter: 12.7mm
- Head Diameter: 23.1mm
- Head Thickness: 7.4mm
- Shore Hardness: 85
- Colour: Black
- Overall Height: 11.4mm
- Panel Thickness: 3.2mm
- Material: TPE
- Flammability Rating: UL94 V-0
Liquid Tight Sealing Support
For more sealing sizes and panel closure options, view our full Liquid Tight Blanking Plugs range. These plugs are commonly selected for projects that need a quick-fitting sealing component for unused holes in electrical, automotive, marine and industrial equipment.
Product Support and Trade Orders
For help checking mounting hole size, panel thickness or suitability for larger project quantities, speak with the Vital Parts team on 01233 713581. Our team can help with product guidance, samples where available and support for repeat trade requirements.
