22.2mm Liquid Tight Blanking Plug - 3.2mm Panel | TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.37 | £1.64 |
| 250 - 499 | £1.30 | £1.56 |
| 500 - 999 | £1.14 | £1.37 |
| 1000 - 2499 | £1.00 | £1.20 |
| 2500 + | £0.90 | £1.08 |
Product Specification
| Mounting Hole Diameter | 22.2mm |
| Panel Thickness | 3.2mm |
| Material | TPE |
| Head Diameter | 32.5mm |
| Shore Hardness | 75 |
| Head Thickness | 9.1mm |
| Overall Height | 13.5mm |
| Flammability Rating | UL94 V-0 |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00

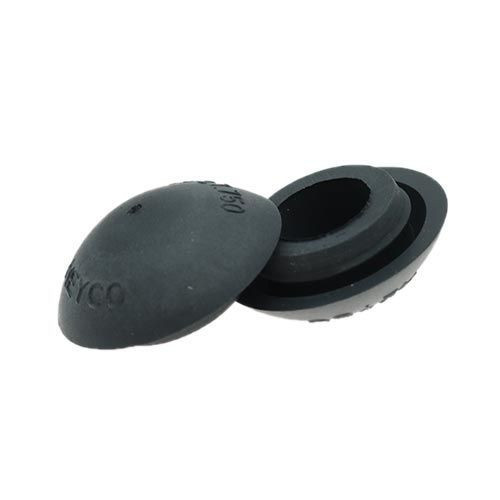

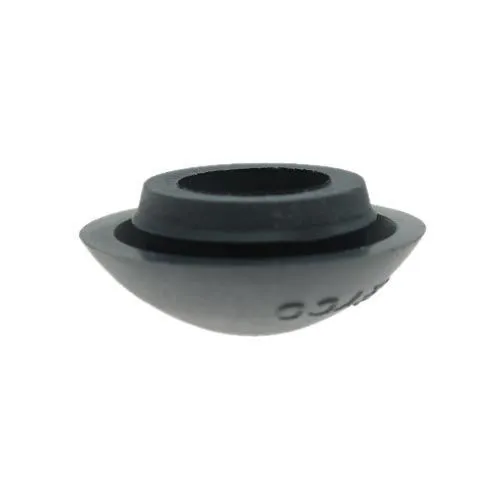

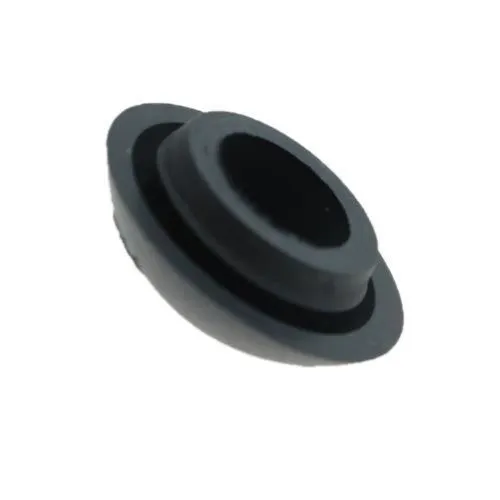

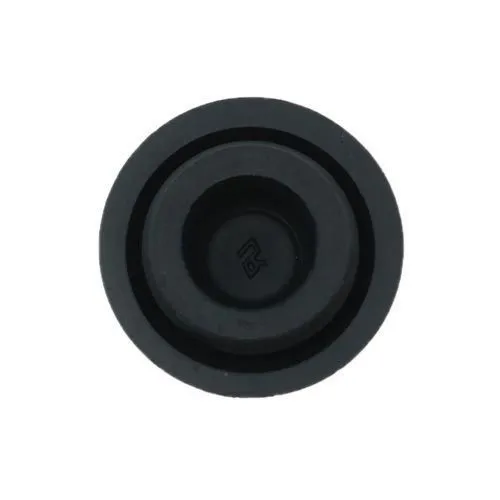

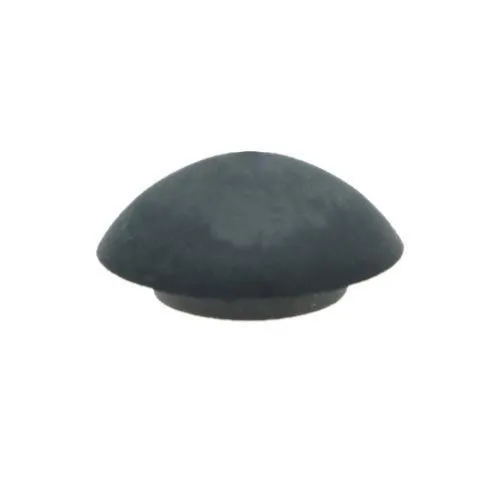

22.2mm Black Liquid Tight Blanking Plug | 3.2mm Panel | TPE
Frequently specified for maintenance and repair, this black soft TPE blanking plug is made to close 22.2mm mounting holes while helping protect against water, oil, dust and debris. The 3.2mm panel fit and 13.5mm overall height make it well suited to service access openings.
The liquid tight design helps reduce the risk of dirt, splash, oil and moisture entering through unused panel openings. This SKU is built around easier removal during servicing, with UL94 V-0 flammability performance and a temperature-capable material used across liquid tight blanking plug applications.
What Are Liquid Tight Blanking Plugs?
Liquid tight blanking plugs are flexible sealing plugs used to close unused panel holes, cable entry points and access openings. Their tapered push-fit design helps create a water, oil and dust resistant barrier, making them suitable for enclosures, equipment housings and outdoor installations where a standard plastic blanking plug may not provide enough sealing performance.
Common Applications
- Blanking holes that may need future access
- Protecting service openings during maintenance
- Sealing panel apertures on repair jobs
- Supporting flexible component replacement

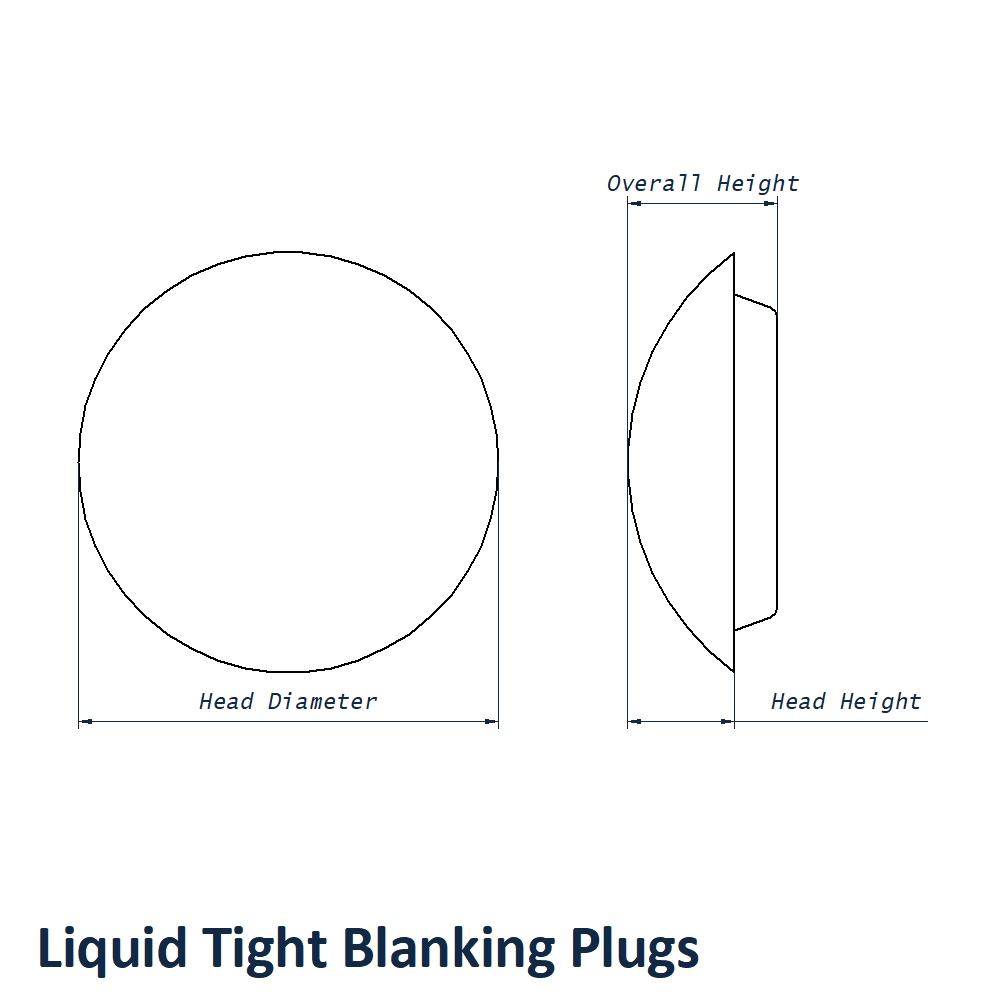

22.2mm Black Liquid Tight Blanking Plug Dimensions
- Mounting Hole Diameter: 22.2mm
- Head Diameter: 32.5mm
- Head Thickness: 9.1mm
- Shore Hardness: 75
- Colour: Black
- Overall Height: 13.5mm
- Panel Thickness: 3.2mm
- Material: TPE
- Flammability Rating: UL94 V-0
Liquid Tight Sealing Support
For more sealing sizes and panel closure options, view our full Liquid Tight Blanking Plugs range. These plugs are commonly selected for projects that need a quick-fitting sealing component for unused holes in electrical, automotive, marine and industrial equipment.
Product Support and Trade Orders
For help checking mounting hole size, panel thickness or suitability for larger project quantities, speak with the Vital Parts team on 01233 713581. Our team can help with product guidance, samples where available and support for repeat trade requirements.
