22.2mm Liquid Tight Blanking Plug - 3.2mm Panel | TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 499 | £3.36 | £4.03 |
| 500 - 999 | £2.24 | £2.69 |
| 1000 - 4999 | £1.34 | £1.61 |
| 5000 - 9999 | £1.20 | £1.44 |
| 10000 + | £1.12 | £1.34 |
£4.03 / each
Product Specification
| Mounting Hole Diameter | 22.2mm |
| Panel Thickness | 3.2mm |
| Material | TPE |
| Head Diameter | 32.5mm |
| Shore Hardness | 75 |
| Head Thickness | 9.1mm |
| Overall Height | 13.5mm |
| Flammability Rating | UL94 V-0 |
| Colour | Grey |
Frequently Bought Together
23mm Self Sealing Grommet IP67 – Conical – 10-14mm Cable (1-4mm Panel) | Light Grey EPDM
Total Price: £0.00

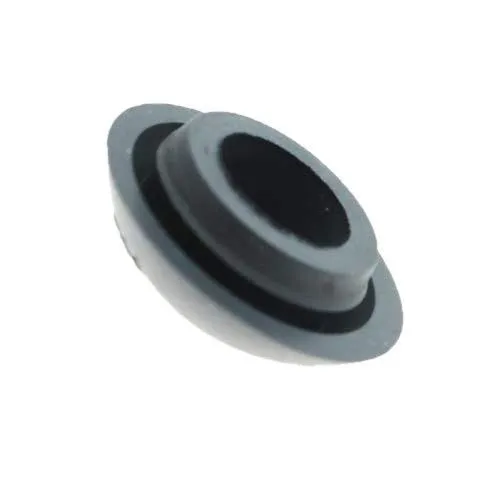

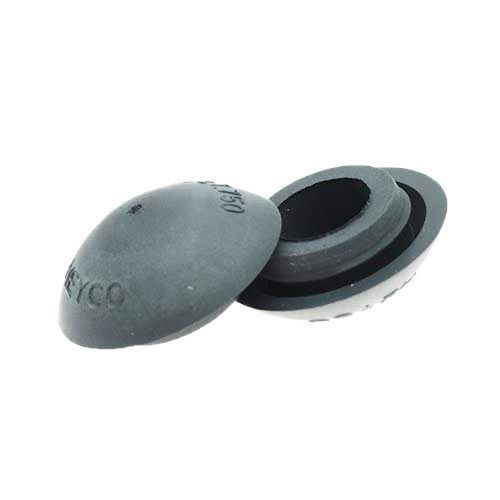

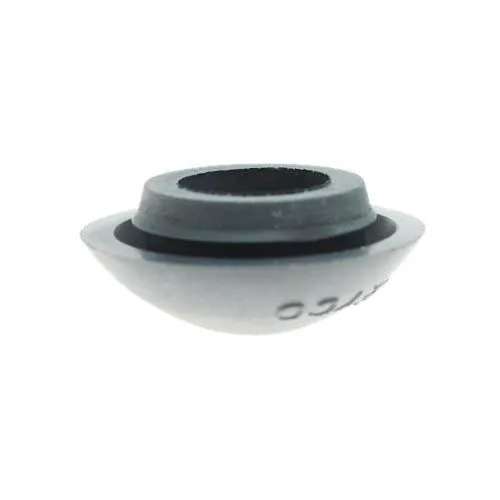

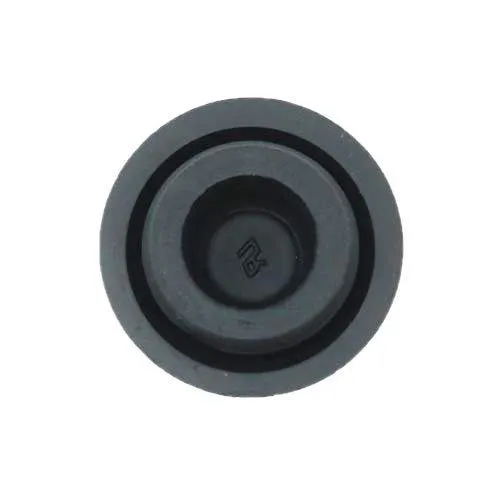

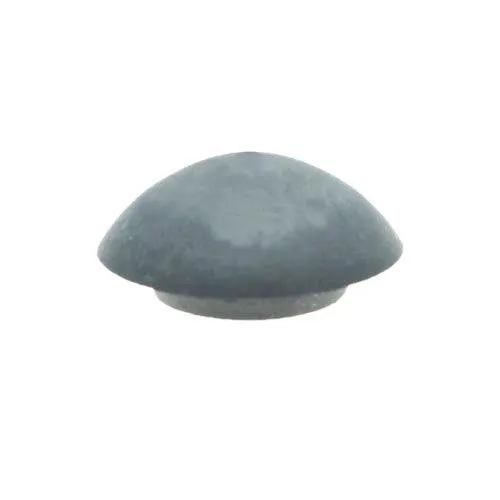

22.2mm Grey Liquid Tight Blanking Plug | 3.2mm Panel | TPE
Designed for 22.2mm mounting holes, this grey grey liquid tight plug provides a flexible TPE seal for visible enclosure openings. The 32.5mm head diameter and 13.5mm overall height give clear coverage over the panel face, making it suitable for commercial equipment where unused holes need dependable protection.
The colour and material specification helps match the plug to visible equipment surfaces while retaining a practical sealing function. This SKU is built around colour-matched panel finishing, with UL94 V-0 flammability performance and a temperature-capable material used across liquid tight blanking plug applications.
What Are Liquid Tight Blanking Plugs?
Liquid tight blanking plugs are flexible sealing plugs used to close unused panel holes, cable entry points and access openings. Their tapered push-fit design helps create a water, oil and dust resistant barrier, making them suitable for enclosures, equipment housings and outdoor installations where a standard plastic blanking plug may not provide enough sealing performance.
Common Applications
- Finishing grey cabinets and visible control panels
- Sealing unused holes on commercial enclosures
- Protecting panel cut-outs from dirt and splash
- Supporting OEM equipment builds with a cleaner finish

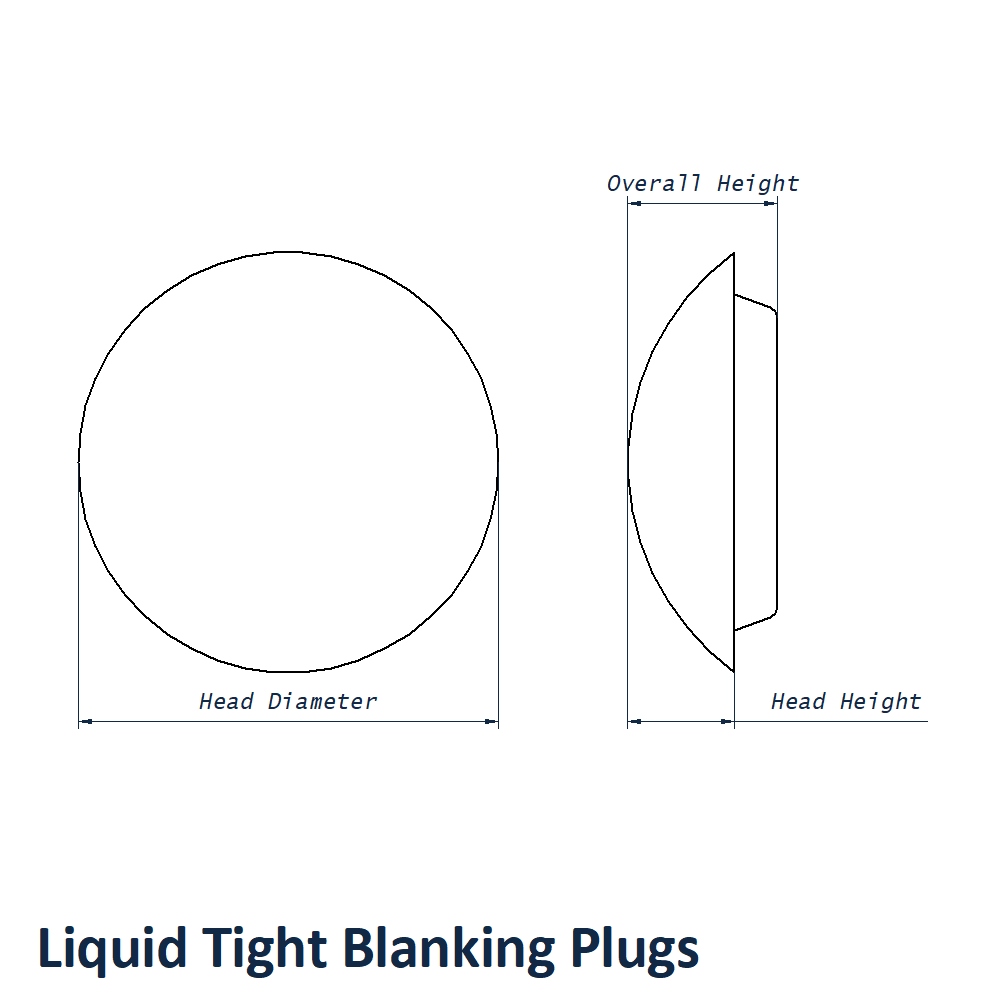

22.2mm Grey Liquid Tight Blanking Plug Dimensions
- Mounting Hole Diameter: 22.2mm
- Head Diameter: 32.5mm
- Head Thickness: 9.1mm
- Shore Hardness: 75
- Colour: Grey
- Overall Height: 13.5mm
- Panel Thickness: 3.2mm
- Material: TPE
- Flammability Rating: UL94 V-0
Liquid Tight Sealing Support
For more sealing sizes and panel closure options, view our full Liquid Tight Blanking Plugs range. These plugs are commonly selected for projects that need a quick-fitting sealing component for unused holes in electrical, automotive, marine and industrial equipment.
Product Support and Trade Orders
For help checking mounting hole size, panel thickness or suitability for larger project quantities, speak with the Vital Parts team on 01233 713581. Our team can help with product guidance, samples where available and support for repeat trade requirements.
