Lock Position Index Plungers - IND010
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £5.10 | £6.12 |
| 25 - 49 | £4.89 | £5.87 |
| 50 - 99 | £4.70 | £5.64 |
| 100 - 499 | £4.51 | £5.41 |
| 500 + | £4.16 | £4.99 |
Product Stock

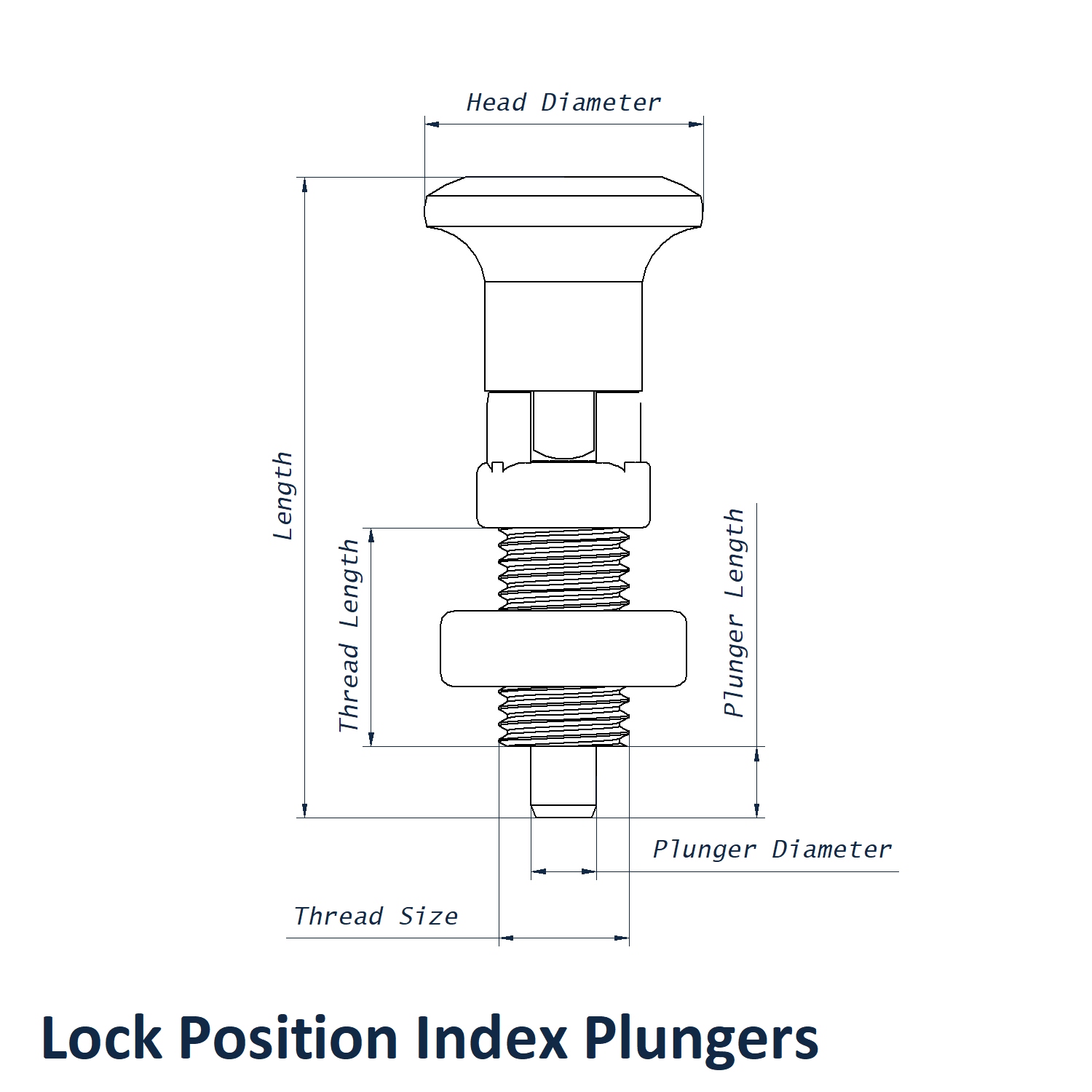

| Product Specifications | IND010 |
|---|---|
| Head Diameter | 21mm |
| Thread Size | M10 x 1.0mm |
| Plunger Diameter | 5mm |
| Length | 51mm |
| Material | Blackened Steel |
| Locking Rest Position | Yes |
| Force For Full Retraction | 25N |
| Initiating Force | 8N |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

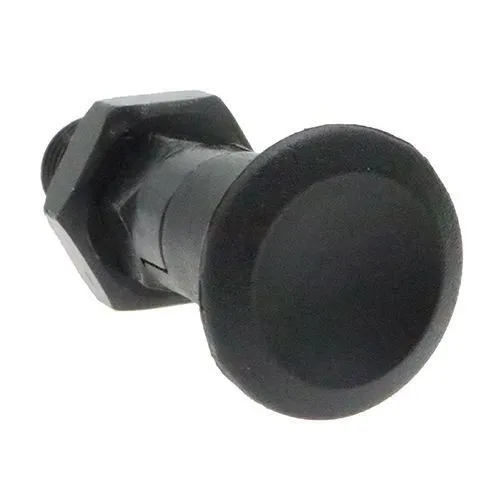

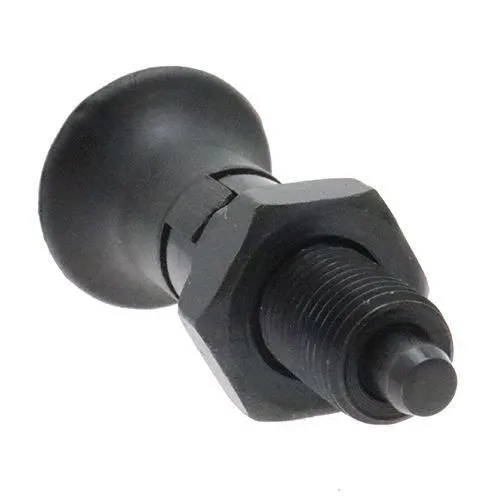

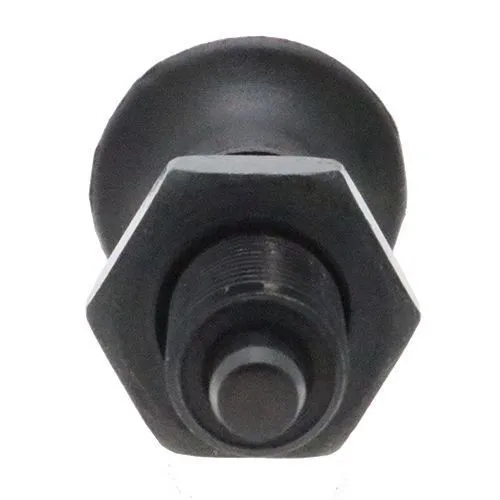

This lock position index plunger has a length of 51mm and a head diameter of 21mm. It has a M10 x 1mm thread size and a 5mm plunger diameter. It is constructed from Burnished Steel.
Lock Position Index Plungers are spring loaded plungers with a 90° locking rest position, available in burnished steel or stainless steel and thermoplastic. They are commonly used in heavy duty applications to fix or position an object, such as panel catches for appliance doors.
The threaded body allows for flexibility in choosing the right size, with options ranging from M10-M16 and head diameters from 21mm to 31mm. They are a reliable choice for manufacturers during production and provide a quality locking mechanism.
These spring plungers are also commonly used as positioning elements and locking mechanisms.
