M6 x 22.0mm NoGo™ Security Nut Cap (Open) | Mild Steel Bright Zinc Plated
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.11 | £0.13 |
| 100 - 999 | £0.09 | £0.11 |
| 1000 + | £0.07 | £0.08 |
Product Specification
| Size | M6 |
| Bolt Hole Diameter | 6.4mm |
| Height | 13.0mm |
| Inside Diameter | 15.0mm |
| Material | Mild Steel BZP |
| Outside Diameter | 22.0mm |
| Style | Open |
Frequently Bought Together
Total Price: £0.00
M6 x 22mm NoGo™ Security Nut Cap (Open) | Mild Steel BZP | Vital Parts - NOGO-M6-ON-BZP

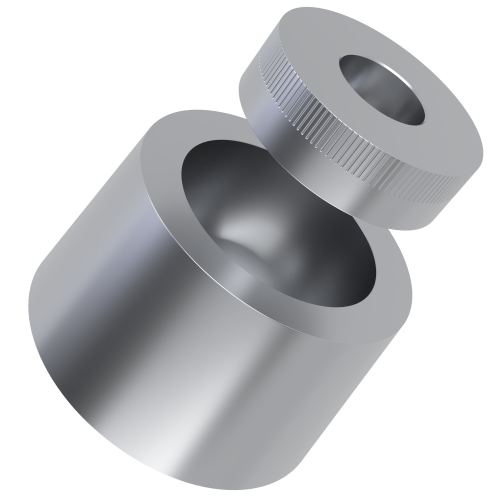

Our M6 x 22mm NoGo™ Security Nut Cap in an open style is designed for M6 fixings where the bolt or stud thread projects beyond the nut. Manufactured from Mild Steel Bright Zinc Plated, it features a 6.4mm bolt hole, 15mm inside diameter and 13mm height. The central opening maintains clearance for the protruding thread while the surrounding enclosure reduces access to the nut, creating a permanent anti-tamper finish without cutting the stud flush.
What Are Open NoGo™ Security Nut Caps?
Open NoGo™ security nut caps are permanent two-part enclosures developed for nuts fitted on projecting bolts or studs. The base is assembled with the fixing, then the open insert is hammered into position around the exposed thread. This central clearance allows the thread to remain in place while the nut is shielded from conventional tools.
Common Applications
- Instrument Housings: Fits over M6 nuts while allowing protruding thread to remain exposed on control boxes and small equipment housings.
- Mounting Brackets: Provides anti-tamper protection around threaded studs used to secure light-duty brackets and supports.
- Public Signage: Suitable for signs and information panels where the fixing includes a projecting M6 thread.
- Security Electronics: Helps protect nuts on camera, sensor and alarm installations without requiring the stud to be cut flush.

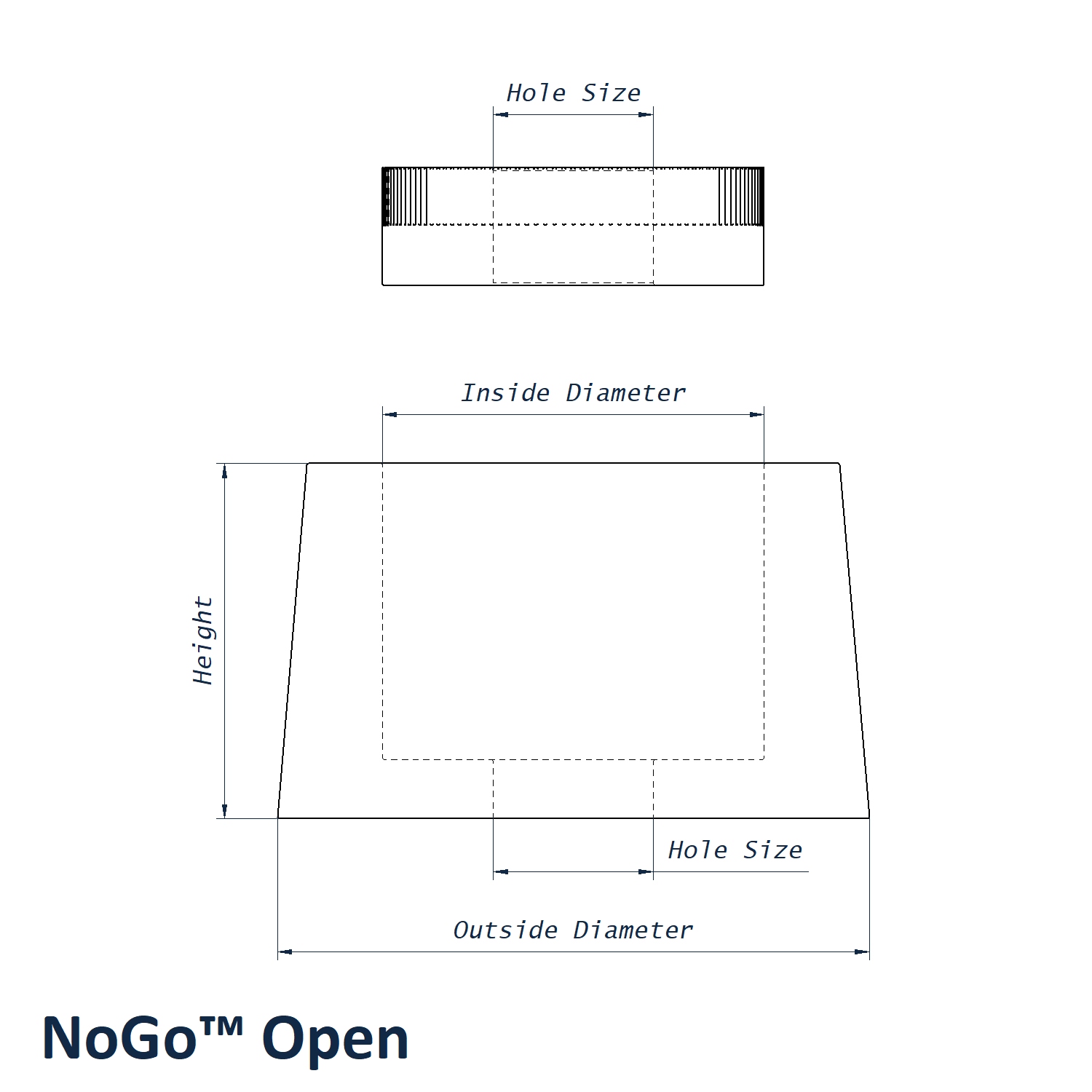

M6 x 22mm Open NoGo™ Security Nut Cap Dimensions
- Size: M6
- Bolt Hole Diameter: 6.4mm
- Inside Diameter: 15mm
- Outside Diameter: 22mm
- Height: 13mm
- Style: Open
- Material: Mild Steel BZP
Explore our Secure Nut & Bolt Caps range for additional tamper-resistant covers and fastening protection options.
