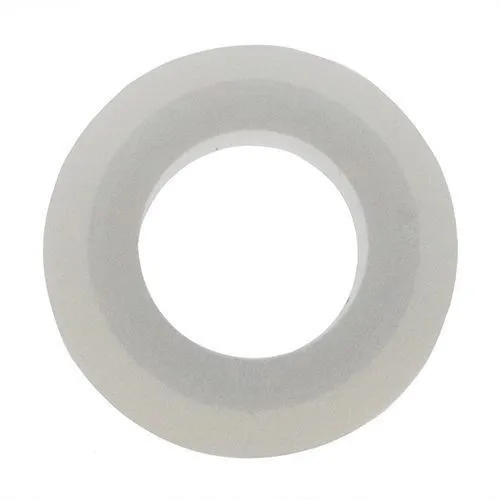

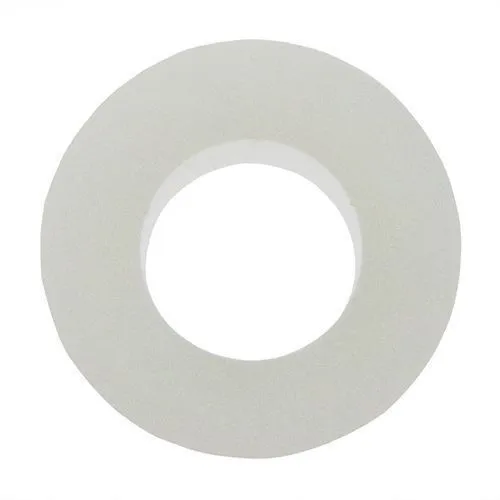

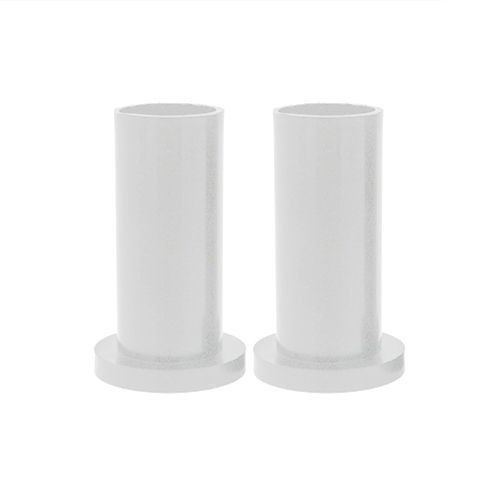

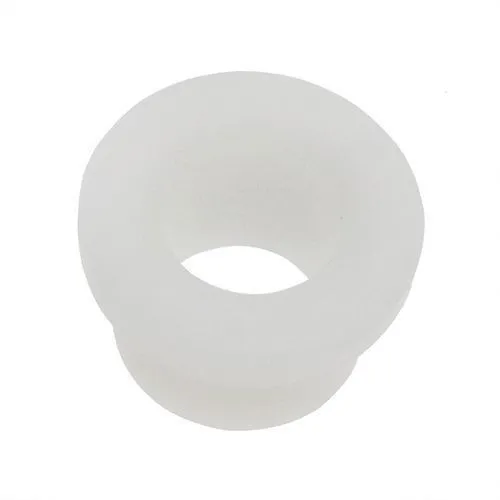

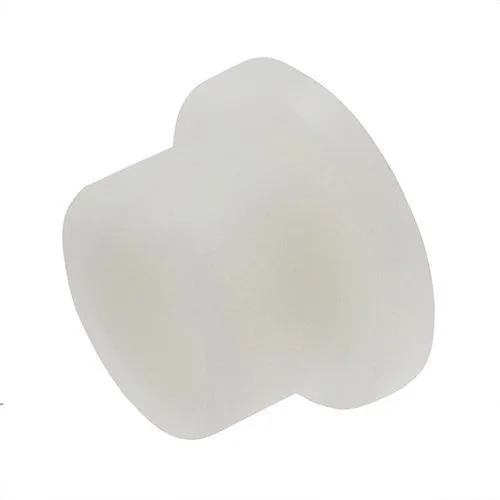

10.2 x 10 mm Natural Nylon Flanged Bushing
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.23 | £0.27 |
| 25 - 49 | £0.20 | £0.24 |
| 50 - 99 | £0.17 | £0.21 |
| 100 - 249 | £0.15 | £0.18 |
| 250 - 499 | £0.13 | £0.16 |
| 500 - 999 | £0.12 | £0.14 |
| 1000 + | £0.10 | £0.12 |
Product Specification
| Internal Diameter | 10.2mm |
| Outside Diameter | 14.9mm |
| Flange Diameter | 19.8mm |
| Shaft Length | 7.4mm |
| Colour | Natural |
| Flange Thickness | 2.6mm |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00
10.2mm ID x 14.9mm OD x 7.4mm Shaft Length x 19.8mm Flange Flanged Nylon Bush | Natural Nylon
Designed for accurate spacing through metal panels and fabricated brackets, this 10.2mm ID flanged nylon bush has a 10.2mm internal diameter, 14.9mm outside diameter, 7.4mm shaft length and 19.8mm flange diameter. The natural finish and polyamide nylon body make it suitable for electrical enclosure work where a neat, non-metallic spacing component is required.
The top-hat flange helps spread contact around the hole edge, while the sleeve section provides separation through the bore. It can be used as one of the range's flanged bushes, helping create spacing without introducing a conductive metal part.
What Are Flanged Nylon Bushes?
Flanged nylon bushes are top-hat shaped plastic components used to line a hole, space components apart or insulate a fixing from the surrounding material. In this size, the 10.2mm internal diameter supports the pass-through or fixing, while the 19.8mm flange helps cover the surrounding face of the hole.
Common Applications
- Electrical enclosure screw isolation
- Control panel cable or wire pass-throughs
- Sheet metal bracket spacing
- OEM equipment panel assemblies
10.2mm ID x 14.9mm OD x 7.4mm Shaft Length Natural Nylon Bush Dimensions
- Internal Diameter: 10.2mm
- Outside Diameter: 14.9mm
- Flange Diameter: 19.8mm
- Shaft Length: 7.4mm
- Flange Thickness: 2.6mm
- Colour: Natural
- Material: Polyamide
Nylon Bush Size Selection
Use the full range page to compare internal diameter, outside diameter, flange diameter and shaft length before selecting a bush for your panel or fixing assembly. View our full Nylon Bushes - Natural range.
Product Support and Trade Orders
For help checking nylon bush sizing, flange clearance or bulk requirements, speak with the Vital Parts team on 01233 713581. We can help with product guidance, samples where available and support for repeat trade orders.
