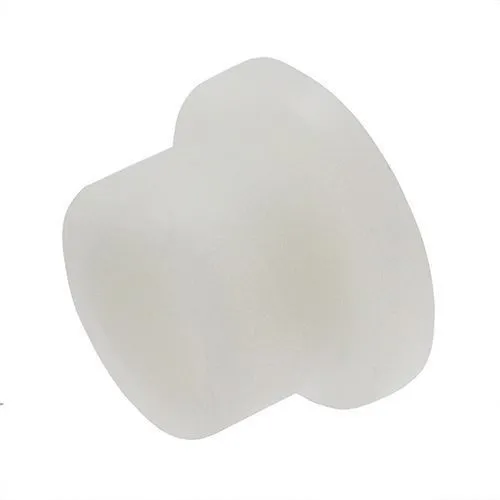

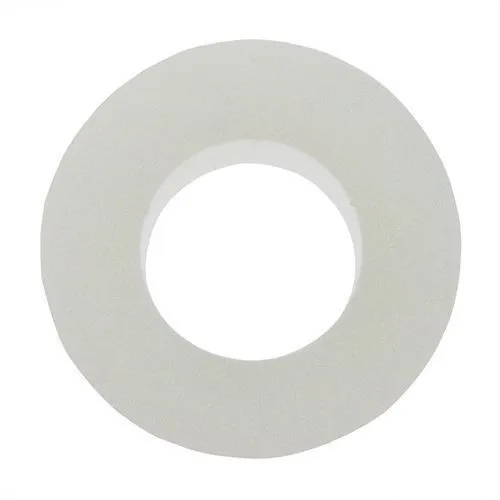

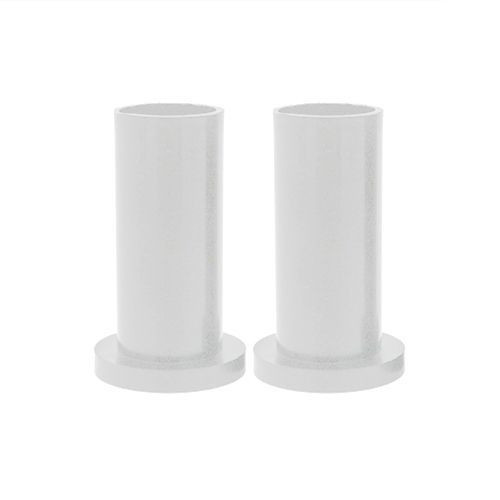

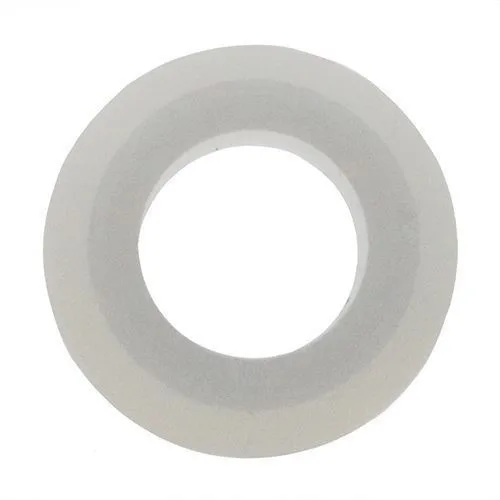

4.3 x 5 mm Natural Nylon Flanged Bushing
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.19 | £0.23 |
| 25 - 49 | £0.17 | £0.21 |
| 50 - 99 | £0.15 | £0.18 |
| 100 - 249 | £0.13 | £0.16 |
| 250 - 499 | £0.12 | £0.14 |
| 500 - 999 | £0.10 | £0.12 |
| 1000 + | £0.09 | £0.11 |
Product Specification
| Internal Diameter | 4.3mm |
| Outside Diameter | 6.7mm |
| Flange Diameter | 12.2mm |
| Shaft Length | 3.7mm |
| Colour | Natural |
| Flange Thickness | 1.3mm |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00
4.3mm ID x 6.7mm OD x 3.7mm Shaft Length x 12.2mm Flange Flanged Nylon Bush | Natural Nylon
When a fixing point needs separation rather than a bare hole, this 4.3mm ID flanged nylon bushing offers a practical natural nylon option. The 4.3mm ID, 6.7mm OD, 3.7mm shaft length and 12.2mm flange suit machine screws, light shafts, cable runs and panel fixings in commercial equipment.
Its natural nylon construction offers a light, non-corrosive and non-conductive alternative to a metal spacer in suitable assemblies. This makes it suitable for bush flange components and similar nylon bushes where a non-metallic interface is preferred.
What Are Flanged Nylon Bushes?
Plastic bushings are used where a non-metallic bearing surface, spacer or insulating sleeve is needed around a screw, shaft, cable or pin. In this size, the 4.3mm internal diameter supports the pass-through or fixing, while the 12.2mm flange helps cover the surrounding face of the hole.
Common Applications
- Construction hardware assemblies
- Metal cover plate spacing
- Control cabinet fixing holes
- Non-conductive fastening layouts

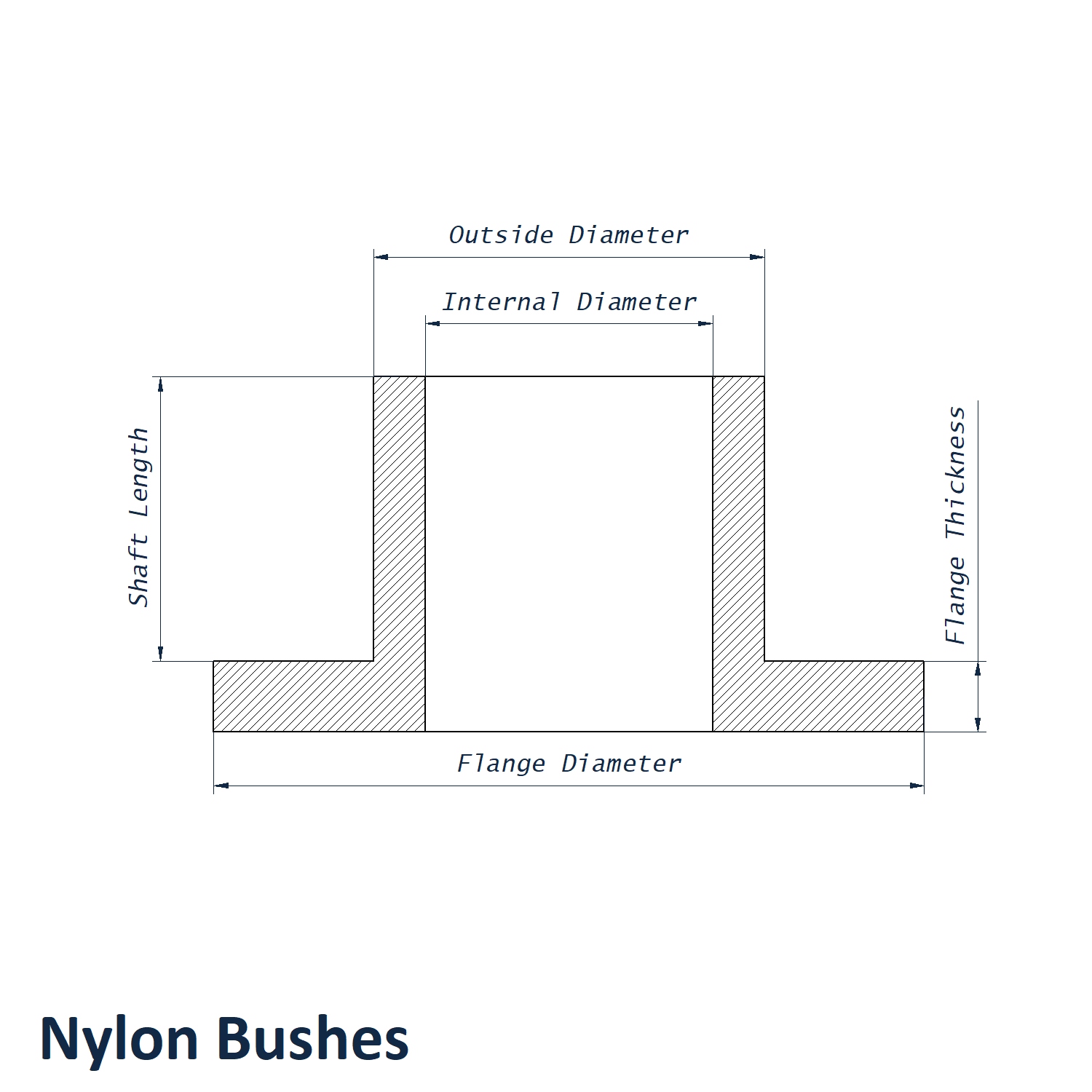

4.3mm ID x 6.7mm OD x 3.7mm Shaft Length Natural Nylon Bush Dimensions
- Internal Diameter: 4.3mm
- Outside Diameter: 6.7mm
- Flange Diameter: 12.2mm
- Shaft Length: 3.7mm
- Flange Thickness: 1.3mm
- Colour: Natural
- Material: Polyamide
Nylon Bush Size Selection
When choosing between nylon bushes, check the bore, outside diameter and flange size against the mating part and the available panel space. View our full Nylon Bushes - Natural range.
Product Support and Trade Orders
For production runs, maintenance spares or help identifying the right plastic bushing size, speak with our technical sales team on 01233 713581. We can support trade buyers with practical product advice.
